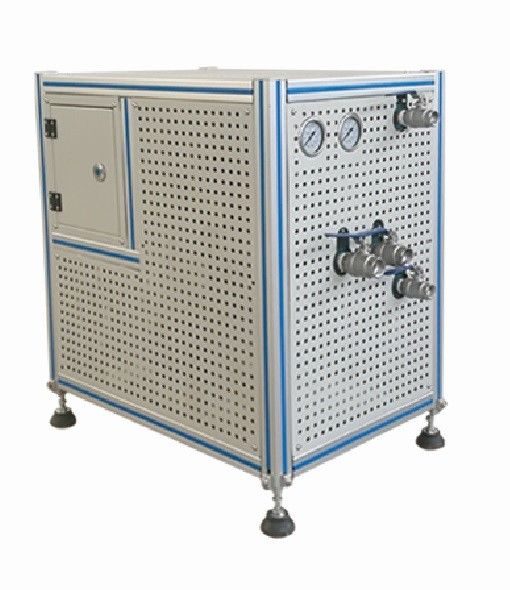

1000W Air Cooled Scroll Chiller

1000W Air Cooled Scroll Chiller
1000W Air Cooled Scroll Chiller

Large Image :  1000W Air Cooled Scroll Chiller

Product Details:
Place of Origin: China Luoyang
Brand Name: SL
Certification: CMC
Model Number: SLOT-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 5000 -12000 dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10 sets per month

1000W Air Cooled Scroll Chiller

Description
Flow: 10L/min Temperature Control Accuracy: ±1℃
Flow Measurement Accuracy: 0.5%FS Heating Power: 1KW
Supply Pressure: 0.1-3Bar Service Temperature: -20to45℃
Oil Temperature Control Range: 20-140℃ Communication Mode: RS485/0-10V
High Light:

RS485 air cooled scroll chiller

,

1000W air cooled scroll chiller

,

1000W air cooled screw chiller

SLOT 10L/min ±1℃ With Flow Measurement and Heating Lubricating Oil Conditioning



Overview



The oil conditioning system SeeLong SLOT conditions the engine or transmission lube oil temperature and oil supply pressure to a pre-definable set value and keeps it within a certain tolerance at steady state and dynamic operation of the unit under test UUT. The effective temperature value can be taken at the device or preferably at the UUT.

The effective pressure value must be taken at the UUT. Electrical heating is incorporated for preheating the lube oil and better control dynamics in transient operation.



Main functions :

  • Water / oil cooling constant temperature system: the circulating oil temperature is reduced to the set value through the heat exchanger and sent to the engine for use.
  • Control of proportional control valve: the heat exchange power can be changed and controlled by adjusting the outlet flow of cooling water, so as to ensure the constant temperature of engine oil fed into the engine and meet the test requirements.
  • Constant temperature system: the thermostatic device takes oil from the oil filter and returns to the main oil duct through cold and hot exchange.

Structure of SLOT oil temperature control device



The device adopts closed cycle structure, the heat exchanger adopts plate heat exchanger, which has excellent response speed and cooling effect; PLC microcomputer control can facilitate the setting and display of temperature (sharing PLC with coolant temperature control).

The oil thermostatic device is mainly composed of plate heat exchanger, Siemens control valve assembly, control valve, sensor, stainless steel pipe and PLC control.



Control principle



The PID control is carried out by an external system.( e.g. SeeLong SLOT). The temperature control is performed by a mixing valve (heat exchanger/electrical heating). The supply pressure control is handled by a control valve in the bypass between the supply and return lines to and from the unit.



Benefits at a glance



  • ​Stainless steel tubing avoids dissociation of rust particles and guarantees long service life
  • High control accuracy and dynamics increase the testbed efficiency
  • Faster control response thanks to primary controlled oil circuit
  • he compact design enables installation close to the unit under test (engine or transmission) and, therefore, keeps the external oil volume small
  • Flexible in applications due to several connection modes, such as connection to the oil sump or to the oil



FAQ



Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
