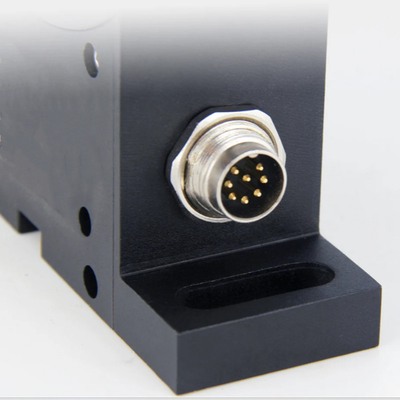

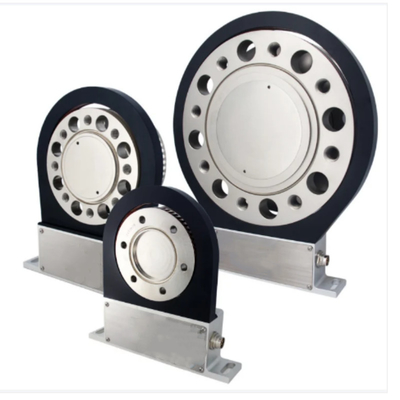

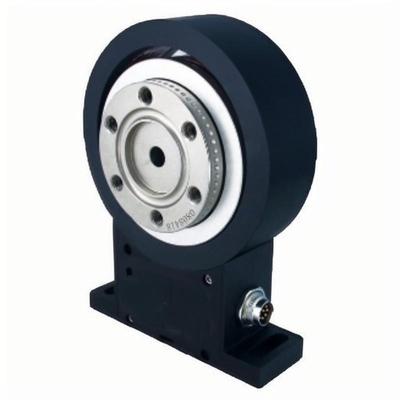

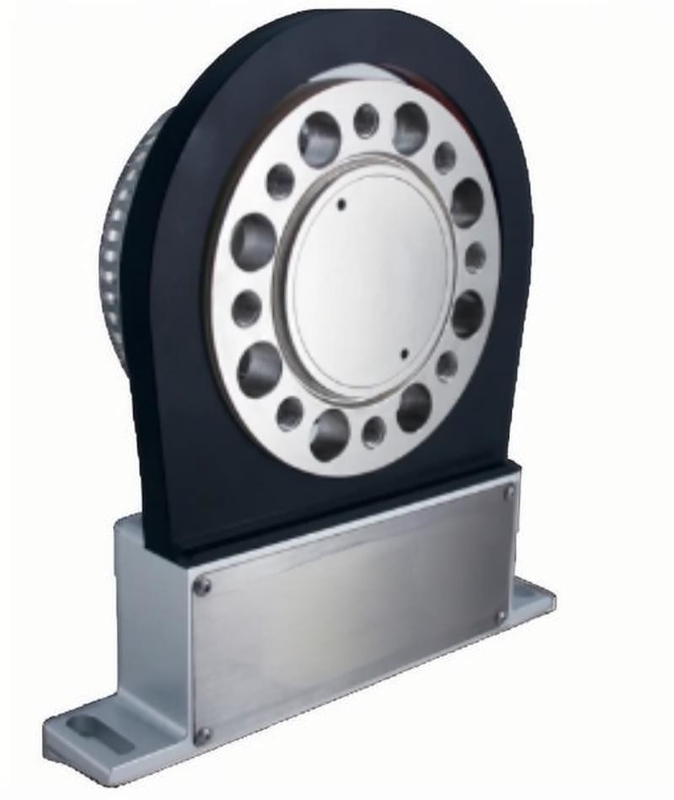

SLFN-665 High Accuracy Strong Anodized Aluminum Housing Torque Sensor
Product overview
SLFN-665 strain flange torque sensor with built-in digital measurement signal processing unit, outputs the data directly as a standard analog or digital signal via contactless transmission. The rotor rotates in the stator ring, and no mechanical bearings are allowed to be used, so there is no wear.
Main features
High precision measurement: SLFN-665 strain flange torque sensor with built-in digital measurement signal processing unit, through the non-contact transmission, outputs the data directly as a standard analog or digital signal. Its accuracy level can be selected from 0.5%, 0.25% or 0. 1%.
Dust-proof and moisture-proof: The sensor is equipped with a high-precision magnetoelectric angle/rotational speed measurement unit, which has the function of dust-proof and moisture-proof.
Multi-function interface: The sensor parameter identification, setup, measurement and zero balancing can be realized through the RS-232C interface.

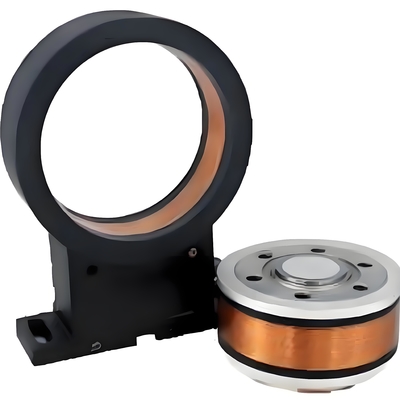

Bearingless design: The rotor rotates in the stator ring, and no mechanical bearings are allowed to be used, so there is no wear.
Digital non-contact signal transmission: the sensor adopts digital non-contact signal transmission to ensure the stability and accuracy of data transmission.
System self-check function: the sensor has the system self-check function to ensure the normal operation of the equipment and the accuracy of the data.
| Items |
Parameters |
| Range |
50Nm ... 3000000 Nm |
| Overload capability |
150% |
| Output signal |
0±10V; 5-15KHZ; 4-20mA; RS485 |
| Accuracy level |
Standard: ±0.5% FS;
Optional: ±0.2% FS
|
| Excitation Voltage |
24VDC |
| Operating speed |
0-10000 RPM |
| Response frequency |
1ms (high response speed is optional) |
| Insulation resistance |
> 2000MΩ |
| Zero drift |
±0.2% FS |
| Zeroing error |
±0.1% FS |
| Ambient temperature |
-10-60 ℃ |
| Relative humidity |
< 90%RH |
| Operating temperature range |
0-60 ℃ |
| Storage temperature range |
-25-80 ℃ |
| Response time of dynamic strain wave of strain gauge |
3.2 X10-6s |
| Sensor housing |
Strong anodized aluminum |
Company Profile
Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech enterprise specializing in equipment measurement, control, design, manufacturing, and sales services for power engineering systems in various fields such as aerospace, automotive, and new energy; The company is located in the beautiful peony city of Luoyang.
Seelong specializes in the research and development, production, and service of testing equipment for new energy motors, hybrid power systems, engines, transmissions, and more. The main products include electric dynamometer, measurement and control system, DC power supply, and condition guarantee system. Seelong has a complete sales and service system, adhering to the business philosophy of quality survival and service development, providing users with various types of power engineering measurement and control solutions in various fields.
Seelong's advanced design philosophy and rich industry experience give the company a technological Advantages ahead of competitors in the same industry, and the company's products can better meet the actual market demand. Seelong is brave in innovation. While valuing its own technological breakthroughs and development, it has established long-term and in-depth cooperative relationships with multiple domestic research institutions such as Tsinghua University and Shandong University. It has passed CE certification, ISO9001 quality system certification, AAA level enterprise certification, obtained more than ten invention patents, and two software copyrights. It has provided professional equipment and services to more than a hundred users both domestically and internationally, The enterprise has won the trust of domestic and foreign customers with its cost-effective products and high-quality services, and has established a long-term win-win strategic partnership.
The company always adheres to the business philosophy of "taking technological innovation as its mission and quality service as its purpose", constantly surpassing the advanced level in the same industry, integrating into the world, measuring and controlling the future, and creating high-quality products. To provide customers with products and services with high intelligence, precision, speed, reliability, and added value.
All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd. warmly welcome sincere cooperation from domestic and foreign customers, and work together for the future and common development.
Company Certificates
Packaging and Shipping
FAQ
Q: What's the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q:How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What's your payment term?
A: Normally 40% T/T deposit, pay in full before shipment.
Q:What's the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors production cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q: Can I come to visit your factory?
A: Sure, you are always welcomed to have a visit.
