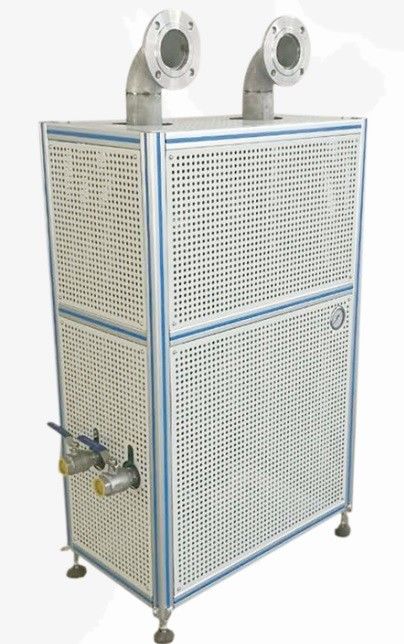

Steam Heating 1200m3/H CMC Air Cooled Water Chiller

Steam Heating 1200m3/H CMC Air Cooled Water Chiller
Steam Heating 1200m3/H CMC Air Cooled Water Chiller Steam Heating 1200m3/H CMC Air Cooled Water Chiller

Large Image :  Steam Heating 1200m3/H CMC Air Cooled Water Chiller

Product Details:
Place of Origin: China Luoyang
Brand Name: SL
Certification: CMC
Model Number: SLE5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 4500 - 7000 dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 10 sets per month

Steam Heating 1200m3/H CMC Air Cooled Water Chiller

Description
Air Flow: 1200~4800 M3/h Pressure Adjustment: 70~110kpa
Temperature Adjustment: 15~35℃ Humidity Adjustment: 30%~80%
High Light:

CMC Air Cooled Water Chiller

,

1200m3/H Air Cooled Water Chiller

,

1200m3/H chiller air conditioner

SL-Cell Intake Air Conditioning



Basic Performance



SL-CEIL Series VFC precise air conditioner is specially designed for engine intake air conditioning engine test cell. The patent technology and products are used, with the temperature control accuracy of ±0.5℃, humidity control accuracy of ±3%RH and pressure control accuracy of ±0.1kPa.




Control Principles



  • Pressure:Pressure is controlled by frequency conversion of the blower. The intake air conditions can be preset with usual setting of air flow rate at 20-30%. By using complete follow-up device to control the pressure, the control accuracy can be higher (<0.05kPa), faster in response time, than without it. It is with no lag, and suitable for the transcient control of intake air pressure in the engine ETC test.



  • Temperature:Controlled by an air heater which is either direct electrical heating or indirect electrical heating controlled by PWM or electric pulse control.



  • Humidity:Humidified by wet film and controlled by dew point control method.





Basic Parameters



Specification          KT1200            KT2400        KT3600        KT4800
Air Flow m3/h 1200 200 3600 4800
Pressure adjustment kPa 70~110KPa,精度Accuracy:± 0.1KPa
Temperature adjustment 15~35℃(选项option:15~70℃) ,精度Accuracy:±0.5℃
Humidity adjustment % 30%~80%,精度Accuracy:±3% RH
Adjustment time sec 压力Pressure:<1sec,温度Temperature:<30sec,湿度Humidity:<30sec
Dimension mm 3400×1000×1200 3400×1000×1200 3400×1000×1200 3400×1000×1200
Chilled Water Flow m3/h 6.64 13.32 20.00 26.68
                   Using steam heating and steam humidification (without blower)
Power consumption(blower excluded) KW 1.0 1.0 1.0 1.0

Steam consumption

for humidification



kg/h 61.65 122.97 138.36 245.88
Chilled water flow m3/h 6.64 13.32 20.00 26.68

Steam consumption

for heating



kg/h 65.11 130.05 194.97 259.87
Blow Power
(Intake air pressure):70-110kPa kW 16.67 33.35 50.02 66.69
(Intake air pressure):90-105kPa kW 4.17 8.34 12.5 16.67
Intake air pressure not controlled, open type kW 0.67 1.33 2.00 2.67





Parameter Description



No. Item Description
1 Section of Flow

The parameter selection of the intake air conditioner is based on the max. flow of the tested engine on the testbed, which is about 5-7 times of the engine power for the reciprocating piston engine, the upper boundary for diesel, the lower boundary for gasoline.



2 Section of Pressure

The pressure regulating range is usually set according to standard intake air condition normally 100kPa. Lower pressure is set only for plateau simulating, and some other tests, for example, in 3000m plateau, the atmospheric pressure may be 70kPa.



3 Section of temperature and relative humidity

Temperature and R. humidity are correlated and have relatively large influence with each other. They can be selected according to test standards, e.g. 25℃,50%.
