6000nm Dynamic Test System

6000nm Dynamic Test System
6000nm Dynamic Test System 6000nm Dynamic Test System 6000nm Dynamic Test System 6000nm Dynamic Test System

Large Image :  6000nm Dynamic Test System

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: TCX-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 40000- 450000dollar
Delivery Time: 10-12weeks
Payment Terms: T/T
Supply Ability: 1 PCS per month

6000nm Dynamic Test System

Input Torque: ≤6000Nm Output Torque: ≤30000Nm
Speed Test Accuracy: ± 1 Rpm Torque Test Accuracy: ± 0.5% FS
Speed Control Accuracy: 0.5% FS Torque Control Accuracy: 2% FS
High Light:

± 0.5% FS Dynamic Test System


6000nm Dynamic Test System


6000nm dynamic testing equipment

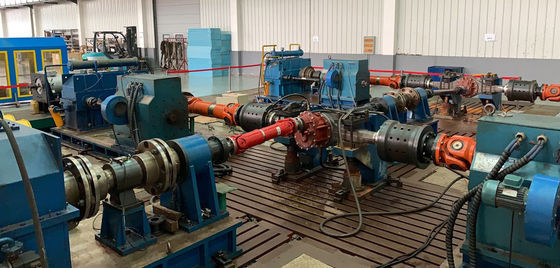

Commercial Vehicle Retarder (differential) Assembly Test System


Main functions and features:


On the basis of fully meeting the relevant test requirements, the plan also fully considered the advanced technology, accuracy, reliability and maintainability of the equipment.


1. High Efficiency and Energy Saving


Adopt advanced energy feedback technology to reduce energy consumption of equipment. High precision sensor and actuator are used to ensure the accuracy of measurement and control.


The equipment structure and material selection fully meet the test strength requirements; the key parts are of international first-class brand products; with perfect fault condition monitoring and automatic protection, the equipment operation is safe and reliable.


Using highly integrated and modular driving unit, operation unit and test unit, the whole system becomes a combination of modules, which makes the system easier to use, exchange, manage and maintain.


The control part of the test-bed is divided into manual control and computer control. The functions of the whole test-bed can be realized in both control modes. The test-bed has emergency stop function and automatic monitoring function. In the automatic monitoring state, when the parameters monitored by the test bench exceed the set value, the test bench will stop automatically and have the function of manual emergency stop button. For the fault alarm, the diagnosis results can be displayed on the control cabinet or computer, and the troubleshooting methods of common faults are introduced in the manual


2. Scope of Technical Application


QC / T 533-1999 test method for vehicle drive axle, eqct-470-2009 bench test method and evaluation index for limited slip differential assembly, as well as technical requirements and safety technical conditions of relevant national driving axle test equipment.


3. Main Technical Parameters of Test Bed


  • Maximum input torque: 6000Nm
  • Maximum output torque: 30000Nm (bilateral)
  • The maximum output speed is 150 rpm
  • The speed ratio range of drive axle is 1.3-6.5
  • Speed test accuracy: ± 1 rpm
  • Torque test accuracy: ± 0.5% FS
  • Speed control accuracy: 0.5% FS
  • Torque control accuracy: 2% FS
  • The energy recovery efficiency should be above 70% (full load operation)


4. Technical performance


The design of the control part of the test-bed follows the principle of modularization, which makes the control part of the test-bed simple, reliable and flexible; The test-bed can implement program loading, arbitrarily set the input, output speed, torque, speed difference between two wheels, test temperature ℃, current differential gear and other test parameters within the limited range, automatically complete the whole test process according to the set test program, and conduct real-time monitoring and recording of test data and graphics.


The control program for differential test can be compiled and modified separately, and the parameter setting is easy to understand. For the control and monitoring data (such as speed rpm, torque N.m, speed difference rpm, temperature ℃) in the control cabinet and computer can be real-time detection, display, record, and error prompt.


The test software should be able to set the test parameters through the user interface, allow users to customize, store and execute the test process, and real-time data acquisition. The computer screen can display all kinds of test data in real time, draw curves of time test force, loading torque locking coefficient, etc., and fully automatic data processing; The test data can be saved in a variety of file formats, and can be imported into word, Excel and other software for processing; The special test result data processing program can realize the functions of data retrieval, printing, etc. through the program, the test data can be exported to excel for analysis. Data acquisition and automatic control system can run for 200 hours continuously.


The test has the function of differential speed test. The speed difference between the two sides is from 0 to 100 rpm, which can be adjusted according to the test requirements; When the self-locking differential is tested, the torque on both sides can be measured and the self-locking coefficient curve can be drawn; For the ordinary differential, the torque and speed of the output end can be controlled to ensure the speed difference between the two sides and complete the differential life test.





Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
