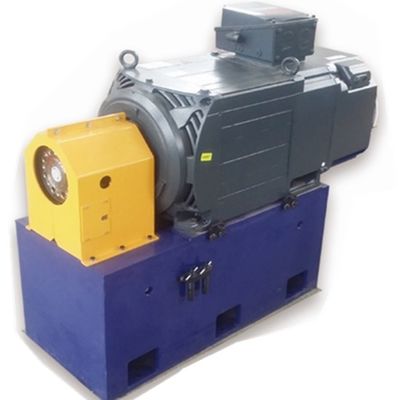

3300rpm +/- 0.2%FS Dyno Test Motor For Diesel Engine

3300rpm +/- 0.2%FS Dyno Test Motor For Diesel Engine
3300rpm +/- 0.2%FS Dyno Test Motor For Diesel Engine

Large Image :  3300rpm +/- 0.2%FS Dyno Test Motor For Diesel Engine

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SDHD-400/3300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 45999 dollar
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

3300rpm +/- 0.2%FS Dyno Test Motor For Diesel Engine

Model: SDHD-400/3300 Torque Range: 2849Nm
Speed Range: 0-3300rpm Speed Measurement Accuracy: ±1rpm
Torque Measurement Accuracy: 0.2%FS Temperature Measurement Accuracy: 0.5%FS
Power: 400KW
High Light:

+/- 0.2%FS dyno test motor


3300rpm dyno test motor


3300rpm marine dynamometer

SDHD 400-560KW 3300rpm ±0.2%FS AC Dynamometer for Heavy Duty Diesel Engine Test




Very high torques are possible with these electrical machines which optimally cover the power ranges of medium-size and heavy-duty diesel engines used in the commercial-vehicle industry. During the development of the SDHD/SDHD+ series, special importance was attached to testing. All machine types with associated system components were tested under extreme conditions. The result is a very powerful and robust system.



​Technical Parameter


  • Torque flange range (nm) :0-3000
  • Host model:SDHD - 400 / 3300-1350
  • Motor brand: Seelong
  • Rated power (kw) :400
  • Rated speed (RPM): 1350
  • Constant torque speed range (RPM): 0-1350
  • Constant power speed range (RPM): 1350-2800
  • Maximum speed (RPM) :3300
  • Rated torque (nm) :2827
  • Torque measuring device :Seelong
  • Accuracy class :± 0.2% FS
  • Encoder: heidenham, Germany
  • Encoder type: HTL / 1024



Examples for Possible Applications


  •  Steady-state engine testing
  •  Engine mapping
  •  Power measurement
  •  Durability testing
  •  Component testing
  •  Application tests for injection systems and ECU´s
  •  ECU calibration tests
  •  Rapid motion aging tests



Benefits at  a Glance


  • High quality, robust AC dynamometer with long wearing insulated bearings for minimal maintenance
  • State-of-the-art drive system with worldwide support
  • In-line torque flange for accurate torque measurement
  • Robust dual-scan optical encoder for accurate speed control of heavy-duty engine
  • Robust design allowing the connection of high overhung shaft loads, simplifying shaft selection
  • The SDHD 400 and SDHD 560 are available in liquid cooled version optionally​



Specifications(Can be customized)


Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
SDHD400 400 2829 1350 3300 0.2%FS
SDHD450 450 3183 1350 3300 0.2%FS
SDHD500 500 3536 1350 3300 0.2%FS
SDHD560 560 3961 1350 3300 0.2%FS
