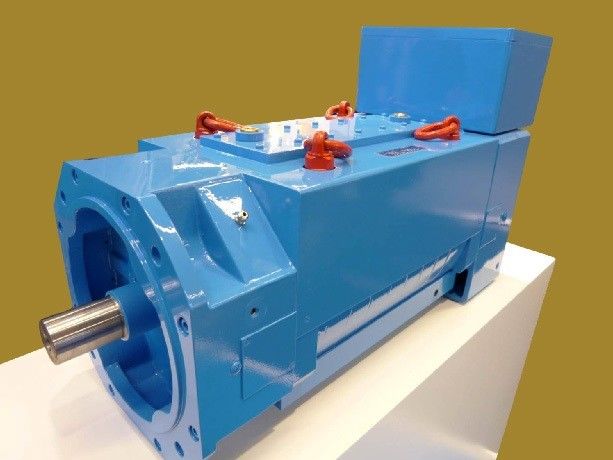

90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine

90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine
90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine 90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine 90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine 90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine

Large Image :  90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SGHG-90/9000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 14000 dollar
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

90KW 9000 Rpm Engine Test Dynamometer For Gasoline Engine

Description
Power: 90KW Torque Range: 286Nm
Speed Range: 9000rpm Speed Measurement Accuracy: 1rpm
Torque Measurement Accuracy: 0.2%FS Overload Capacity: 120%
Service Temperature: -20to45℃ Use Altitude: <2000m
High Light:

9000 Rpm Engine Test Dynamometer

,

90KW Engine Test Dynamometer

,

90KW motor dynamometer

SGHG 90-132KW 9000rpm 0.2%FS AC Dynamometer for Medium Gasoline Engine Test



Introduction to SGHG Series Dyno



SGHG series AC dynamometer is an indoor test system with high precision and high repeatability, whose main goal is to test the performance of heavy duty gasoline engine. Through the efficient control system, all test operations can be completed by computer control instructions. High speed data communication module makes the system have higher real-time performance. SGHG series dynamometer has the characteristics of low speed, high torque and high dynamic response.





Technical Parameter



  • Small size, easy installation;
  • Simple structure, easy operation and maintenance;
  • High braking moment;
  • High accuracy of measurement;
  • Work stably and reliably;
  • Achieving High Precision Instantaneous Speed Measurement with Magnetoelectric Velocity Sensor;
  • Fast Load Control of Electronically Controlled
  • Fast response, suitable for dynamic test





Benefits at a Glance



  • It can be used as loading equipment and prime mover. It can drive and absorb power in both directions of rotation, so it is convenient to center (motor suspension) during installation
  • Measurement accuracy: speed ± 1 R / min; torque ± 0.2% FS
  • Loading stability: constant torque loading stability is better than 0.2%, constant speed driving is better than 0.1%
  • Overload capacity: 150%
  • Excellent loading performance: constant torque loading can be maintained from zero speed to rated speed, and constant power loading can be maintained above rated speed.
  • Low moment of inertia and high overload capacity make the dynamometer have high dynamic response speed, the dynamic response speed is less than 5ms





System Matching and Application​​



The engine comprehensive performance test bench is mainly used to test the fuel consumption of the engine; output torque, output speed, output mechanical power; emissions, exhaust gas analysis; temperature rise, vibration, noise, etc. It can carry out type test and factory test to evaluate the comprehensive performance of the engine, and provide accurate parameter basis for engine development, production, maintenance and field application. The engine comprehensive performance test bench can test all kinds of diesel engines, gasoline engines, etc.

The test process can be loaded manually or automatically, the test results can generate customized test reports, curve charts, etc., the process data can be generated in Word, Excel, or PDF format files, and the data can be saved, edited, and printed. The test system interface is simple, easy to upgrade and maintain. The company trains the operating personnel free of charge to provide guidance for use and maintenance.

Users can choose test items according to specific requirements:





Specifications (Can be customized)





Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
SGHG90 90 286 3000 9000 0.2%FS
SGHG110 110 350 3000 9000 0.2%FS
SGHG120 120 382 3000 9000 0.2%FS
SGHG132 132 420 3000 9000 0.2%FS
Can be customized





FAQ



Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
