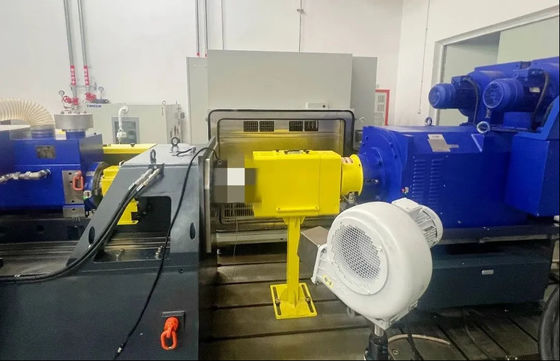

SSCH60-4000/15000 New Energy Motor Electric Dynamometer Test Bench Description

Under the trend of miniaturization and lightweighting of new energy vehicles, 60-kilowatt motors have become the core power source for urban logistics vehicles and small passenger cars. The 60-kilowatt new energy motor electric dynamometer test bench, providing all-round performance verification for motor research and development and production through precise working condition simulation and efficient data collection. ​

The new energy motor test bench is designed with a power of 60 kilowatts as its core. It can simulate typical conditions such as urban road congestion start-stop and suburban road cruise, and supports motor-electric/power generation bidirectional mode tests. When the motor is in an energy recovery state (such as downhill braking), the test bench can feed more than 85% of the regenerative power back to the grid, reducing the test's energy consumption and realistically recreating the vehicle's energy management scenario. ​

SSCH60-4000/15000 New Energy Motor Electric Dynamometer Test Bench Components

1. 60kW AC asynchronous electrical dynamometer

•

An air-cooled asynchronous motor, with a maximum torque of 500N · m (@1000r/min) and it is equiped with a torque sensor with ± 0.2%FS accuracy, it can dynamically simulate the load changes of frequent starts and stops of urban vehicles

•

With a two-level inverter, the switching frequency is 8kHz, enabling smooth speed adjustment from 0 to 15000r/min

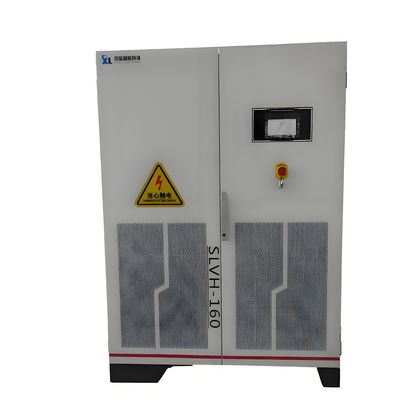

2. Unidirectional DC power system

•

Rated power 75kW, voltage regulation range 150-600V, supports constant voltage/constant current control mode

•

Built-in lead-acid battery simulation algorithm, which can reproduce the discharge characteristics of low-speed electric vehicle batteries at different power levels

3. Independent cooling system

•

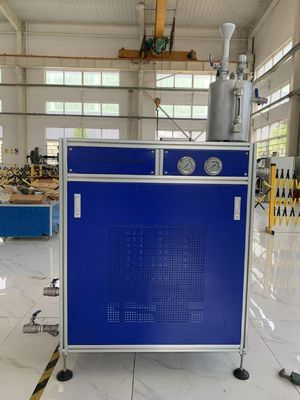

The dynamometer is air-cooled, and the test motor is equipped with a water cooling loop, with coolant being 50% ethylene glycol water solution

•

Flow control range 3-30L/min, temperature control accuracy ±1 ° C, avoiding thermal interference between different components

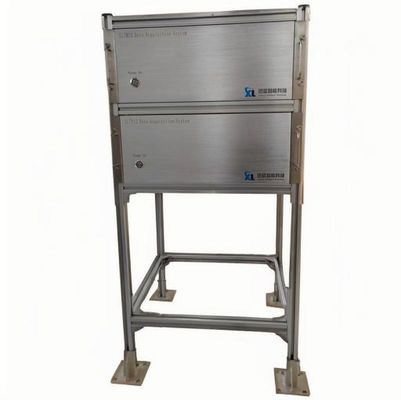

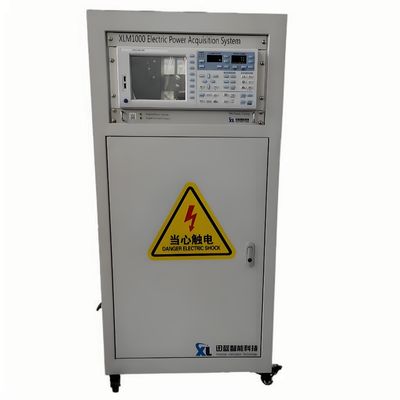

4. Intelligent control system

•

The upper computer system developed based on Windows integrates standard cycles such as CLTC city condition and ECE-R101 energy consumption test

•

It can collect 15 parameters such as torque and rotational speed in real time. The data sampling frequency is 5kHz and it supports CAN/LIN bus communication

SSCH60-4000/15000 New Energy Motor Electric Dynamometer Test Bench Key Technical Parameters

SSCH60-4000/15000 New Energy Motor Electric Dynamometer Test Bench Technical Features

1. Precise working condition simulation capability

Through the dynamic torque loading algorithm, the torque variation during the 0-60km/h acceleration process on urban roads can be reproduced, with the fluctuation controlled within ±2%, meeting the requirements for dynamic performance testing of motor controllers.

2. Wide temperature adaptability test

Optional -30 ° C to 80 ° C environmental chamber, combined with humidity control of 20% to 85% RH, to test the performance of the motor in different climate zones, temperature rise test accuracy ±1.5 ° C.

3. Basic fault simulation function

Supports simulating six common types of faults such as motor phase loss and abnormal sensor signals to help developers optimize motor protection strategies.

4. Efficiency analysis tools

Built-in motor efficiency MAP generation function, automatically plotting efficiency curves under different operating conditions, supporting data comparison with similar products, assisting in optimization design. ​

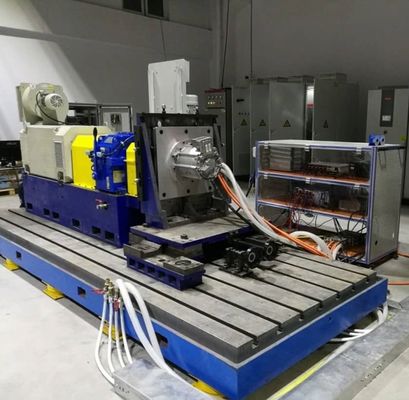

SSCH60-4000/15000 New Energy Motor Electric Dynamometer Test Bench Typical Application Areas

1. Motor testing for small passenger vehicles

It is applicable to the drive motor test of A0-class pure electric sedans and urban mobility vehicles, and can complete the rated power, efficiency and other test items stipulated in GB/T 18388.

2. Urban logistics vehicle development

Support motor performance verification for electric logistics vehicles under 4.5 tons, simulating frequent start-stop, low-speed climbing and other working conditions in urban distribution. ​

3. Low-speed special vehicles

Provide durability tests for the motors of low-speed vehicles such as electric sightseeing vehicles and site transport vehicles, which can operate under heavy load conditions for 8 consecutive hours. ​

4. Motor controller matching

Optimizing motor and controller parameters on the bench, such as adjusting the control strategy at 12,000 r/min high speed, can increase motor efficiency by 2 to 3 percent and extend vehicle range.

SSCH Series Models Parameter Information
