AV125V 90%RH Thermocouple Input Module

Certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
I'm Online Chat Now

AV125V 90%RH Thermocouple Input Module

AV125V 90%RH Thermocouple Input Module
AV125V 90%RH Thermocouple Input Module

Large Image :  AV125V 90%RH Thermocouple Input Module

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: SL4068
Payment & Shipping Terms:
Minimum Order Quantity: 3
Price: USD 1200 dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 100 pcs per week

AV125V 90%RH Thermocouple Input Module

Description
Channels: 8-ch Relay Humidity: 5~95 %RH
Connector: 2 X Plug-in Terminal Block (#14~28 AWG) Communication Speed: Serial: From 1,200 To 115.2 K
Power Requirement: 10~30 VDC Interface: RS-485
Temperature (Operating): -10~70 °C (14~158 °F) Temperature (Storage): -25~85 °C (-13~185 °F)
High Light:

90%RH Thermocouple Input Module

,

AV125V Thermocouple Input Module

,

AV125V portable data acquisition module

8-Channel Relay Output Module



Product Introduction

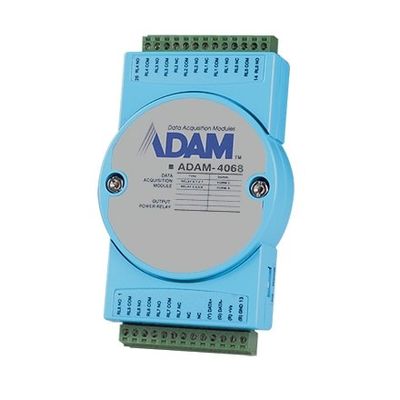

SeeLong-4068 relay output module can be remotely controlled and configuration data stored in EEPROM.The Adam-4068 provides 4/8 relay channels, half of which are type A and the other half are type C.These modules are ideal for switch control or low voltage switch control applications.





Main Features



  • I/O type: 4-way A, 4-way C
  • Contact power: AC: 125 V @ 0.6A;250 V @ 0.3a, DC: 30 V @ 2A;110 V @ 0.6A
  • Switching time: relay on time (typical) : 3 ms relay off time (typical) : 1 ms
  • The LED light
  • Modbus/RTU control is supported





Digital Output



Channel 8-ch relay
Power requirement 10~30VDC





General



Watchdog Timer System (1.6 second) & Communication
Connector 2 x plug-in terminal block (#14~28 AWG)
Temperature (Operating) -10~70 °C (14~158 °F)
Humidity 5~95 %RH
Temperature (Storage) -25~85 °C (-13~185 °F)
Interface RS-485
Communication Protocol ASCII command & Modbus/RTU
Communication Speed Serial: From 1,200 to 115.2 k
Comm. Distance Serial: 1.2 km
Data Flow Control Yes
