|Range:||- 0.1 ~ 0Mpa||Output Signal:||4-20mA|
|Power Supply Voltage:||+12VDC||Process Connection:||M20x1.5|
|Temperature Resistance:||-20-300℃||Explosion-Proof:||Ex Ia IIC T6 Ga|
CMC High Precision Pressure Sensor,
300 ℃ High Precision Pressure Sensor,
300 ℃ precision pressure transducer

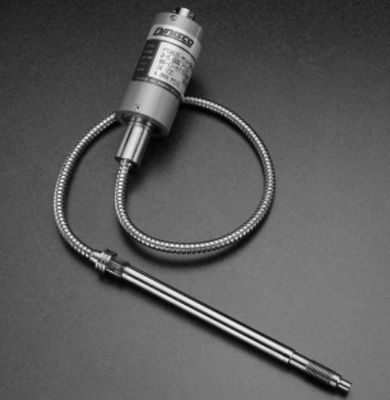

SLYL-FD 300 ℃ High Temperature Explosion Proof Pressure Sensor
SLYL-FD explosion-proof high-temperature pressure sensor / transmitter adopts diffusion silicon sensitive piezoresistive element and cast aluminum explosion-proof shell. It can measure high-temperature gas or liquid within 300 ℃. It has adjustable zero point and full-scale as well as strong anti-seismic, shock resistance and long-term stability, The series of products are widely used in fuel, oil field, mine, chemical, electric power, boiler, metallurgy and other fields.
Engine testing, construction machinery, molding machinery, online pressure detection, aerospace, hydraulic and pneumatic equipment, constant pressure water supply, medical equipment and other fields.
|Model||Range(MPa)||Range(KPa)||Output signal||Accuracy(%FS)||Process connection|
|- 0.1 ~ 0.1||0-2||4-20mA, 0-5V, 0-10V||0.5% FS- 0.1 ~ 0Mpa||m20x1.5, G1 / 2, G1 / 4, 1 / 2NPT 1 / 4NPT, M14x1.5 (others can be customized)|
|SLYL-FD-2||- 0.1 ~ 0.4||0-4|
|SLYL-FD-3||- 0.1 ~ 0.6||0-6|
|SLYL-FD-4||- 0.1 ~ 1||0-12|
|SLYL-FD-5||0 ~ 2||0-14|
|SLYL-FD-6||0 ~ 12||0-16|
|SLYL-FD-7||0 ~ 14||0-18|
|SLYL-FD-8||0 ~ 30||0-20|
