SSCG180-1000-7000 0.2%FS Torque Measurement Accuracy Gasoline Engine Performance Electric Dynamometer Test Bench

SSCG180-1000-7000 0.2%FS Torque Measurement Accuracy Gasoline Engine Performance Electric Dynamometer Test Bench

SSCG180-1000-7000 0.2%FS Torque Measurement Accuracy Gasoline Engine Performance Electric Dynamometer Test Bench Description

Standard

1.GB18297 (Performance Test Code for Road Vehicle Engines)

2.GB19055 (Reliability Test Methods for Motor Vehicle Engines)

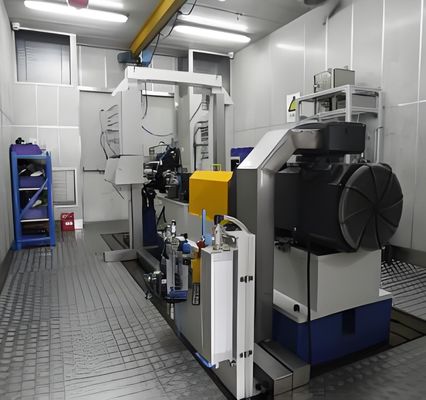

This test bench was developed specifically for 180-kilowatt gasoline engines. With "electric loading - precise measurement and control - condition simulation" as its technical core, it follows standards such as GB/T 18297 and GB19055. Furthermore, it can conduct full-condition tests on engine power performance, economy and emission characteristics. Dynamic load simulation is achieved through an electric dynamometer, and more than 50 parameters are collected synchronously in conjunction with a high-precision sensing system. It is suitable for scenarios such as passenger car engine development, hybrid system matching, and component verification. The modular design supports engine testing of different technical routes such as turbocharging and direct injection. ​

SSCG180-1000-7000 0.2%FS Torque Measurement Accuracy Gasoline Engine Performance Electric Dynamometer Test Bench Components

1. Electric dynamometer and loading system

•

Water-cooled AC asynchronous motor: Rated power 180kW, speed range 1000-7000rpm, maximum loading torque 600N · m, 0-100% load step response ≤0.4s. ​

•

Torque-speed measurement: JN338-A sensor (range 0-800N · m, resolution 0.1N · m) with 1024 line encoder (speed accuracy ±0.05%).

​

2. Fuel and intake measurement and control system

•

Fuel supply module: high-pressure oil pump (0 - 12MPa), fuel constant temperature control (accuracy ±1 ° C). ​

•

Intake system: Hot film flowmeter (0-2000kg/h, accuracy ±0.5%), electric heating preheater (-20 ° C - +120 ° C). ​

3. Intelligent measurement, control and safety system

•

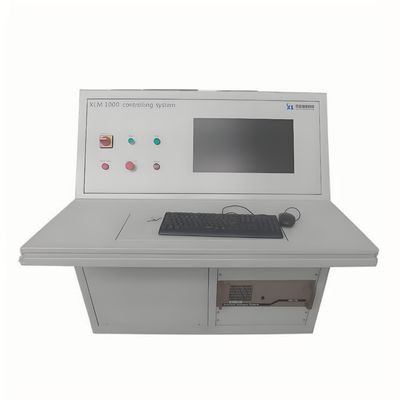

Control system: ABB PLC, ADVANTECH upper computer, supporting the preset of cycle working conditions such as NEDC. ​

•

Safety protection: Overspeed (stop at 110% rated speed), over-temperature protection, dual-channel emergency stop (response ≤0.1s). ​

SSCG180-1000-7000 0.2%FS Torque Measurement Accuracy Gasoline Engine Performance Electric Dynamometer Test Bench Technical Parameters

SSCG180-1000-7000 Gasoline Engine Electric Dynamometer Test Bench Typical Application Areas

1. Engine performance development

Full-load external characteristic tests, fuel consumption rate MAP mapping, and three-effect catalytic converter conversion efficiency evaluation can be carried out. ​

2. Hybrid system matching

It can optimize the working point of the engine in different SOC states of HEV/PHEV and test the dynamic response of the engine during energy recovery.

​

3. Component verification

Tests can be conducted on fuel injection system pressure characteristics, turbocharging transient response, etc. ​

4. Working condition simulation

It can simulate standard cycles such as NEDC, as well as extreme conditions like 5000m altitude plateau operation and -40℃ low-temperature start-up.

SSCG Series Models Parameter Information
