5000Nm 5000rpm RS232 Digital Torque Meter

Certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
I'm Online Chat Now

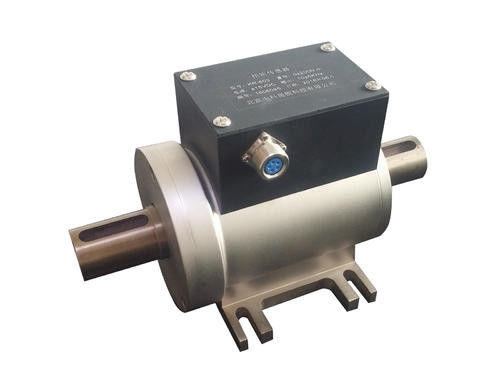

5000Nm 5000rpm RS232 Digital Torque Meter

5000Nm 5000rpm RS232 Digital Torque Meter
5000Nm 5000rpm RS232 Digital Torque Meter

Large Image :  5000Nm 5000rpm RS232 Digital Torque Meter

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: SLZN-5000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 4600 dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 20 pcs per month

5000Nm 5000rpm RS232 Digital Torque Meter

Description
Measuring Range: 5000Nm Accuracy Class: 0.2%FS
Working Speed: 0-5000rpm Overload Capacity: 150%
Interface: RS485/RS232 Power Supply: ±12V DC
Use Temperature: - 20 ℃ - 50 ℃ Signal Type: 0-10VDC(Optional)
High Light:

5000rpm Digital Torque Meter

,

5000Nm Digital Torque Meter

,

5000Nm digital torque angle meter

SLZN 5000-10000Nm 5000rpm 0.2%FS High Speed Torque and Rotational Speed Measurer



Product introduction



SLZN sensor is a general-purpose sensor, which is suitable for all rotating power systems with sufficient distance between power equipment and load. Meanwhile, power equipment and load are relatively independent bodies, so coupling is required to install the sensor between power equipment and load.



Speed measurement is divided into:



1. The photoelectric and code disk principle is used in high speed measurement.

2. When measuring angle, displacement and low speed, the incremental encoder principle is used to design, which has high accuracy, stable and reliable performance and long service life.





Specifications (Can be customized)





Model Torque(Nm) Max.Torque(Nm) Rated Speed(rpm) Speed Measurement Accuracy Torque Measurement Accuracy
SLZN5000 5000 7500 5000 1/60rpm 0.2%FS
SLZN10000 10000 15000 5000 1/60rpm 0.2%FS
Can be customized







Technical parameters:



  • Power supply: ± 12VDC, current > 0.3A
  • Application environment: temperature: - 20 ℃ - 50 ℃  Humidity: ≤ 90% RH  Atmospheric pressure: 90-106kpa
  •  Overload capacity: 150% F.S
  • Inaccuracy: 0.1% F.S
  • Repeatability: 0.1% F.S
  • Linearity: 0.1% F.S
  • Lag: 0.1% F.S
  • Analog signal output: zero torque: 10kHz
  • Forward full scale: 15KHz
  • Reverse full scale: 5KHz
  • Speed measuring gear: 60, 120, 600 or 1024 pulses per circle.
  • Digital bus interface: RS232 or RS485





Function Description



  • The performance and installation dimension of the product are fully compatible with the corresponding sensors of SLNJ-Z series, and the user does not need to change too much design to replace the product.
  • Data sampling time can be as fast as 1 ms, and can be set between 1-1000 MS as needed.
  • Using advanced measurement algorithm, the measurement error of data signal can be reduced to ± 1Hz.
  • Through the digital bus interface signal, the measured value of torque and speed is directly transmitted to the computer and other network control equipment.
  • The bus data communication has CRC data verification function, and the reliability of data transmission is high.
  • The measured parameters can be remotely modified by computer and other control equipment, and the parameters can be completely saved after power failure.
  • It has a variety of intelligent functions, such as overload alarm, fault detection, status indication, etc.
  • Long distance data transmission can be realized through digital bus interface.
  • The function can be upgraded continuously without other hardware cost.





FAQ



Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
