10L/Min 70℃ Oil Conditioning Equipment With Pressure Control

China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
I'm Online Chat Now

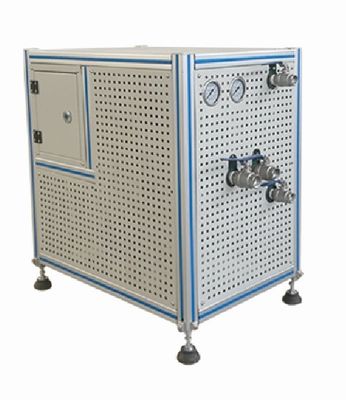

10L/Min 70℃ Oil Conditioning Equipment With Pressure Control

10L/Min 70℃ Oil Conditioning Equipment With Pressure Control
10L/Min 70℃ Oil Conditioning Equipment With Pressure Control

Large Image :  10L/Min 70℃ Oil Conditioning Equipment With Pressure Control

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SLOC-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 5000 -12000 dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10 sets per month

10L/Min 70℃ Oil Conditioning Equipment With Pressure Control

Oil Circulation Capacity: 10L/min Working Temperature: 70-140℃
PLC: S7-1200 Control Accuracy: ±1℃
Adjustment Time: <5sec Communication Mode: RS485/0-10V
High Light:

70℃ Oil Conditioning Equipment


10L/Min Oil Conditioning Equipment


10L/Min hybrid air cooled chiller

SLOC 10L/min 70-140℃ ±1℃ Lubricating Oil Conditioning
The main applications for SLOC are engines up to 400 kW, with customized solutions for larger engines. Several connection modes and unit options allow different applications like oil pan conditioning, oil pressure control and pre-heating. For oil conditioning on gear boxes, the SeeLong SLOC can also be used
The oil conditioning system SeeLong SLOC conditions the engine or transmission lube oil temperature and oil supply pressure to a pre-definable set value and keeps it within a certain tolerance at steady state and dynamic operation of the unit under test UUT. The effective temperature value can be taken at the device or preferably at the UUT.
The effective pressure value must be taken at the UUT. Electrical heating is incorporated for preheating the lube oil and better control dynamics in transient operation.
Control principle
The PID control is carried out by an external system.( e.g. SeeLong SLOC). The temperature control is performed by a mixing valve (heat exchanger/electrical heating). The supply pressure control is handled by a control valve in the bypass between the supply and return lines to and from the unit.
Benefits at a glance

  • ​Stainless steel tubing avoids dissociation of rust particles and guarantees long service life
  • High control accuracy and dynamics increase the testbed efficiency
  • Faster control response thanks to primary controlled oil circuit
  • he compact design enables installation close to the unit under test (engine or transmission) and, therefore, keeps the external oil volume small
  • Flexible in applications due to several connection modes, such as connection to the oil sump or to the oil

Technical parameter

The maximum working temperature :70 ~ 140 ℃
Oil circulation capacity: 10L / min
Reference engine power:20-50KW
Medium viscosity: < 50cst
Heating power: oil without heating
System control ≤± 1℃
The allowable working pressure of oil circuit:1.45mpa
The maximum temperature of cooling water is not more than 40 ℃
Power supply power: 1kW / 220V
Heating power: oil without heating

Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
