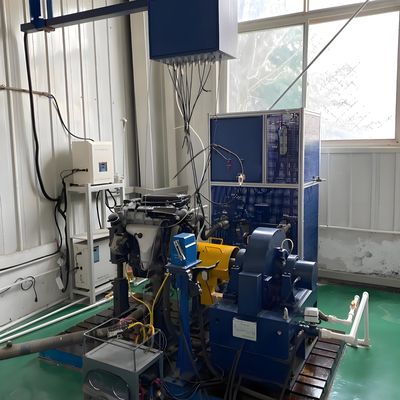

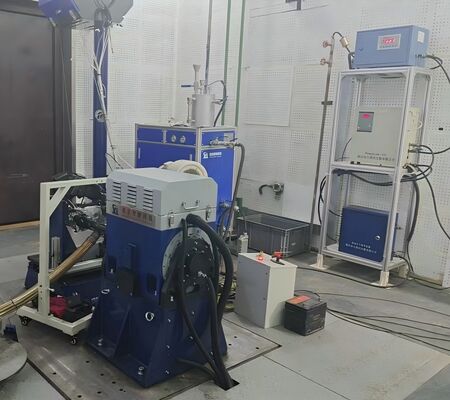

SSCG120-1500/6500 120kW 360Nm 6500 RPM Cost-effective Air-cooled Gasoline Engine Test Bench

SSCG120-1500/6500 120kW 360Nm 6500 RPM Cost-effective Air-cooled Gasoline Engine Test Bench

SSCG120-1500/6500 120kW 360Nm 6500 RPM Cost-effective Air-cooled Gasoline Engine Test Bench Description

Standard

  1. GB18297 (Performance Test Code for Road Vehicle Engines)

  2. GB19055 (Reliability Test Methods for Motor Vehicle Engines)

SSCG120-1500/6500 120kW 360Nm 6500 RPM Cost-effective Air-cooled Gasoline Engine Test Bench Technical Parameters

The advantages of SSCG120-1500/6500 120kW 360Nm 6500 RPM Cost-effective Air-cooled Gasoline Engine Test Bench

Real simulation: The engine test bench can truly simulate various working conditions of the engine during vehicle operation, such as acceleration, deceleration, and load changes, thereby accurately evaluating the performance of the engine in the actual working environment.
Precise testing: Through high-precision measuring instruments and control systems, the engine test bench can accurately measure various performance indicators of the engine, such as power, torque, fuel consumption rate, emissions, etc., providing accurate data support for the design and optimization of the engine.
Strong flexibility: The engine test bench can adjust the test parameters and working conditions as needed, and flexibly conduct various types of engine performance tests, such as steady-state performance tests, dynamic performance tests, and emission performance tests, etc.
Safe and reliable: Engine test benches usually adopt automated control and safety protection systems to ensure the safety of operators and the stable operation of equipment during the test process.

SSCG120-1500-6500 Gasoline Engine Electric Dynamometer Test Bench Applications

1. Engine performance development
Full-load external characteristic tests, fuel consumption rate MAP mapping, and three-effect catalytic converter conversion efficiency evaluation can be carried out. ​

2. Hybrid system matching
It can optimize the operating point of the engine in different SOC states of HEV/PHEV and test the dynamic response of the engine during energy recovery. ​

3. Component verification
Tests can be conducted on fuel injection system pressure characteristics, turbocharging transient response, etc. ​

4. Working condition simulation
It can simulate standard cycles such as NEDC, high altitude conditions at 5000m, and extreme conditions such as starting at -40 ° C.

SSCG Series Models Parameter Information

Company Profile

Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech enterprise specializing in equipment measurement, control, design, manufacturing, and sales services for power engineering systems in various fields such as aerospace, automotive, and new energy; The company is located in the beautiful peony city of Luoyang.

Seelong specializes in the research and development, production, and service of testing equipment for new energy motors, hybrid power systems, engines, transmissions, and more. Our main products include electric dynamometers, measurement and control systems, DC power supplies, and working condition guarantee systems. Seelong has a complete sales and service system, adhering to the business philosophy of providing fine quality services for survival and keeping on renovation for development, and providing users with various types of power engineering measurement and control solutions in various fields.

Seelong's advanced design philosophy and rich industry experience give the company a technological Advantages ahead of competitors in the same industry, and the company's products can better meet the actual market demand. Seelong is brave in innovation. While valuing its own technological breakthroughs and development, it has established long-term and in-depth cooperative relationships with multiple domestic research institutions such as Tsinghua University and Shandong University. It has passed CE certification, ISO9001 quality system certification, AAA level enterprise certification, obtained more than ten invention patents, and two software copyrights. It has provided professional equipment and services to more than a hundred users both domestically and internationally, The enterprise has won the trust of domestic and foreign customers with its cost-effective products and high-quality services, and has established a long-term win-win strategic partnership.

The company always adheres to the business philosophy of "taking technological innovation as its mission and quality service as its purpose", constantly surpassing the advanced level in the same industry, integrating into the world, measuring and controlling the future, and creating high-quality products. To provide customers with products and services with high intelligence, precision, speed, reliability, and added value.

All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd. warmly welcome sincere cooperation from domestic and foreign customers, and work together for the future and common development.
