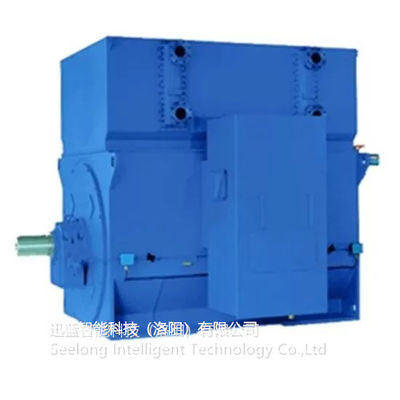

3300rpm +/- 0.05%FS High Dynamic Dyno Machine

China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
I'm Online Chat Now

3300rpm +/- 0.05%FS High Dynamic Dyno Machine

3300rpm +/- 0.05%FS High Dynamic Dyno Machine
3300rpm +/- 0.05%FS High Dynamic Dyno Machine

Large Image :  3300rpm +/- 0.05%FS High Dynamic Dyno Machine

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SLYD-160/3300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 48500 dollar
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

3300rpm +/- 0.05%FS High Dynamic Dyno Machine

Power: 160KW Torque Range: 1528Nm
Speed Range: 3300rpm Speed Measurement Accuracy: 0.1rpm
Torque Measurement Accuracy: 0.05%FS Overload Capacity: 120%
Service Temperature: -20to45℃ Use Altitude: <2000m
High Light:

+/- 0.05%FS dyno machine


3300rpm dyno machine


3300rpm engine dyno

SLYD 160-250KW 3300rpm ±0.05%FS High Dynamic and High Torque Dynamometer


Introduction to SLYD Series Dyno


SLYD Electric dynamometer is different from eddy current dynamometer. The SLYD electric dynamometer can be used to test low-speed and high-torque engines, motors and transmissions. The test system of power dynamometer is composed of variable frequency motor, variable frequency controller, performance tester and test software. It can test torque, speed, output power and efficiency. It is suitable for various engine, aeroengine, gearbox, axle, AC / DC motor, DC permanent magnet motor, induction motor, three-phase asynchronous motor and synchronous motor It is widely used in household appliances, aviation, automobile, electric vehicle and other scientific research, production and testing industries.



Examples for Possible Applications


  • AC motor
  • Modular design concept, suitable for various applications and budget programs
  • Low wear, low maintenance design
  • Engine speed interface
  • Engine torque interface



Benefits at a Glance


  • High sensitivity, good load torque stability, no electric brush slip ring structure, long service life.
  • Measurement accuracy: speed ± 0.1 R / min; torque ± 0.05% FS
  • Loading stability: constant torque loading stability is better than 0.2%, constant speed driving is better than 0.1%
  • Equipped with communication interface, it can communicate with the computer in real time.
  • At zero speed, the full load can be added
  • high dynamic response speed, the dynamic response sis less than 5ms​



Specifications (Can be customized)


Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
SLYD160 160 1528 1000 3300 0.05%FS
SLYD200 200 1910 1000 3300 0.05%FS
SLYD250 250 2387 1000 3300 0.05%FS
Can be customized




Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
