High Repeatability 560KW 2800 Rpm Torque Dynamometer

Certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
China Seelong Intelligent Technology(Luoyang)Co.,Ltd certification
I'm Online Chat Now

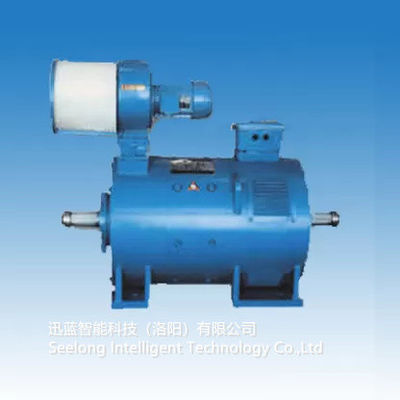

High Repeatability 560KW 2800 Rpm Torque Dynamometer

High Repeatability 560KW 2800 Rpm Torque Dynamometer
High Repeatability 560KW 2800 Rpm Torque Dynamometer

Large Image :  High Repeatability 560KW 2800 Rpm Torque Dynamometer

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SLHD-560/2800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 68500 dollar
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

High Repeatability 560KW 2800 Rpm Torque Dynamometer

Description
Power: 560KW Torque Range: 5347Nm
Speed Range: 2800rpm Speed Measurement Accuracy: 0.1rpm
Torque Measurement Accuracy: 0.05%FS Overload Capacity: 120%
Service Temperature: -20to45℃ Use Altitude: <2000m
High Light:

2800 Rpm Torque Dynamometer

,

560KW Torque Dynamometer

,

560KW dynamometer

SLYD 560-750KW 2800rpm ±0.05%FS High Dynamic and High Torque Dynamometer



Introduction to SLYD Series Dyno



SLYD series AC dynamometer is an indoor test system with high precision and high repeatability, whose main goal is to test the performance of heavy duty diesel engine. Through the efficient control system, all test operations can be completed by computer control instructions. High speed data communication module makes the system have higher real-time performance. SLYDseries dynamometer has the characteristics of low speed, high torque and high dynamic response.





Examples for Possible Applications

  • AC servo motor,
  • Modular design concept, suitable for various applications and budget programs
  • Low wear, low maintenance design
  • Engine speed interface
  • Engine torque interface





Technical Parameter



  1. Speed measurement accuracy: ± 0.1r/min
  2. Torque measurement accuracy: ± 0.05% FS
  3.  Power measurement accuracy: ± 0.2% FS
  4. Temperature measurement accuracy: ± 1 ℃
  5. Speed control accuracy: ± 2R / min (constant speed control mode)
  6. Torque control accuracy: ± 0.2% FS
  7. Dynamic response : < 5ms
  8. Frequency conversion control mode: DTC direct torque control. (ABB Inverter)



Specifications (Can be customized)



Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
SLYD560 560 5347 1000 2800 0.05%FS
SLYD600 600 5729 1000 2800 0.05%FS
SLYD640 640 6111 1000 2800 0.05%FS
SLYD700 700 6684 1000 2800 0.05%FS
SLYD750 750 7162 1000 2800 0.05%FS
Can be customized





FAQ



Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.





About Us



SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a professional production of automotive power system test equipment high technology services enterprises. SeeLong is located in the Peony City(famous for peonies) -- Luoyang, which is also the ancient capital of 13 dynasties.



Why Choose Us



After years of development and accumulation, the company has become a well-known powertrain test equipment production enterprises. Specializing in engine test, transmission test, energy storage test, controls and electric motor test and other test equipment research, development and production service. The company has established long-term cooperation with tsinghua university, Shandong university and many other domestic scientific institutions. We have successfully passed the ISO9001 Quality System certification, obtained a dozen of invention patents and two software copyrights. We have provided professional services and equipment for more than 100 users at home and abroad and which is ongoing now and will continue in the future.



Prospect of Cooperation



Friendly cooperation provides you both high quality products and long-term professional after-sales service.
