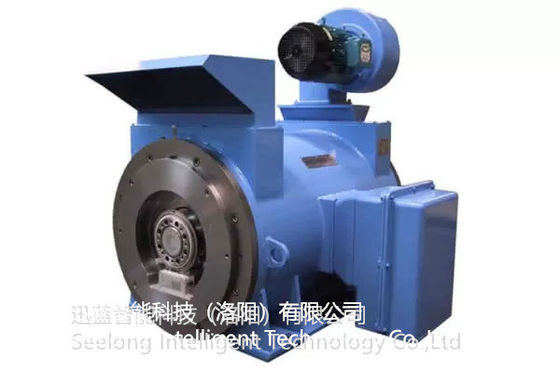

Air Cooling 15 KW IP54 High Speed Dynamometer

Air Cooling 15 KW IP54 High Speed Dynamometer
Air Cooling 15 KW IP54 High Speed Dynamometer

Large Image :  Air Cooling 15 KW IP54 High Speed Dynamometer

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: SSHC 15/30000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 40000dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 10-12weeks
Payment Terms: T/T
Supply Ability: 10 sets per month

Air Cooling 15 KW IP54 High Speed Dynamometer

Power: 15KW Rated Speed: 30000rpm
Torque Accuracy: ±0.5%FS Speed Accuracy: ±1rpm
Cooling Mode: Forced Air Cooling Lubrication Mode: Grease
Rated Torque: 17.9Nm Overload: 120%
High Light:

IP54 High Speed Dynamometer


15 KW High Speed Dynamometer


15 KW engine dyno

SSHC 15-30 KW 30000rpm 0.5%FS High Speed Forced Air Cooling Dynamometer




SSHC series high speed electric dynamometer is mainly used for testing high-speed motor, aero-engine and high-speed fluid machinery. These specimens have the characteristics of high speed. SSHC dynamometer can provide reliable test environment.


With the help of SEELONG e-motor test system, the SSHC dynamometer can measure the power and torque of the test piece, collect the data of temperature, pressure, flow, current, voltage and other parts in real time, and complete the real-time data recording, report generation, curve generation, data calculation, etc





  • Power: 15-30KW
  • Torque:17.9Nm--35.8Nm
  • Speed: 30.000 R / min
  • Structural form: B3, B5 (additional to IEC 60034-7)
  • Cooling: IC 70W (air cooling)
  • Overload:120%
  • Protection type: IP54
  • Housing: 60 to 80

  • Material: gray cast 450 to 500 steel

  • Efficiency class IE2, ie3, (IE4)

  • Noise: 80dB

  • Moment of inertia: 0.0235---kgm2

  • Inverter operation (optional)
  • High speed spindle bearing
  • Special equipment for test bed


Benefits at a Glance


  • Flexibility thanks to modular design with matched and tested components
  • The highest data quality due to excellent system precision
  • Dynamometers up to 30,000 rpm
  • “Virtual Proving Ground“ concept based on SeeLong SLM
  • Applications know-how based on the operation of its own test beds at SeeLong
  • Global distribution and service network



Application Cases


Air Cooling 15 KW IP54 High Speed Dynamometer 0


Specifications (Can be customized)



Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
SSHC15 15 17.9 8000 30000 0.5%FS
SSHC20 20 23.9 8000 30000 0.5%FS
SSHC30 30 35.8 8000 30000 0.5%FS
Can be customized





Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
