SSCH180-4000/15000 ±0.1%FS High Accuracy AC Asynchronous New Energy Motor Electric Dynamometer Test Bench

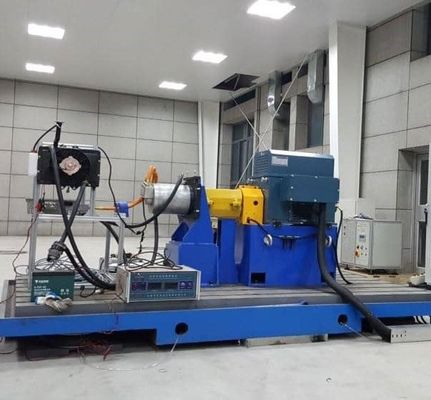

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Description

In the field of new energy commercial vehicles and high-end passenger vehicles, 180-kilowatt motors are becoming the mainstream configuration of drive systems. The performance of these high-power motors directly affects the vehicle's range and heavy-load capacity. The 180-kilowatt new energy motor dynamometer test bench is precisely designed as a "performance testing ground" for this type of motor, ensuring stable operation of high-power motors in complex application scenarios through full-condition simulation and precise data collection.

The dynamometer test bench is designed with a core power range of 180 kilowatts, which can simulate extreme conditions such as commercial vehicle climbing (slope ≥30%) and passenger vehicle high-speed cruising (speed > 160km/h), and also has the ability to test bidirectional energy flow. When the motor is in the power generation state (such as when the vehicle brakes downhill), the test bench can feed the regenerated electricity back to the grid with an energy recovery rate of over 95%, reducing the energy consumption cost of the test and realistically recreating the vehicle energy management scenario.

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Components

1. 180kW AC asynchronous motor

•

180kW AC asynchronous motor, a maximum torque of 1200N · m (@1500r/min), which is equipped with a high-precision torque sensor (accuracy ± 0.1%FS), can load dynamic drag curves in real time to simulate torque fluctuations when a heavy-duty truck climbs a slope

•

It is equipped with a three-level inverter with a switching frequency of up to 10kHz, enabling smooth adjustment of the motor speed within the range of 0-15000r/min

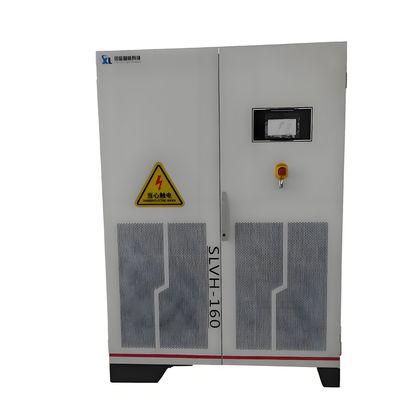

2. Bidirectional DC power supply system

•

Rated power: 200kW, voltage regulation range: 200-850V, supports three control modes: constant voltage/constant current/constant power

•

It is equipped with the built-in lithium battery simulation algorithm, can reproduce the battery discharge characteristics under different SOC states, such as the real working condition where the internal resistance of the battery increases at low temperatures (-30 ° C)

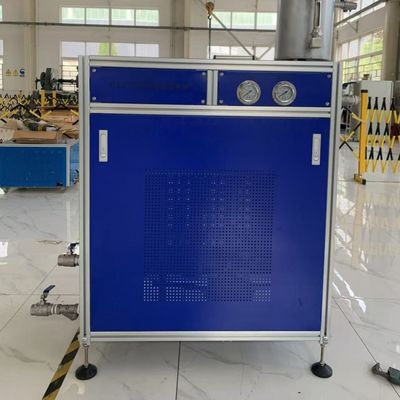

3. Complex cooling circulation system

•

The main loop uses ethylene glycol water solution for cooling, with a flow control range of 5-50L/min and temperature control accuracy ±0.5 ° C

•

The dynamometer and the test motor are designed with separate cooling circuits to avoid thermal coupling interference under high temperature conditions

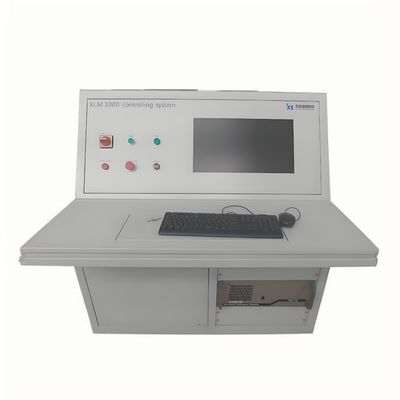

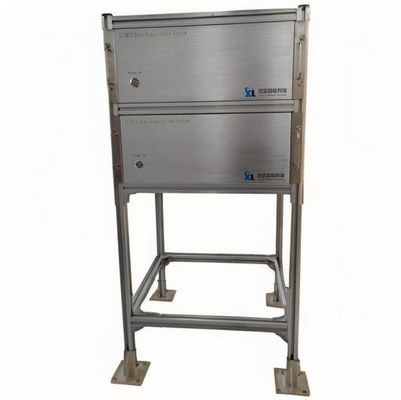

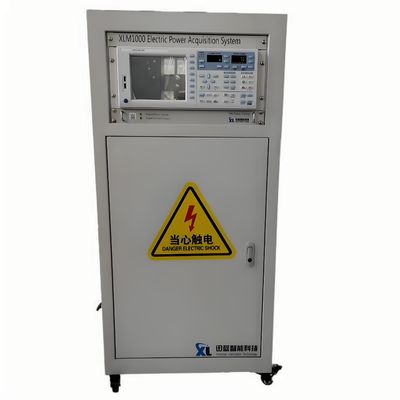

4. Intelligent measurement and control platform

•

The upper computer system developed based on Windows integrates standard condition libraries such as the C-WTVC commercial vehicle test cycle and the NEDC passenger vehicle test cycle

•

It can collect over 20 parameters such as torque, speed, voltage and current in real time. The data sampling frequency reaches 10kHz and it supports real-time communication with external devices via CAN bus

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Key Technical Parameters

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Technical Features

1. High dynamic load simulation capability

Through the real-time torque loading algorithm, the torque sudden change scene of the vehicle at the starting stage (0-50km/h acceleration) can be reproduced, and the torque fluctuation is controlled within ±1.5%, meeting the dynamic performance test requirements of the motor controller. ​

2. Wide temperature range environment simulation

With an optional environment chamber of -40 ° C to 120 ° C and humidity control (20% to 95% RH), it can test the performance degradation of the motor in extremely cold regions (such as winter in Northeast China) and tropical high temperatures, with a temperature rise test accuracy of ±1 ° C. ​

3. Fault Injection Test functionality

The system supports simulating more than 10 types of common faults such as inter-turn short circuits of motors and sensor failures, helping developers optimize fault-tolerant control strategies for motors and improve the safety of on-board motor systems. ​

4. Intelligent data analysis platform

Built-in motor efficiency MAP generation tool, which can automatically draw efficiency cloud maps for different speed - torque intervals, supports benchmarking analysis with industry benchmark motor data, and assists R&D teams in optimizing design solutions. ​

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Typical Application Areas

1. Commercial vehicle drive motor testing

It is applicable to the performance verification of drive motors for 8-12 meters pure electric buses and 4.5-18 tons logistics vehicles, and can complete all tests such as rated power, efficiency and overload capacity as stipulated in GB/T 18388-2021. ​

2. Research and development of high-end passenger car motors

Support motor system testing for four-wheel drive high-performance electric vehicles (such as models that can accelerate from 0 to 100km/h in less than 3 seconds) and simulate motor thermal management performance under conditions such as continuous rapid acceleration and high-speed cruising. ​

3. Special vehicle power systems

Provide test solutions for low-speed high-torque motors of special vehicles such as airport shuttle buses and port tractors, capable of completing durability tests under heavy load conditions for more than 10 hours. ​

4. Motor controller matching development

The parameter matching between the motor and the controller can be optimized through the bench, such as optimizing vector control parameters at 18000r/min high-speed conditions, which can increase the motor efficiency in the high-speed zone by 3-5%, directly enhancing the vehicle's high-speed range.

SSCH Series Models Parameter Information
