SSCD180-1000-3800 180kW 1720Nm High Torque Measurement Accuracy Diesel Engine Electric Dynamometer Test Bench

SSCD180-1000-3800 180kW 1720Nm High Torque Measurement Accuracy Diesel Engine Electric Dynamometer Test Bench

Standards

1.GB18297 (Performance Test Code for Road Vehicle Engines)
2.GB19055 (Reliability Test Methods for Motor Vehicle Engines)

SSCD180-1000-3800 180kW 1720Nm High Torque Measurement Accuracy Diesel Engine Electric Dynamometer Test Bench Description

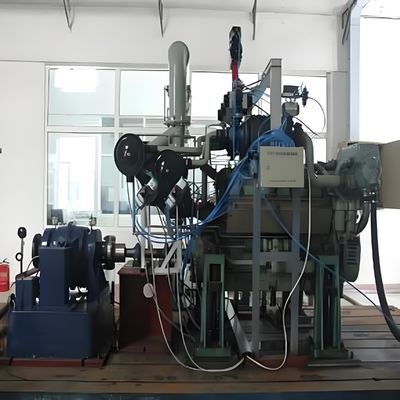

The 180kW diesel engine electric dynamometer test bench is a specialized test system integrating electric dynamometer technology and intelligent control. It quantitatively evaluates engine performance through full-condition dynamic simulation and plays a core role in the research and development verification and production quality control of small and medium power diesel engines. ​
​
This test bench adopts a modular integrated design. Its core function is to simulate the actual operating load of the engine through an electric dynamometer, combined with a high-precision sensor array and an intelligent control system, to achieve real-time collection and analysis of power parameters (power/torque/rotational speed), economic indicators (fuel consumption), and emission data. The test bench needs to be equipped with professional vibration isolation foundations (natural frequency ≤6Hz) and sound barriers (noise reduction ≥42dB) to ensure the stability of the test environment and the accuracy of the data. ​

SSCD180-1000-3800 180kW 1720Nm High Torque Measurement Accuracy Diesel Engine Electric Dynamometer Test Bench Core Components

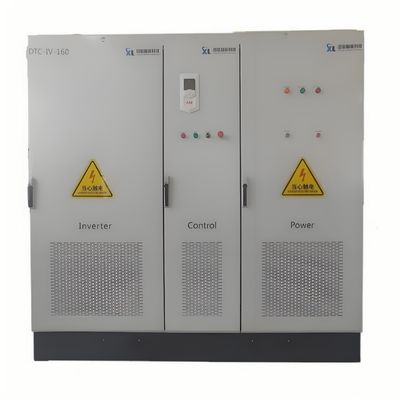

(1) Electric dynamometer system

Model configuration: 220kW AC asynchronous motor, with four-quadrant dynamic operation capability (power generation/electric mode switching time ≤25ms)

Technical advantages: Dynamic torque response time < 12ms (step control), energy feedback efficiency ≥93% (power recovery through grid-connected inverter)

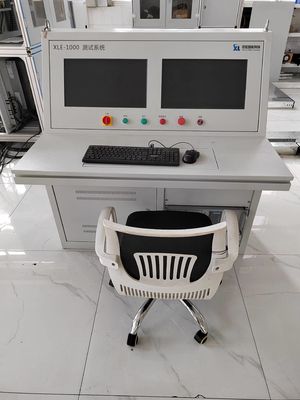

(2) Intelligent measurement and control system

Hardware platform: PLC (ABB) + ADVANTECH industrial computer architecture, supporting 16-channel synchronous sampling (sampling rate 2kHz)

Software features:

Preset test condition library (including 12 standard procedures such as ISO 8178 steady-state cycle, WLTC transient cycle)

Real-time 3D data visualization (supports dynamic generation of torque-speed-fuel consumption 3D MAP)

Multi-level fault warning mechanism (warning response time ≤600ms, with sound and light alarm and automatic shutdown protection)

(3) Auxiliary function system

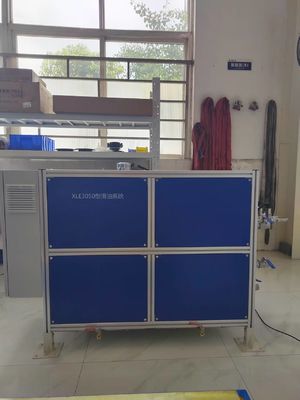

1. Fuel supply unit:

High-pressure common rail simulation unit (adjustable from 0 to 170MPa, flow control accuracy ±0.35% FS)

Multi-grade fuel intelligent switching system (supports automatic switching of 0#/-35# diesel, switching time ≤15s)

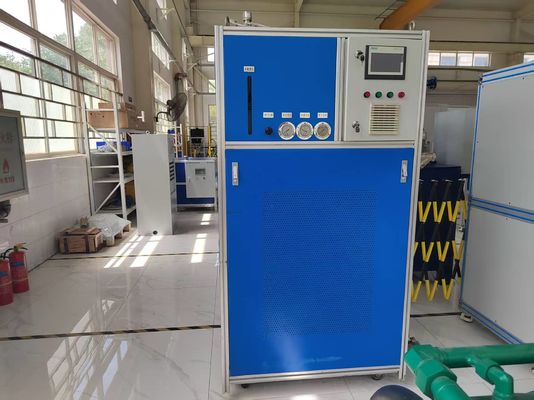

2. Thermal management unit:

80kW high-efficiency plate heat exchanger system (temperature control range 20-110℃, accuracy ±0.6℃)

Variable-frequency speed cooling fan (automatically adjusts heat dissipation power according to the temperature gradient of the coolant)

3. Emission test unit:

Five-component gas analyzer (CO/HC/NOx measurement accuracy ±1.2%, O₂/CO₂ measurement accuracy ±0.6%)

Particulate matter sampling and analysis system (lower limit of PM measurement 0.015mg/m³, in line with the latest ISO 16183 standard)

SSCD180-1000-3800 180kW 1720Nm High Torque Measurement Accuracy Diesel Engine Electric Dynamometer Test Bench Technical Parameters

SSCD180-1000-3800 180kW 1720Nm High Torque Measurement Accuracy Diesel Engine Electric Dynamometer Test Bench Typical Application Scenarios

• Research and development testing

Power performance optimization: Complete the mapping of the full-speed range external characteristic curve (torque fluctuation ≤1.2%), and optimize the fuel injection pressure and turbocharging to match the parameters.

Emission compliance verification: Support for the National VI b emission certification test (NOx emission control accuracy ±2.5%), and evaluation of the efficiency of the SCR+DPF composite after-treatment system

Electronic control system calibration: Test the low-temperature start-up fuel injection strategy and rail pressure control logic through the reverse drag function (electric mode power ≥40kW)

• Reliability verification

Durability performance test: Perform 1000 hours of intensive durability cycles (load fluctuation ≤3.5%) and monitor cylinder liner wear ≤0.025mm

Environmental adaptability test: Simulate the start-up performance and stable operation capability in high altitude (4,200 meters above sea level, with an intake oxygen concentration of 11.8%) and extremely cold conditions (-30℃)

• Production quality control

Off-line full inspection process: 6-minute rapid performance scan (covering 14 key indicators), power consistency controlled within ±1.8%

Process change validation: Performance comparison after component replacement (e.g. Fuel consumption deviation after fuel injector replacement ≤0.7%, emission index fluctuation ≤3%)

The test bench, through the deep integration of electric power measurement technology and intelligent control, achieves full process test coverage from R&D design to mass production quality control, providing precise quantitative data support for the technical upgrade and quality control of 180kW diesel engines.
