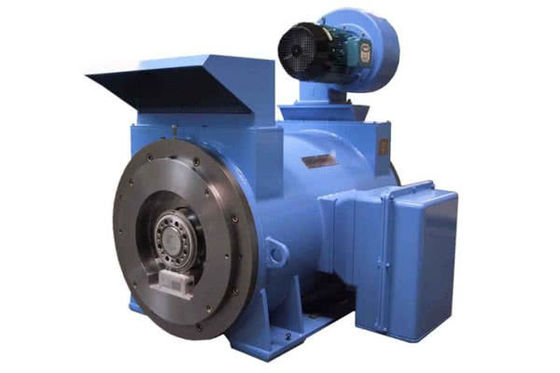

160KW 2800rpm Transmission Dynamometer With AC Load Generator

160KW 2800rpm Transmission Dynamometer With AC Load Generator
160KW 2800rpm Transmission Dynamometer With AC Load Generator

Large Image :  160KW 2800rpm Transmission Dynamometer With AC Load Generator

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: STTD+-160/2800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 32500dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 10-12weeks
Payment Terms: T/T
Supply Ability: 10 sets per month

160KW 2800rpm Transmission Dynamometer With AC Load Generator

Description
Power: 160KW Torque Range: 3183Nm
Speed Range: 2800rpm Torque Accuracy: 0.05%FS
Speed Accuracy: 0.1r/min Rated Voltage: 380V±10% 50Hz
Service Temperature: -20to45℃ Use Altitude: <2000m
High Light:

160KW Transmission Dynamometer

,

2800rpm Transmission Dynamometer

,

2800rpm dyno motor

STTD+ 160--190KW 2800rpm 3000Nm+ 0.05%FS High-precision and High Torque Dynamometer



Applications



STTD/STTD+ series dynamometer is a dynamometer that pursues high torque. The speed of this dynamometer is not very high, but it can provide super large torque output under low power condition

When the axle, transmission and reducer are tested, their output end has obvious characteristics: at a very low speed, it outputs a great torque. As the load dynamometer of the above products, according to the characteristics of axle, transmission and reducer, STDD/STDD+ series dynamometer pays more attention to the high torque output at very low speed; at the same time, the control model of dynamometer is optimized to realize the superior control of torque at low speed.





Technical features(160KW)



  • Torque flange range (nm) :0-5000
  • Host model:STTD+ - 160/ 2800
  • Motor brand: Seelong
  • Rated power (kw) :160
  • Rated speed (RPM): 480
  • Constant torque speed range (RPM): 0-480
  • Constant power speed range (RPM): 480-1200
  • Maximum speed (RPM) :2800
  • Rated torque (nm) :3183
  • Torque measuring device :HBM
  • Accuracy class :± 0.05% FS
  • Encoder: P+F, Germany
  • Encoder type: HTL / 1024





Technical features



  • The dynamometer test system adopts AC frequency conversion feedback loading, and the loading energy is fed back to the power grid through the AC load generator, which is energy-saving and environmental protection. The remarkable energy saving effect can convert mechanical energy into electric energy and feed back to the grid
  • Torque and speed are measured directly by torque sensor;
  • The electric quantity comprehensive measuring instrument detects current, voltage, frequency, power factor, etc.; the computer automatically detects, displays and completes data processing, report forms and various curves.
  • It can be used by other electrical equipment; good bidirectional loading characteristics;
  • Excellent low-speed loading capacity, and can achieve high-speed loading;160KW 2800rpm Transmission Dynamometer With AC Load Generator 0
  • High speed torque response speed (MS level);
  • It can be used as a motor to provide anti dragging ability;
  • Good reliability, long service life, convenient and simple maintenance;
  • The infrastructure is simple and air-cooled without external cooling system;





Specifications (Can be customized)





Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
STTD+160 160 3183 480 2800 0.05%FS
STTD+190 190 3780 480 2800 0.05%FS
Can be customized





FAQ



Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
