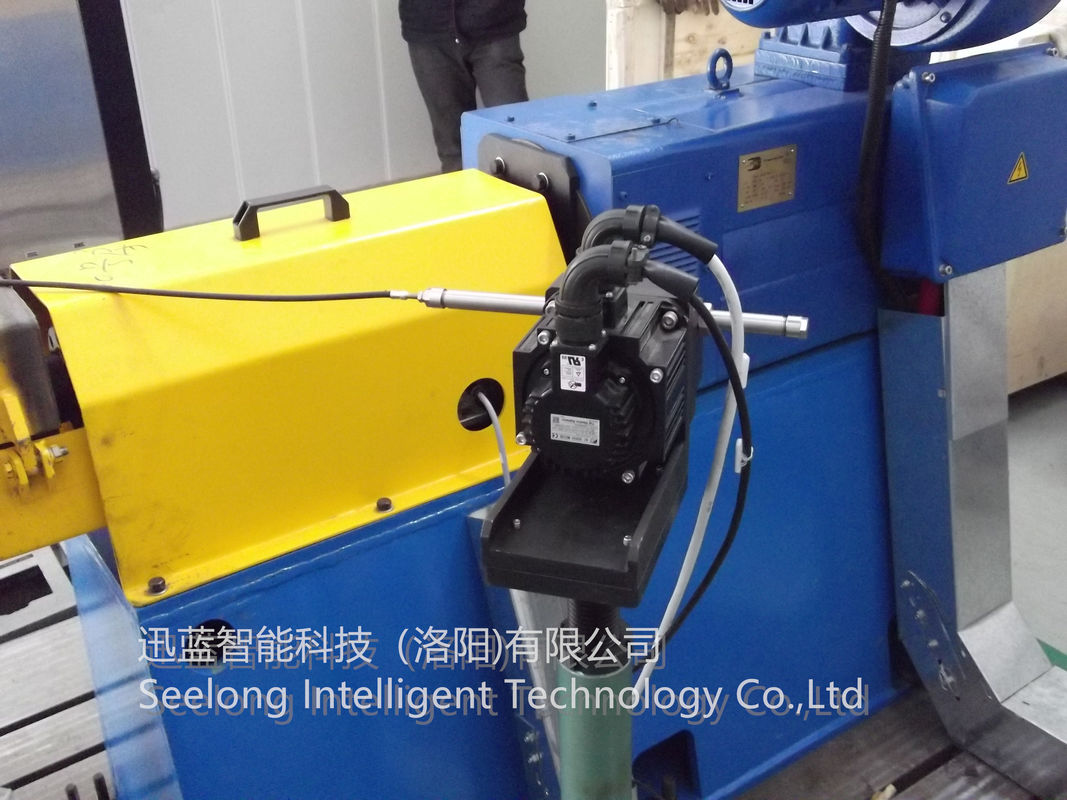

Electric Motor Dynamometer Test Equipment Test Bench

Electric Motor Dynamometer Test Equipment Test Bench
Electric Motor Dynamometer Test Equipment Test Bench

Large Image :  Electric Motor Dynamometer Test Equipment Test Bench

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SSCD400-1000/3300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Confidential
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

Electric Motor Dynamometer Test Equipment Test Bench

Description
Power: 400KW Rated Torque: 3820Nm
Max Working Speed: 3300rpm Constant Power Range: 1000-2600rpm
Constant Torque Range: 0--1000rpm Measurement Accuracy: 0.05/0.2/0.5
High Light:

Electric Motor Dynamometer

,

CMC Electric Motor Dynamometer

,

400KW Electric Motor Dynamometer

Electric Motor Dynamometer Test Equipment Test Bench





Introduction



The new energy vehicle motor test system tests the performance of the motor controller and the motor according to the requirements of the vehicle motor, provides accurate and reliable test charts and data, and tests the power performance, efficiency characteristics and safety protection functions of the electric drive system. The performance of the electric drive system is evaluated; and the vehicle motor control strategy is studied by simulating the actual operating conditions of the vehicle. Carry out the motor control performance test of the full-function electric vehicle converter, and can complete the loading test and functional test tasks of the 160kw motor and the motor controller. Principle of the test bench: (electric power dynamometer system) The test bench uses the ACS-880 series inverter produced by ABB to accurately control the torque and speed of the load motor. Due to the DTC direct torque control method, the inverter can achieve high-dynamic torque output to the load motor at high speed. The PSG energy feedback module is used in conjunction with the frequency converter to replace the resistance braking and feed back the power of the grid. The speed and torque are directly measured by the sensor; the power analyzer detects voltage, current, frequency, etc.; the industrial computer automatically detects, displays and completes data processing, reports and various curves, and comprehensively analyzes the performance of the motor.





Characteristic curve



Electric Motor Dynamometer Test Equipment Test Bench 0
