Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SSCD600-1500/3800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Confidential
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

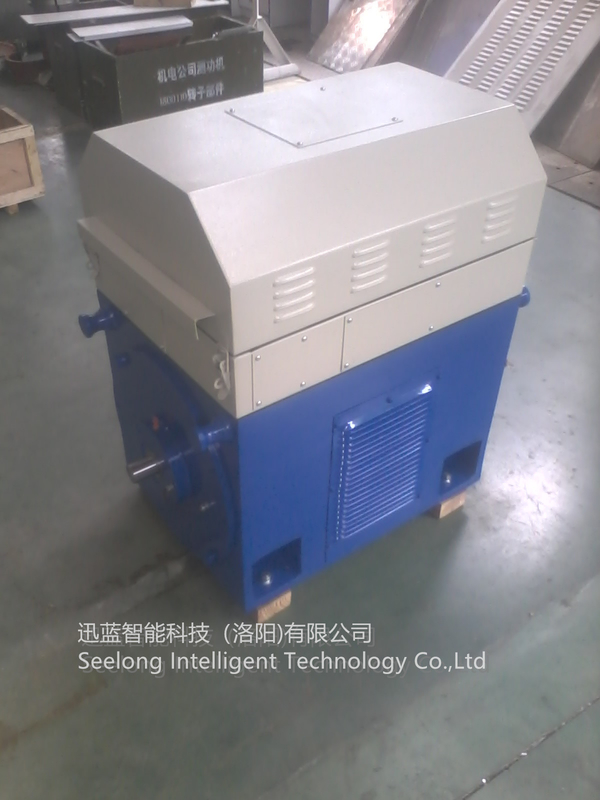

OEM Manufacturers Produce Motor Test Bench With Test Cabinet

Description
Power: 600KW Rated Torque: 3820Nm
Max Working Speed: 3300rpm Constant Power Range: 1500-3800rpm
Constant Torque Range: 0--1500rpm Measurement Accuracy: 0.05/0.2/0.5
High Light:

OEM Motor Test Bench

,

3300rpm Motor Test Bench

,

600KW Motor Test Bench

OEM manufacturers produce motor test bench with test cabinet





Introduction



  1. The comprehensive performance test bench can test all kinds of parallel shaft gear reducers, worm gear reducers, planetary reducers, RV reducers, harmonic reducers, slewing supports, hydraulic travel motor travel reducers (slewing reducers), etc. This type of reducer test bench is mainly composed of system power, tested reducer, torque and speed sensor, simulated load (magnetic powder brake, eddy current brake, motor, etc.), installation platform, connecting fixture, measurement and control system (instrument, software, etc.), Electrical control system and other components.
  2. The test process can be loaded manually or automatically. The test results can generate customized test reports, curve charts, etc., the process data can be generated in Word, Excel or PDF format files, and the data can be saved, edited, printed, etc. The interface of the test system is simple, easy to upgrade and maintain. The company trains operators for free, and provides instructions for use and maintenance.
  3. The user can according to the requirements, the specific test items can be communicated or customized by both parties.





Characteristic curve



OEM Manufacturers Produce Motor Test Bench With Test Cabinet 0OEM Manufacturers Produce Motor Test Bench With Test Cabinet 1
