Product Details:
|
| Type: | SSCH300-4000/10000 | Power: | ≥300KW |
|---|---|---|---|
| Speed: | 4000rpm | Torque: | 716N.m |
| Speed Rangen: | 0-10000rpm | Nsulation Gradeon: | F |
| Level Of Protection: | IP 54 | ||
| High Light: | Motor Performance Dyno Test Bed,300Kw Motor Performance Dyno Test Bed |
||
SSCH400-4000/10000 400Kw motor performance dyno Test bed
Product introduction
New energy vehicle drive motor test system is a set of test system specially developed for new energy motor. This system is composed of operation platform, variable frequency control feed system, signal acquisition and analysis system and motor test platform, which can meet the national standard of new energy motor (GB/T 18488.1-2015, GB/T 18488.2-2015, GB/T 29307-2012, etc.) test content.
Basic measurement items:
Main test contents: no-load test, load efficiency test, locked-rotor test, motor temperature, motor temperature rise, overload capacity test, maximum working speed, overspeed test, motor controller protection test, etc.
Functional characteristics
Full digital processing and control, improve the anti-interference ability of the system.
★ High measurement accuracy, fast response speed.
★ Complete software function, user-friendly interface.
★ Meet the content of national standard test method.
★ The software is compiled in strict accordance with national standards, and can generate various sub-reports and summary reports.
★ High reliability, good stability.
Basic Parameters(Customizable)
| Item | Technical parameters | |
| Model |
SSCH300-4000/10000 |
|
| Rated power(KW) | 300 | |
| Constant power range(rpm) | 4000-10000 | |
| Max. speed(r/min) | 10000 | |
| Encoder | ROD436/1024 | |
| Torque range(Nm) | 0～1000 | |
| Over-load capacity | 120%(60s/10min) | |
| Cooling method | Air cooling | |

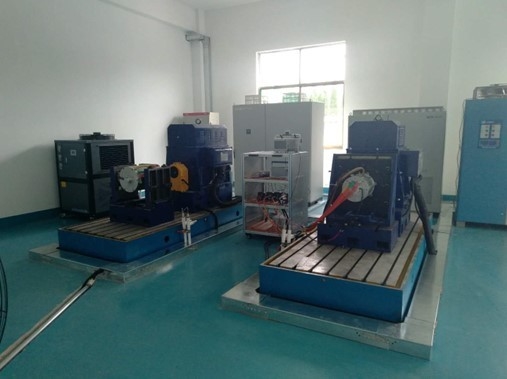

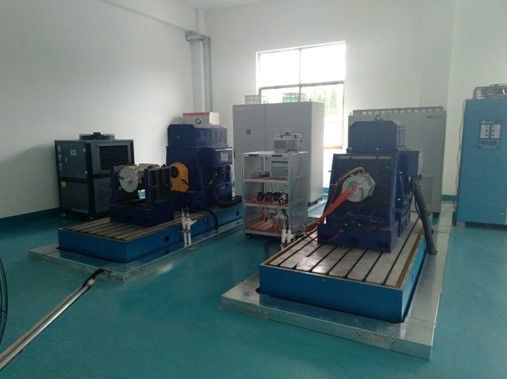

The test bench system is mainly composed of: power dynamometer, frequency conversion inverter system, XLM1000 control system and control software, power analyzer, water cooler, motor under test mounting bracket, coupling, cabinet, etc.
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
