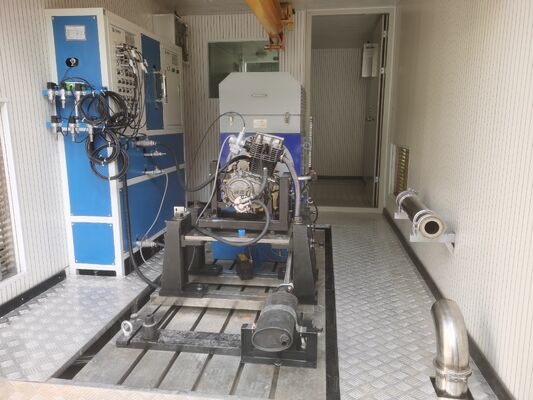

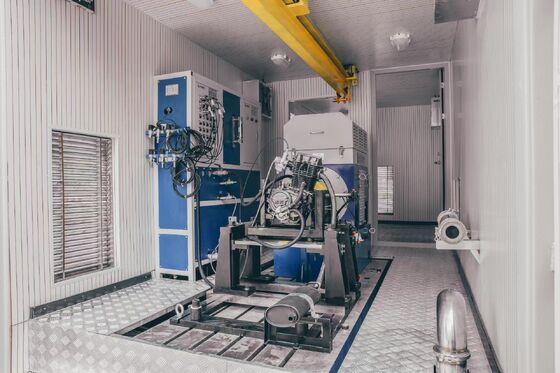

Seelong Customized SSCG300-3000/7500 350Kw Motor Test Dynamometer Test Bench System
Product Introduction
The new energy motor test system is applied to the fast and accurate test of the electric comprehensive performance parameters of the motor stator/the whole machine of the new energy vehicle. The system adopts the test line clamp mode for clamping test, strong compatibility for different specifications of motors, test items can be increased or customized according to product characteristics and needs. After the completion of the test, the qualified and unqualified instructions and sound and light alarm will be given.
-
Basic measurement items:
Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase Angle (φ), frequency (f), efficiency (η), loss (loss), voltage ripple rate (Urf), current ripple rate (Irf), current accumulation (Ih), power accumulation (WP), peak voltage (Upk) ), peak current (Ipk)
The system adopts the international famous brand four-quadrant feedback frequency control system, which is used to control the power dynamometer. The power dynamometer can load the motor forward and drag the motor in reverse at the same time
Function
1) Integrated design: Integrated architecture innovative design scheme, simplified operating station.
2) Quick clamping: Simple and efficient clamping scheme is adopted to facilitate the operation of production line staff and meet the production line production rhythm.
3) Quick test: Through the system preset test items, can improve the efficiency of production test.
4) Convenient operation: professional testing software, user-friendly operation interface.
5) Software features: graphical interface (Win7 operating environment), open architecture software platform.
6) Data management: test project editing function, test report export function, test data analysis function, user permission setting function, support bar code entry function.
7) Strong scalability: support function customization.
Basic Parameters (Customizable)
| Item |
Technical parameters |
| Model |
SSCG300-3000/7500
|
|
| Rated power(KW) |
300 |
|
| Constant power range(rpm) |
3000-7500 |
|
| Max. speed(r/min) |
7500 |
|
| Encoder |
ROD436/1024 |
|
| Torque range(Nm) |
0～1000 |
|
| Over-load capacity |
120%(60s/10min) |
|
| Cooling method |
Air cooling |
|
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
