Seelong Intelligent Technology Self- Produced Sscd160-1000/3500 Axle Performance Test Bench

Product description

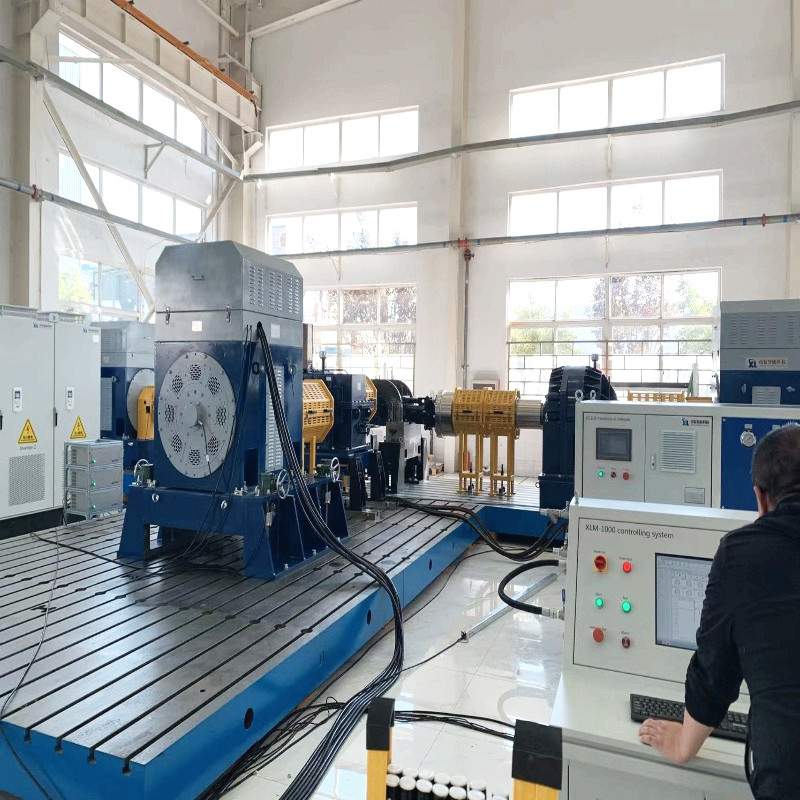

SSCD series AC dynamometer is the load for dynamic mechanical power test. The standard SSCD series AC dynamometer consists of an AC dynamometer, a set of torque and speed measuring sensors, a base and a flange connected to the power machinery. The system should be matched with the DTC series frequency conversion inverter system and together with XLP1000 series control system.

Working principle

Its working principle is to invert the AC power from the AC dynamometer into DC power through the DTC inverter and then invert it into AC power for grid connection; the DTC frequency conversion inverter system adjusts the power grid current of the AC dynamometer to control the speed and torque of the prime mover . For example, when used together with the XLE1000 series measurement and control system produced by our company, it can not only accurately measure and control the speed and torque of various rotating power machinery, but also can control the temperature, pressure, flow, current, voltage, etc. Parameters are measured and controlled.

Automatic test function

The automatic experiment function means that after the user specifies the test series and test-related parameters on the software interface, the software will actively control the working state of the dynamometer according to the pre-set experimental steps and combined with the real-time working conditions of the equipment obtained during the experiment. How the experiment works. The automatic experiment process does not require human operation, and all control and data collection and analysis are completed by this software.

FAQ

Q: What's the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q:How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What's your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What's the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors production cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q: Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
