SSCH45-4200/17000 45kW 95Nm ±0.2%FS 17000RPM High Accuracy Vehicle Motor Performance Dynamometer Test Bench System

Dynamometer Test Bench Composition Description

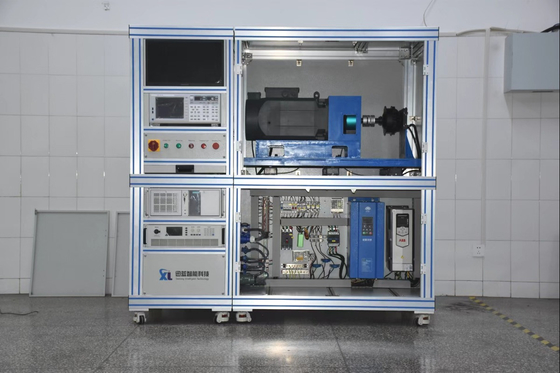

The overall test bench is shown in the figure above, which mainly includes a electric dynamometer, a mounting bracket for the motor under test, a connecting shaft, a protective cover, etc.

The electric dynamometer contains an air cooling device (fan), a rotary encoder and a shaft temperature monitoring system. The motor bearings are imported bearings; the speed signal is sent to the variable frequency drive cabinet through the bus, and the torque signal is sent to the control system using the original shielded cable to form Closed-loop control. At the same time, the speed and torque values are stored, displayed, and adjusted and controlled in the computer unit.

Application

The Seelong E-Motor test beds are used for analyzing and determining electrical, mechanical, thermal and acoustic properties. Functionality, reliability and durability tests and cold start performance measurements can be implemented under realistic conditions. The integrated Seelong TCM automation system allows for fully automatic runs, so time and cost-efficient test ones for all relevant test procedures.

All measurement data is saved with a uniform time stamp and can be processed further with the data post processing tool, The optional integration of the "Virtual Proving Ground" technology based on SeeLong SLM also offers a virtual development and test environment to implement integration, optimization and validation tasks even on the test bed.

Technical parameters

• Small size, easy installation;
• Simple structure, easy operation and maintenance;
• High braking moment;
• High accuracy of measurement;
• Work stably and reliably;
• Achieving High Precision Instantaneous Speed Measurement with Magnetoelectric Velocity Sensor;
• Fast response, suitable for dynamic test

SSCH45-4200/17000 Electric Dynamometer Technical Parameters

SSCH45 electric dynamometer has the following significant advantages:

• Energy saving

The basic principle of Hydraulic and eddy current dynamometer is to convert the mechanical energy generated by the prime mover into heat energy and take away the heat after cooling by water. The energy emitted by the prime mover cannot be recovered, and energy is also consumed during the conversion process. However, the electric dynamometer can convert the mechanical energy generated by the prime mover into electrical energy and feed it back to the internal grid for use by other equipment.

• Loading features

The loading characteristics of the electric dynamometers are constant torque characteristics from zero speed to rated speed, and constant power characteristics from rated speed to maximum speed, which fully comply with the load characteristics of power machinery. Generally, the hydraulic dynamometer can only be loaded in one direction, while an eddy current dynamometer can be loaded in two directions, it cannot be used as a power back-drag prime mover, while the electric dynamometer can easily realize two-way loading and can be used as a power back-drag prime mover.

• Maintainability

Due to the use of accessories that fully comply with national standards, users do not have to rely on the manufacturer for maintenance, and can completely carry out daily maintenance by themselves, even when it is necessary to replace the host and sensors. The electric dynamometer is the most ideal replacement product for the technological transformation of enterprise testing equipment due to its simple structure and maintenance-free, in addition to its excellent speed control performance, it also has a significant energy-saving effect.

• Openness

The electric dynamometer is the test core of the whole test bench system. It adopts the variable frequency inverter system as the actuator of the electric dynamometer and adopts Seelong’s new generation test and control system as the control core of the test bench system. Seelong software test system is developed based on C# platform and can carry out high dynamic control of the system. Seelong test and control system can automatically complete the relevant setting test cycle and user-defined dynamic test cycle; At the same time, Seelong test and control system can integrate external auxiliary equipment, perform centralized communication and control.

• Modular design

Seelong's test bench system adopts modular design, according to different test requirements and budgets, our professional engineers will customize different dynamometer test bench systems for customers.

Let’s become partners, we will provide lifetime free software system upgrade for our dynamometer test bench system (Excluding the development of new applications).

Typical application

1) Research on motor performance test and control
2) Motor efficiency evaluation
3) Feed performance evaluation of motor system
4) Motor durability assessment, etc.
