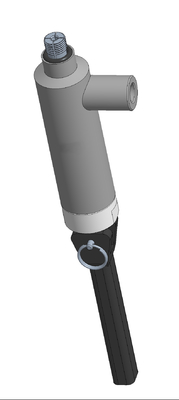

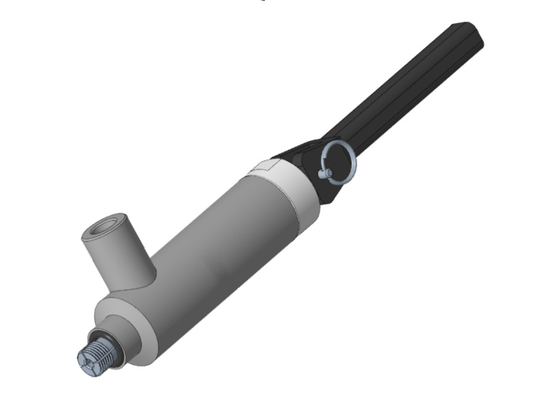

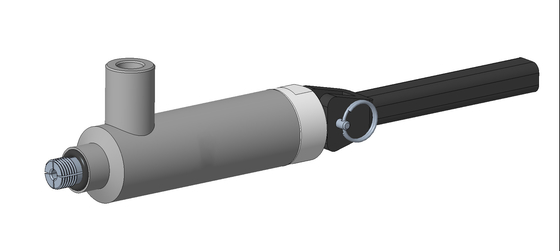

Handle Type Quick Connector TF120
TF120 series Quick Connector adopts eccentric handle clamping, which is mostly used for manual testing. It can realize pressure and Air tightness Testing of internal threaded parts, as well as functional operations such as filling, plugging and emptying.
Eccentric handle clamping, instant connection, simple operation, safe and reliable, greatly improve the test efficiency and connection reliability.
Front-end O-ring is used to achieve the end face seal, which has certain requirements to the flatness and roughness of the end face of the measured parts.
TF120 Quick Connector Advantages
1) Reduce thread damage caused by frequent insertion and removal.
2) Instantaneous connection seal, high connection efficiency, suitable for high frequency, a large number of repeated insertion and removal test requirements.

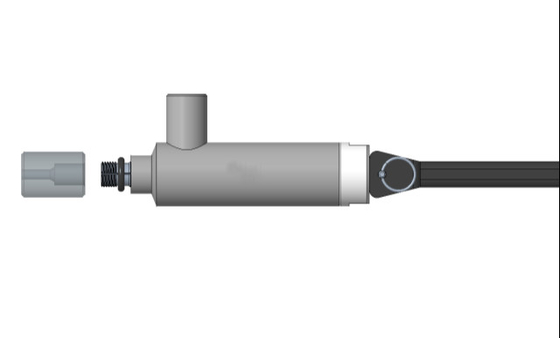

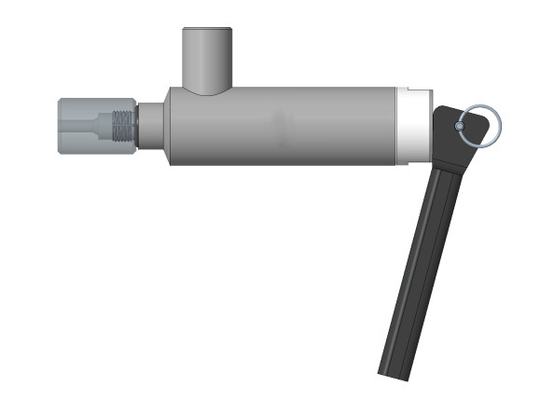

3) Unique thread clamp design, without the aid of tools, pressing the handle can realize the instant sealing connection of the thread.
4) Unique eccentric handle clamping and sealing design, even if subjected to high side force, can also firmly lock the connector to ensure the reliability of the connection.
5) The handle design is ergonomic, and the operation is more convenient.
6) The seal is simple to replace and easy to maintain.
TF120 Series Technical Parameters
| Applicable interface |

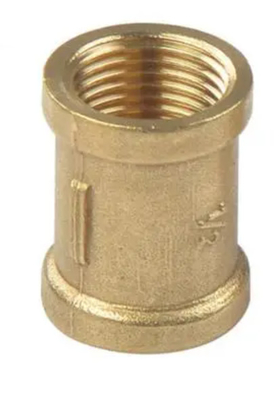

Internal thread: including metric thread, pipe thread, taper pipe thread and American standard taper pipe thread |
| Body material |
Corrosion-resistant stainless steel and aluminum alloy, other materials can also be selected according to customer needs |
| Seal material |
The main seal is made of nitrile rubber (NBR) by default, and other materials can be selected according to customer requirements |
| Applicable medium |
Regular fluid or non-corrosive gas |
| Mode of operation |
Eccentric handle clamping |
| Operating pressure |
0-350 bar |
|
Operating
temperature
|
-15℃ - +100℃ |
| Leakage rate* |
10-4 Pa×m3/s |
* This is the minimum leakage rate of the standard products; We can provide devices with a lower leakage rate on demand; This depends on the detailed specifications provided by the customer (test method, test temperature and test pressure) and the quality of the sample provided by the customer (i.e. the surface treatment of the sealing surface, roughness and dimensional tolerances).
TF120 Series Dimensions (unit: mm)
| Body Number |
Fluid Hole B1 |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L |
| 1 |
G1/8” |
16 |
25 |
25 |
8 |
8 |
15 |
40 |
90 |
120 |
110 |
| 2 |
G1/4” |
20 |
28 |
28 |
10 |
8 |
15 |
40 |
90 |
120 |
110 |
| 3 |
G3/8” |
24 |
32 |
32 |
12 |
8 |
15 |
50 |
105 |
120 |
125 |
| 4 |
G1/2” |
28 |
37 |
37 |
12 |
10 |
18 |
55 |
105 |
120 |
125 |
| 5 |
G3/4” |
33 |
40 |
40 |
14 |
10 |
18 |
65 |
120 |
120 |
145 |
| 6 |
G1” |
40 |
49 |
49 |
14 |
10 |
18 |
75 |
145 |
120 |
170 |
TF120 Series Application
1. Engine testing industry
2. New energy testing industry
3. Instrument testing
4. Refrigeration and air conditioning industry
5. Gas, liquid fast filling
6. General industrial quick sealing
