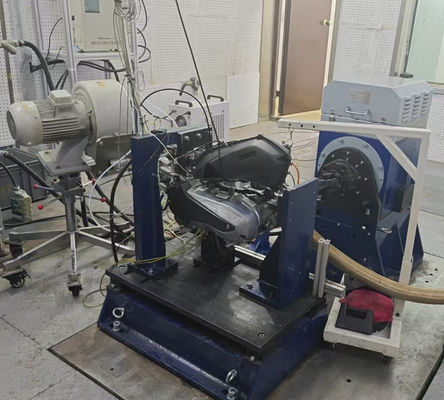

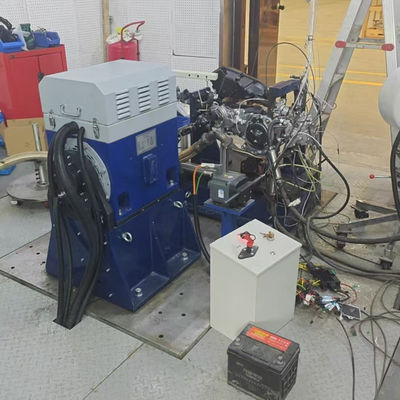

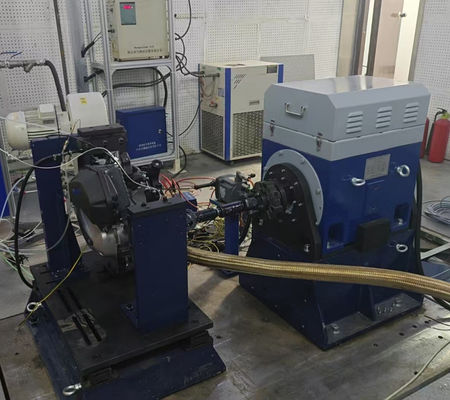

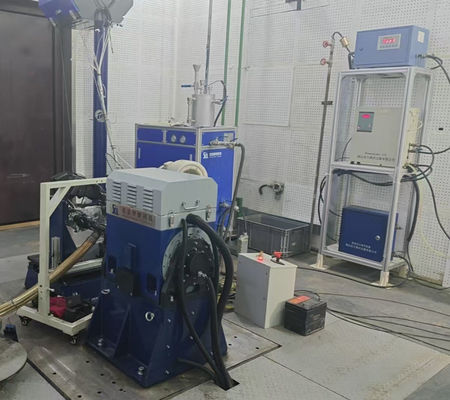

SSCG30-1500/6000 30kW 191Nm 6000 RPM Cost-effective Air-cooled Gasoline Engine Test Bench

SSCG30-1500/6000 30kW 191Nm 6000 RPM Cost-effective Air-cooled Gasoline Engine Test Bench

Product description

The core components of the engine test bench include the following items:

• Engine: It is served as the core of the test.
• Bench structure: Providing a platform for the engine to be installed and fixed, ensuring stability during the test.

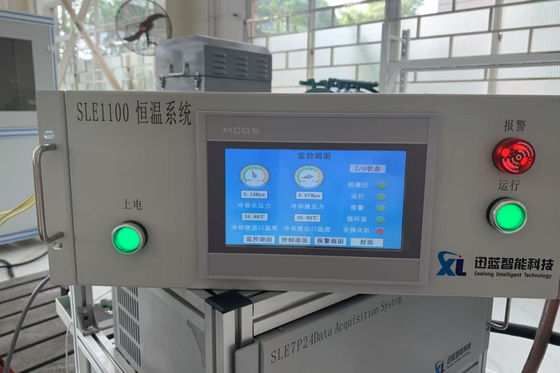

• Control system: Including power, fuel supply, intake and exhaust control modules for regulating the engine's operating state.
• Sensors and measuring devices: Collect key data on engine operation such as speed, temperature, pressure and fuel consumption.
• Data acquisition and processing system: Record and process sensor data in real time to provide a basis for analyzing engine performance.
• Loading device: Simulates the load conditions of the engine in actual use.

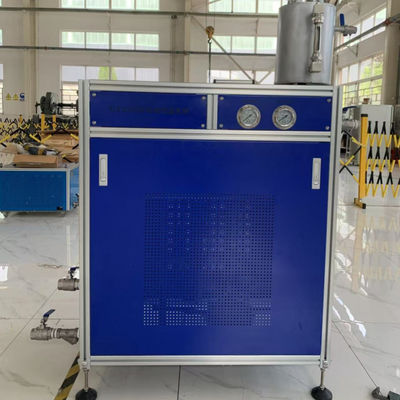

• Cooling system: Maintains engine temperature to ensure it is in the best working condition.
• Auxiliary facilities: including the lubricating oil system, radiator, exhaust purification device, etc., support engine operation and meet environmental standards.
• Other specialized equipment may also be used depending on the type of test requirement.

Working principle

Keeping the rotational speed of the gasoline engine constant, by changing the load of the dynamometer and the opening degree of the throttle, the relationships among fuel consumption rate, power and other parameters under various working conditions are measured.

Purpose

1. Experimental objective: To be familiar with the instruments, equipment and experimental methods for determining the speed characteristics of gasoline engines.

2. Based on the measured partial load speed characteristics of the gasoline engine, analyze the performance of the gasoline engine.

Experimental Principle

The speed characteristic of a gasoline engine is the relationship between the performance parameters of the engine and the rotational speed when the throttle is partially open, as shown in Figure 1. External characteristics represent the highest performance that a gasoline engine can achieve.

This characteristic can determine the maximum power and maximum torque it can achieve as well as the corresponding rotational speed, which is the main basis for calibrating and selecting gasoline engines.

The method for testing the external characteristics of a gasoline engine is to fix the throttle of the gasoline engine at the maximum position and measure the relationship between performance parameters (such as Ttq, be, Pe, etc.) and the rotational speed.

SSCG30-1500/6000 Gasoline Engine Test Bench Technical Parameters

The advantages of SSCG30-1500/6000 Gasoline Engine Test Bench

Real simulation: The engine test bench can truly simulate various working conditions of the engine during vehicle operation, such as acceleration, deceleration, and load changes, thereby accurately evaluating the performance of the engine in the actual working environment.

Precise testing: Through high-precision measuring instruments and control systems, the engine test bench can accurately measure various performance indicators of the engine, such as power, torque, fuel consumption rate, emissions, etc., providing accurate data support for the design and optimization of the engine.

Strong flexibility: The engine test bench can adjust the test parameters and working conditions as needed, and flexibly conduct various types of engine performance tests, such as steady-state performance tests, dynamic performance tests, and emission performance tests, etc.

Safe and reliable: Engine test benches usually adopt automated control and safety protection systems to ensure the safety of operators and the stable operation of equipment during the test process.

The Characteristic Curve of the SSCG30-1500/6000 Gasoline Engine Test Bench

Company profile

Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech enterprise specializing in equipment measurement, control, design, manufacturing, and sales services for power engineering systems in various fields such as aerospace, automotive, and new energy; The company is located in the beautiful peony city of Luoyang.

The main products are electric dynamometer, torque sensor, measurement and control system and condition guarantee system and other products. Establish a complete sales service system, adhering to the business philosophy of quality for survival and service for development, to provide users with power engineering measurement and control solutions in various fields.

Seelong's advanced design philosophy and rich industry experience give the company a technological advantage ahead of competitors in the same industry, and the company's products can better meet the actual market demand. Seelong is brave in innovation. While valuing its own technological breakthroughs and development, it has established long-term and in-depth cooperative relationships with multiple domestic research institutions such as Tsinghua University and Shandong University. It has passed CE certification, ISO9001 quality system certification, AAA level enterprise certification, obtained more than ten invention patents, and two software copyrights. It has provided professional equipment and services to more than a hundred users both domestically and internationally, The enterprise has won the trust of domestic and foreign customers with its cost-effective products and high-quality services, and has established a long-term win-win strategic partnership.

Since the establishment of the company, the number of customers served has grown rapidly. In the fields of ultra-high-speed aerodynamics and new energy customized testing, relying on domestic leading technology and integration capabilities, the company's products quickly received wide acclaim in state-owned enterprises and scientific research institutes.

All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd. warmly welcome sincere cooperation from domestic and foreign customers, and work together for the future and common development.

Company Certificates

Packaging and Shipping


FAQ

Q: What's the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q:How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What's your payment term?
A: Normally 40% T/T deposit, pay in full before shipment.
Q:What's the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors production cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q: Can I come to visit your factory?
A: Sure, you are always welcomed to have a visit.
