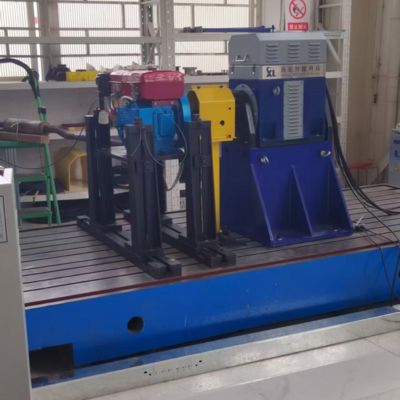

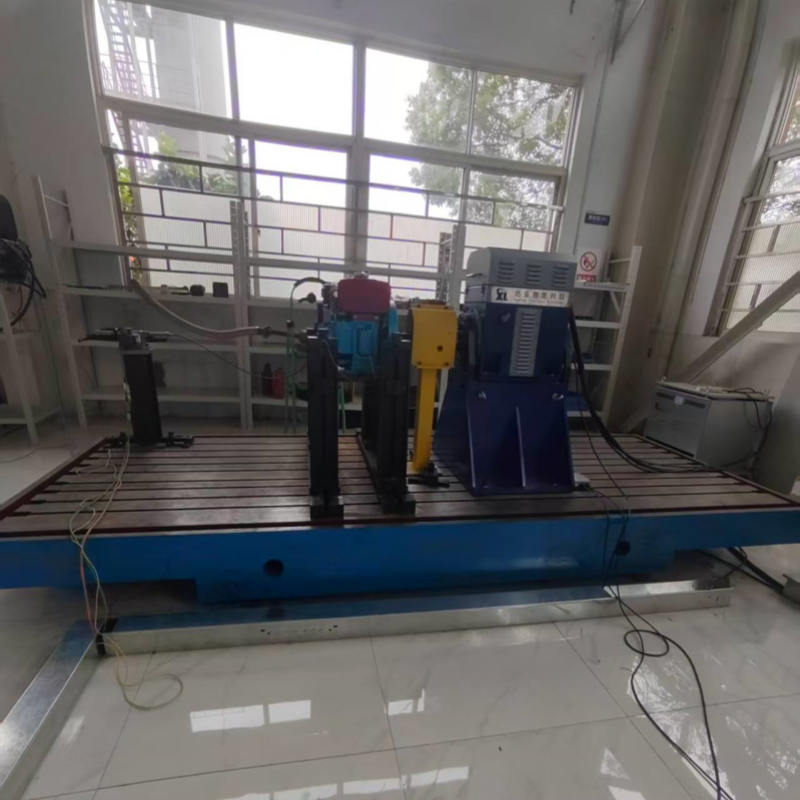

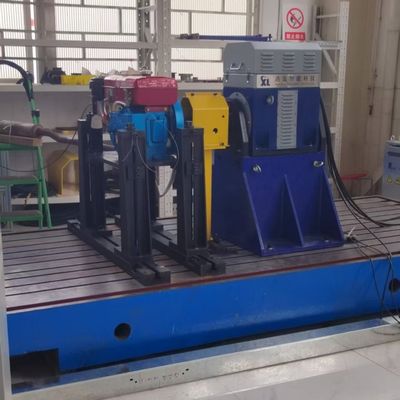

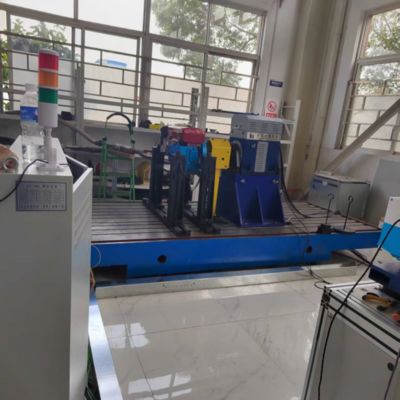

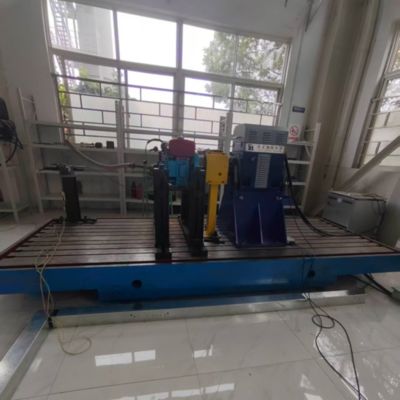

SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench

SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench

1. SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench Component Description

The SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench is a high-precision integrated testing system specifically designed for the research and testing of 75kW-class UAV engines. This system integrates a high-precision electric dynamometer, a modular measurement and control system, and a multi-channel data acquisition unit, enabling comprehensive evaluation of key performance parameters of turboshaft/turboprop engines, such as torque, speed, power, and fuel consumption.

2. SSCG75-3000/10000 75kW Electric Dynamometer Technical Parameters

3. SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench Core Advantages

1) High-precision control: The torque flange and fuel consumption meter achieve an accuracy of 0.2%FS, and combined with the PID algorithm, speed fluctuation control is realized (typical value < ±0.1%), ensuring the reliability of test data.

2) Four-quadrant energy management: Supports dual-mode operation of electric/generator, with high energy feedback efficiency, and adapts to the full-condition testing needs of drone engines.

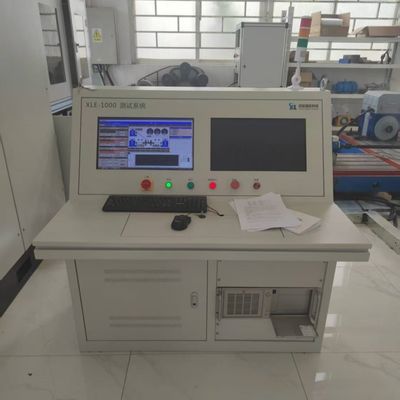

3) Modular scalability: The XLE-1000 measurement and control system supports multi-channel data acquisition, and optional components can be flexibly adapted to different test scenarios.

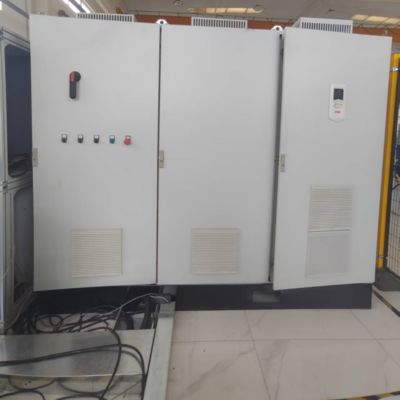

4) Safety protection: The frequency converter system integrates overload, overvoltage, and overheat protection to ensure stability during high-speed testing.

5) Low vibration design: The shock absorber is adapted to vibration frequencies of 5-10Hz, and the cast iron plate ensures testing accuracy.

4. SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench Application Areas

1) Development of UAV engines: Full-process testing of starting, acceleration, and braking for 75kW-class turboshaft/turboprop engines.

2) Aerospace propulsion verification: Supports durability testing of difficult-to-machine materials such as high-temperature alloys and titanium alloys.

3) New energy power testing: Energy feedback efficiency assessment of hybrid Powertrain systems.

4) Industrial motor calibration: used for high-precision motor torque-speed characteristic calibration.

5. SSCG75-3000/10000 75kW Unmanned Aerial Vehicle Engine Electric Dynamometer Test Bench Reference Standards

1) Electrical safety standards: Complies with IEC 60034-30-1 energy efficiency standards.

2) Data acquisition standards: in accordance with the ISO 10012 measurement management system.

3) Environmental adaptability standard: Meets the environmental testing requirements of GB/T 2423 series.

6. UAV Engine Electric Dynamometer Test Bench Model List

Supports customized services: Speed range, torque range, test software functions, and special environment adaptation solutions can be customized according to requirements.

7. Delivery and After-Sales Support

Delivery services

1) Standard models: Ships within 90 days (including pre-testing before delivery to ensure quick installation upon arrival).

2) Customized models: Delivery in 90-120 days, covering international logistics and distribution to major regions worldwide including Europe, America, Southeast Asia, and the Middle East (sea / land transportation options available, including secure packaging and moisture-proof and rust-proof treatment).

3) Supporting services: We provide complete CE and ISO certification documents and certificates of origin, and a dedicated logistics specialist will follow up throughout the process to assist with customs clearance and ensure the safe and timely delivery of large equipment to the site.

After-sales support

1) Warranty commitment: 1-year warranty on core components (dynamometer, torque flange), lifetime maintenance; free troubleshooting and repair services during the warranty period, excluding damage caused by human error.

2) Technical support: 24/7 bilingual (English and Chinese) service, response time ≤ 4 hours

3) Installation, commissioning, and training services: The user is responsible for on-site basic installation. Seelong will dispatch two professional technicians to provide on-site guidance (including equipment positioning and calibration, and pipeline / line connection specifications); equipment commissioning will be handled entirely by us (including power-on testing, parameter calibration, and system linkage testing); 3 days of free professional operation training will be provided (covering equipment operation, parameter settings, daily maintenance, and troubleshooting) to ensure that operators are proficient in using large-scale equipment.
