SSCD350-1800-4000 350kW Automotive Axles and Transmission Test Electric Dynamometer Bench System

SSCD350-1800-4000 Automotive Axle Electric Dynamometer Test Bench System

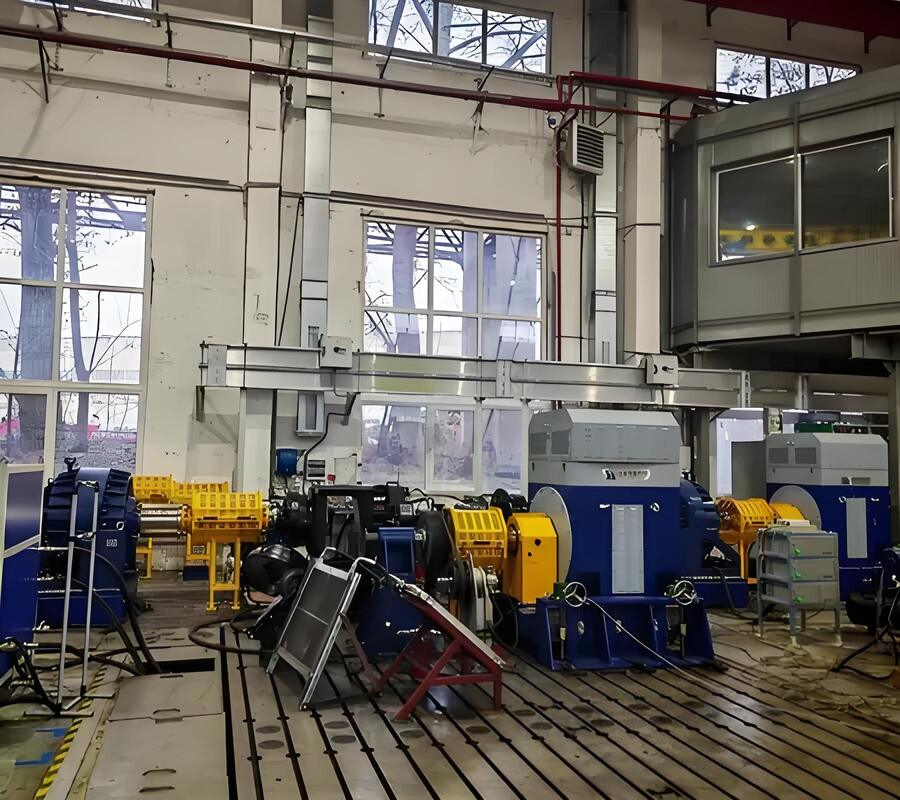

1. SSCD350-1800-4000 Automotive Axle Electric Dynamometer Test Bench System Component Description

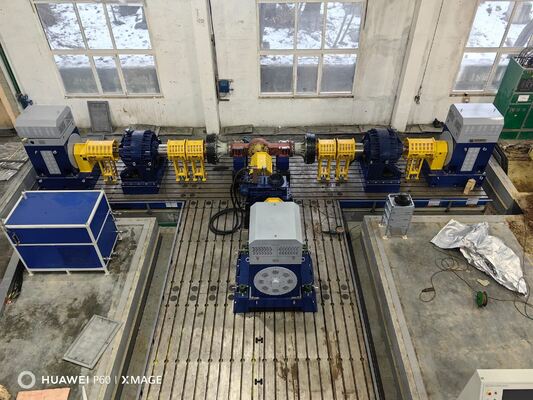

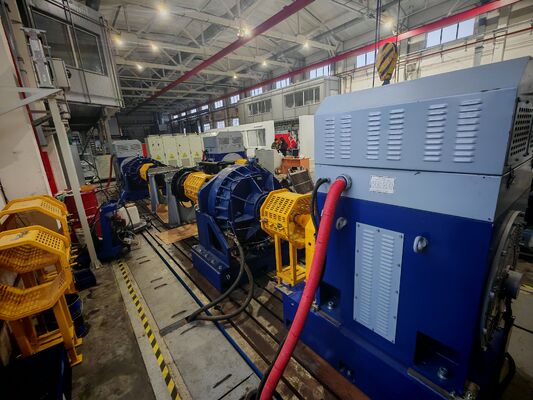

The SSCD350-1800-4000 Automotive Axle Electric Dynamometer Test Bench System is a high-performance comprehensive test platform specifically designed for testing 350kW-class automotive axles and related transmission systems. This system integrates core modules such as a drive dynamometer, load dynamometer, high-precision torque flange, intelligent measurement and control system, and battery simulator. It comprehensively covers the performance verification, durability testing, and reliability assessment needs of commercial vehicle axles and special vehicle transmission systems, providing a complete solution for axle R&D, production testing, and more.

2. SSCD350-1800-4000 Automotive Axle Electric Dynamometer Technical Parameters

3. SSCD350-1800-4000 Automotive Axle Electric Dynamometer Test Bench System Core Advantages

1) Dual dynamometers work in coordination, providing comprehensive test scenarios: Equipped with dual SSCD350-1800-4000 dynamometers for both drive and load, each unit has a rated power of 350kW, a torque of 1858Nm, and a maximum speed of 4000rpm. It can simulate the dual driving and load conditions of automotive axles in actual operation, covering the full-condition performance testing needs of commercial vehicles and special vehicles axles, and is suitable for torque and speed response verification under different road conditions.

2) Industry-leading measurement accuracy: Utilizing HBM high-precision torque flanges with an accuracy of 0.15%FS, a speed resolution of ±1 rpm, and a dynamic response of ≤1 ms; paired with a Seelong power analyzer with a basic accuracy of ≤0.03%, combined with a multi-dimensional data acquisition system (temperature accuracy ±0.5℃, vibration frequency coverage 10Hz-10kHz), it achieves precise acquisition and analysis of key parameters such as torque, power, temperature, and vibration.


3) Strong system stability and compatibility: Siemens variable frequency inverter systems employ vector control technology, featuring triple protection against overcurrent, overvoltage, and overheating, and are compatible with a wide voltage input range of 380V-480V; the battery simulator supports a wide voltage output range of 36-1200V and a high current of ≥1000A, is compatible with 8 types of battery models, and has an energy feedback efficiency of ≥90%, meeting the power matching needs of different vehicle axles while achieving energy saving and consumption reduction.


4) Scientific structural design, safe and reliable: The adjustable mounting bracket has a center height of 250-600mm, a load-bearing capacity of ≥1000kg, and a flatness error of ≤0.02mm/m on the mounting surface; the HT350 cast iron plate is combined with a honeycomb shock-absorbing structure to ensure the stability of high-speed testing; the fully enclosed protective cover has built-in sound-absorbing material and is linked to the system (starting and stopping immediately), taking into account both safety protection and noise reduction requirements.


5) Intelligent measurement and control, efficient operation: The XLP-1000 measurement and control system is equipped with an I7 industrial computer (32G memory + 1T hard drive), and dedicated software supports working condition setting, real-time data monitoring and automatic report generation; the lubrication station has oil supply pressure regulation, oil temperature control and oil level warning functions, and the dual-circuit design of the chiller is precisely adapted to the cooling needs of the dynamometer and axle, greatly reducing the cost of manual intervention.


4. SSCD350-1800-4000 Automotive Axle Electric Dynamometer Test Bench System Application Areas


1) Commercial vehicle axle field: power, torque, transmission efficiency, and durability testing applicable to commercial vehicle axles such as heavy trucks, buses, and pickups, covering performance verification and factory testing of various axles such as drive axles, steering axles, and support axles.


2) Special vehicle sector: Specialized testing of axles for special vehicles such as construction machinery (excavators, loaders), mining vehicles, and military vehicles to meet the reliability and stability assessment requirements under high torque and complex working conditions.


3) Axle research and development field: We provide R&D and testing platforms for axle manufacturers and research institutes, and support customized testing solutions for axle structure optimization, transmission system matching, and energy-saving technology R&D.


4) Third-party testing organizations: compliant with national and international standards, providing axle product standard compliance testing services to quality inspection agencies and certification bodies, covering all dimensions of testing including safety performance, environmental performance, and durability.

5. SSCD350-1800-4000 Automotive Axle Electric Dynamometer Test Bench System Reference Standards

QC/T 533－2020 “Commercial Vehicle Drive Axle Assembly”

QC/T 534－2020 “Bench Test Evaluation Indexes for Automobile Drive Axle”

GB/T 23920-2024 “Construction Machinery - Axles”

JB/T 5929-1991 “Reliability Test Methods for Drive Axle of Construction Machinery”

JB/T 10634-2023 “Electric Dynamometer”

6. Automotive Axle Electric Dynamometer Test Bench System Model List

7. Delivery and After-Sales Support

Delivery

Standard models ship within 90 days, while customized models ship within 120-150 days (including international logistics and customs clearance assistance). Delivery includes a complete set of equipment, installation instructions, operation manual, calibration certificate, spare parts list, and other complete documentation. On-site installation and commissioning are supported.

After-sales service

1) Warranty Service: Core components (dynamometer, torque flange, frequency converter system) are guaranteed for 1 year, and faulty components will be repaired or replaced free of charge during the warranty period.

2) Technical Support: Lifetime bilingual (Chinese and English) technical support is provided, with a response time of ≤4 hours; remote debugging (computer-based), modular solution configuration guidance, and online answers to technical questions are supported.

3) Training Services: We provide 2 days of free on-site operation training, covering equipment installation, parameter settings, operating condition testing, data analysis, and daily maintenance, to ensure that users are proficient in operating the system.
