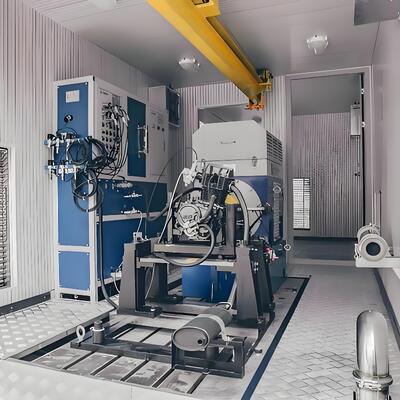

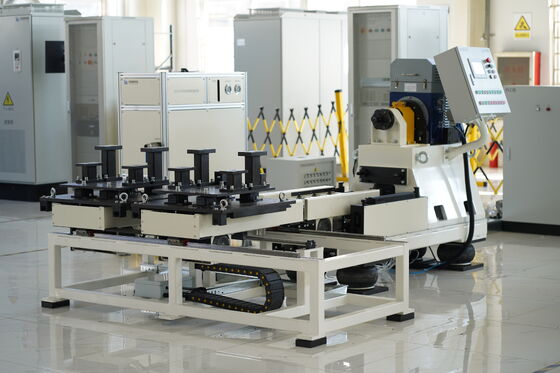

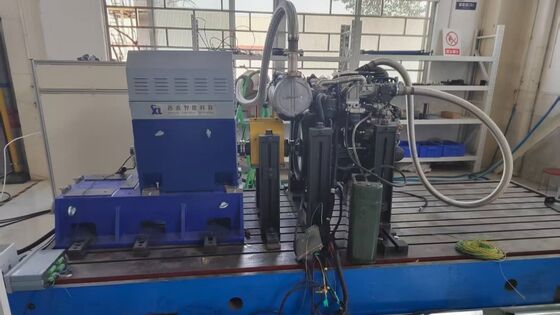

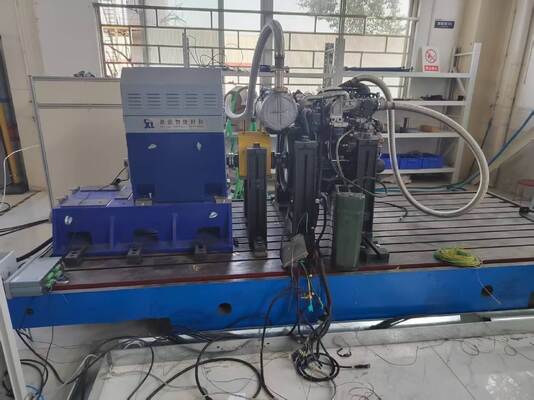

SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System

SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System
SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System

Large Image :  SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System

Product Details:
Place of Origin: China
Brand Name: Seelong
Certification: CMC, CE, ISO9001, ISO45001, ISO14001
Model Number: SSCG90-3000/10000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 25000-100000 dollars per set
Packaging Details: Seaworthy Plywood
Delivery Time: 6-8 working weeks
Payment Terms: T/T
Supply Ability: 7 sets per month

SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System

Description
Certifications: CMC, CE, ISO 9001, ISO 45001, ISO 14001 Constant Torque Range: 0-3000rpm
Constant Power Range: 3000-10000rpm Warranty: 1 Year
Max Working Speed: 10000rpm Rated Torque: 286Nm
Rated Power: 90kW Measurement Range: 0-500Nm
Weight: 800kg Rated Voltage: 380V
Type: Electric Dynamometer
Highlight:

90kW UAV engine dynamometer

,

AC dynamometer test bench

,

10000 RPM engine testing system

SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System



1. SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System Composition Description



The SSCG90-3000/10000 90kW UAV engine test bench is a comprehensive testing system designed specifically for the research and verification of medium- and high-power UAV engines. This system integrates a high-precision electric dynamometer, a modular measurement and control system, and a multi-channel data acquisition unit, enabling comprehensive evaluation of key performance parameters such as torque, speed, power, and fuel consumption of 90kW-class turboshaft/turboprop engines.

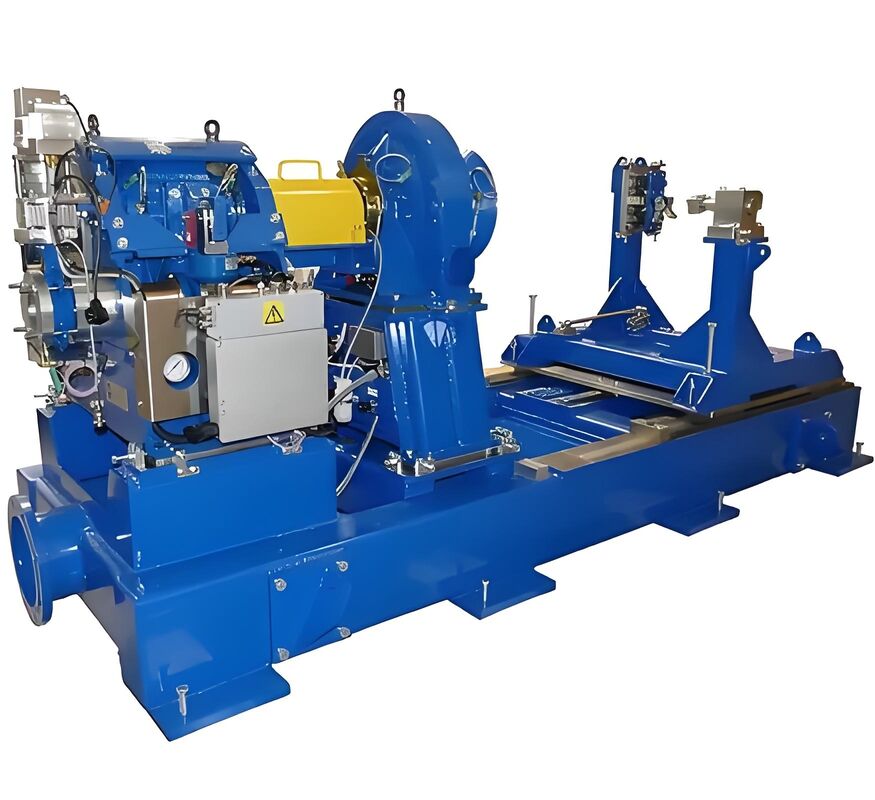

SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System 0



Component Name Core Specifications Brand
SSCG90-3000/10000 electric dynamometer Power: 90KW, Rated speed: 3000rpm, Maximum speed: 10000rpm, Rated torque: 286Nm, Constant power speed range: 3000-10000rpm, Constant torque speed range: 0-3000rpm, Air-cooled Seelong
Torque flange 0-500Nm, accuracy: 0.2% FS HBM
Variable frequency inverter system ABB brand, 90kW, three-phase AC 380V±10% input voltage, with multiple protections against overload, overvoltage, and overheating. ABB
XLE-1000 measurement and control system Industrial PC: IPC710; CPU: Intel Core I7; Memory: 32GB DDR4; Hard Drive: 1TB SSD; Pre-installed XLE-1000 Measurement and Control System Software (supports real-time data acquisition, curve analysis, and report generation) Seelong
Data acquisition system Includes a low-temperature acquisition module (6 channels), a high-temperature acquisition module (8 channels), an analog acquisition module (8 channels), a low-temperature acquisition sensor (PT100), a high-temperature sensor, a pressure sensor, an atmospheric pressure sensor, a temperature and humidity sensor, and a data acquisition box, etc. Seelong
Servo throttle actuator Performance: 150N actuation force, 120mm stroke; Electronic throttle simulation: Dual-channel 0-2.5V/5V Seelong
fuel consumption meter Weighing type, measuring range: 5-30Kg/h, accuracy: 0.2% FS Seelong
Centrifugal variable frequency fan Used for heat dissipation of the device under test; Power: 25KW Seelong
Optional - Coupling Permissible torque: 350 Nm; Permissible speed: 18000 r/min Seelong
Optional - Motor bracket Non-standard custom L-shaped motor bracket, wall thickness > 50mm Seelong
Optional - Cast iron plate Material: HT300 (tensile strength ≥300MPa); flatness: ≤0.05mm/m; surface roughness: Ra≤1.6μm; shock absorbers and cast iron plates ensure stability during high-speed testing. Seelong
Optional - Shock absorbers Type: Spring shock absorber; Rated load: 80-200kg/unit; Damping coefficient: 0.2-0.3; Applicable vibration frequency: 8-15Hz; The shock absorber and cast iron plate ensure stability during high-speed testing. Seelong



2. SSCG90-3000/10000 90kW Electric Dynamometer Technical Parameters

Parameters Specifications
Model SSCG90-3000/10000
Rated power 90kW
Rated speed 3000rpm
Rated torque 286Nm
Maximum speed 10000rpm
Constant power speed range 3000-10000rpm
Constant torque speed range 0-3000rpm
Cooling method air-cooled
Protection level IP54
Overload capacity 150% of rated power
Torque measurement accuracy ±0.2%FS
Speed measurement accuracy ±1rpm

3. SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System Core Advantages

1) High-precision control under all operating conditions: The torque flange and fuel consumption meter both achieve a high precision of 0.2% FS. Combined with the PID algorithm, it realizes speed fluctuation control over a wide speed range (0-10000rpm) (typical value <±0.1%), and seamless switching between constant torque (0-3000rpm) and constant power (3000-10000rpm) modes, ensuring the reliability and consistency of test data under different operating conditions.



2) Four-quadrant energy optimization: Supports dual-mode operation of electric/generator, optimizes energy feedback efficiency for full-condition testing needs such as start-stop, cruise, and sprint of medium and high power drone engines, and reduces testing energy consumption costs.



3) Flexible modular expansion: The XLE-1000 measurement and control system is compatible with multi-channel data acquisition. Optional components such as couplings and shock absorbers can be flexibly matched according to the testing requirements of different models of 90kW-class engines, adapting to diverse testing scenarios and improving system reusability.



4) High-speed safety protection: The frequency conversion system integrates multiple protection mechanisms for overload, overvoltage, and overheating. It strengthens the equipment stability design for high-speed operation scenarios of 10,000 rpm, effectively reducing the risk of equipment failure in high-speed testing and ensuring that the testing process is safe and controllable.



5) Low-interference and stable design: The shock absorber is precisely adapted to the 8-15Hz vibration frequency. Combined with the high rigidity and low vibration characteristics of the HT300 cast iron plate, it greatly reduces external interference during high-speed operation and ensures that the test accuracy is not affected over a wide speed range.

4. SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System Application Areas

1) Unmanned Aerial Vehicle (UAV) Engine Development: This includes full-process testing of 90kW-class turboshaft/turboprop engines, covering start-up, acceleration, cruise, and braking. It precisely verifies performance parameters across different speed ranges (constant torque 0-3000rpm, constant power 3000-10000rpm), supporting optimized engine design.



2) Light aviation power verification: Durability testing of power systems for light helicopters, short-haul transport drones, etc., can evaluate the reliability of engines under continuous operation at high speeds (10,000 rpm) and the compatibility performance of materials such as high-temperature alloys.



3) Small and medium-sized new energy power systems testing: Supports the evaluation of energy feedback efficiency of small and medium-sized hybrid drones, optimizes energy utilization schemes for power systems with a power level of 90kW, and improves endurance.



4) Industrial high-speed motor calibration: Used for torque-speed characteristic calibration of medium-power motors requiring a wide speed range (0-10000rpm), meeting the high-precision control needs of industrial drives, aerospace motors, etc.

5. SSCG90-3000/10000 90kW UAV Engine Test Dynamometer Bench System Reference Standards

  • Electrical safety standards: Meets IEC 60034-30-1 energy efficiency requirements, ensuring stable operation of the equipment at 380V±10%.
  • Data acquisition standards: Follow the ISO 10012 measurement management system to ensure the accuracy of sensors (such as PT100 temperature sensors) and the consistency of data acquisition.
  • Environmental adaptability standards: Meet the environmental testing requirements of GB/T 2423 series to ensure that the equipment can operate normally in an environment ranging from -10℃ to 40℃.

6. UAV Engine Electric Dynamometer Test Bench Model List

Model Power (KW) Torque (Nm) Rated Speed (rpm) Max Speed (rpm) Constant Torque Range (rpm) Constant Power Range (rpm)

Torque Measurement Accuracy

(%FS)

SSCG30-3000/10000 30 95 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG45-3000/10000 45 143 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG60-3000/10000 60 191 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG75-3000/10000 75 238 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG90-3000/10000 90 286 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG110-3000/10000 110 350 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG132-3000/10000 132 420 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG160-3000/10000 160 509 3000 10000 0-3000 3000-10000 0.05/0.1/0.2
SSCG200-3000/8000 200 637 3000 8000 0-3000 3000-8000 0.05/0.1/0.2
SSCG250-3000/8000 250 796 3000 8000 0-3000 3000-8000 0.05/0.1/0.2
SSCG300-3000/7500 300 955 3000 7500 0-3000 3000-7500 0.05/0.1/0.2
SSCG350-3000/7500 350 1114 3000 7500 0-3000 3000-7500 0.05/0.1/0.2
SSCG400-3000/7500 400 1273 3000 7500 0-3000 3000-7500 0.05/0.1/0.2



Supports customized services: Speed range, torque range, test software functions, and special environment adaptation solutions can be customized according to requirements.



7. Delivery and After-Sales Support



Delivery services



1) Standard models: Ships within 90 days (including pre-testing before delivery to ensure quick installation upon arrival).



2) Customized models: Delivery in 90-120 days, covering international logistics and distribution to major regions worldwide including Europe, America, Southeast Asia, and the Middle East (sea / land transportation options available, including secure packaging and moisture-proof and rust-proof treatment).



3) Supporting services: We provide complete CE and ISO certification documents and certificates of origin, and a dedicated logistics specialist will follow up throughout the process to assist with customs clearance and ensure the safe and timely delivery of large equipment to the site.



After-sales support



1) Warranty commitment: 1-year warranty on core components (dynamometer, torque flange), lifetime maintenance; free troubleshooting and repair services during the warranty period, excluding damage caused by human error.



2) Technical support: 24/7 bilingual (English and Chinese) service, response time ≤ 4 hours



3) Installation, commissioning, and training services: The user is responsible for on-site basic installation. Seelong will dispatch two professional technicians to provide on-site guidance (including equipment positioning and calibration, and pipeline / line connection specifications); equipment commissioning will be handled entirely by us (including power-on testing, parameter calibration, and system linkage testing); 3 days of free professional operation training will be provided (covering equipment operation, parameter settings, daily maintenance, and troubleshooting) to ensure that operators are proficient in using large-scale equipment.



4) Remote service: Supports remote debugging via computer, system upgrades, and modular solution configuration guidance, quickly resolving technical issues during use and minimizing downtime losses.
