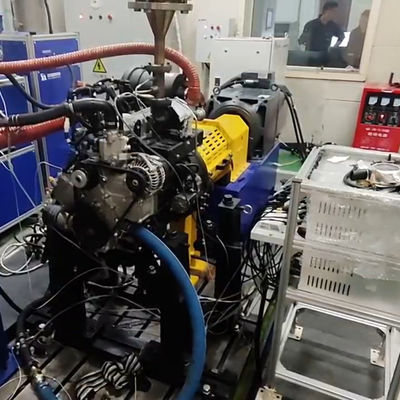

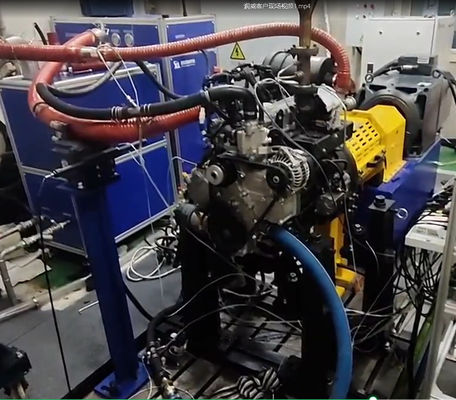

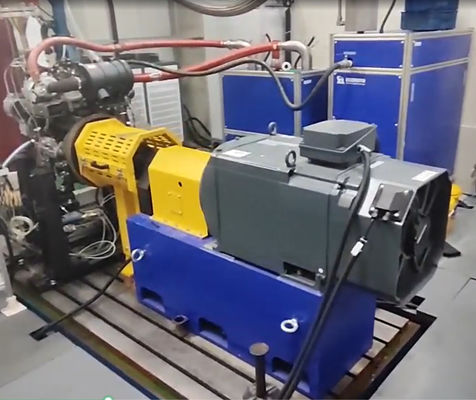

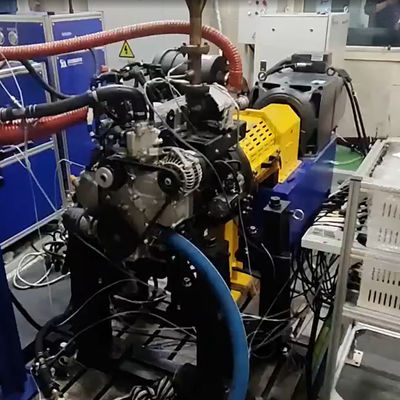

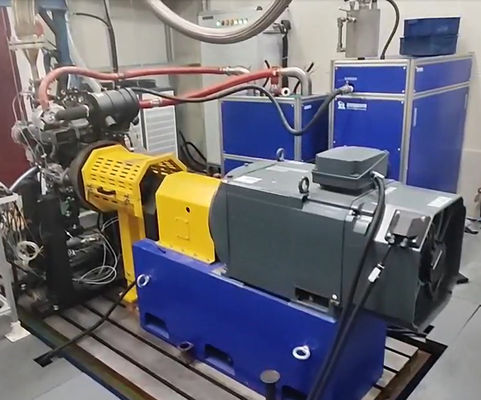

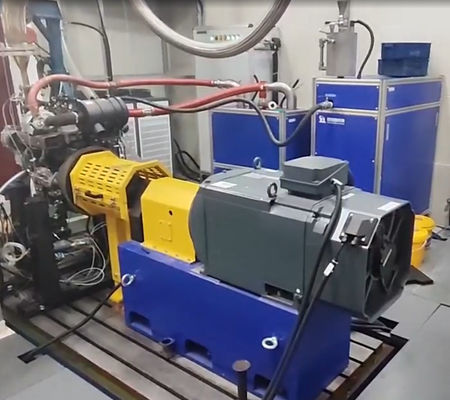

SSCD130-1750/4500 130 kW 840 Nm 4500 RPM Low inertia High Dynamic Responsiveness Diesel Engine Test Bench

SSCD130-1750/4500 130 kW 840 Nm 4500 RPM Low inertia High Dynamic Responsiveness Diesel Engine Test Bench

Product description

This system adopts Siemens AC motors as the test core;

The ABB ACS880 variable frequency inverter system is adopted as the variable frequency control system of the electric dynamometer. The electrical energy generated by the electric dynamometer is fed back to the power grid through the variable frequency inverter system.

Our company's brand-new generation of bench control system XLE1000 control system is adopted as the control core of the bench system, it can manually and automatically complete the test cycles stipulated by relevant regulations and the test cycles defined by the client.

Meanwhile, it provides interfaces for external auxiliary equipment such as fuel consumption meters and data acquisition systems, facilitating system communication and centralized control.

The main components of this test bench system include: electric dynamometer, variable frequency inverter system, data acquisition system, throttle control system, transient fuel consumption meter, coolant circulation temperature control system, intake system, exhaust ventilation system, auxiliary system, etc.

SSCD130-1750/4500 Diesel Engine Test Bench System Features

• High reliability

Adopting imported and mature products and technologies, it features stable performance and high reliability.]

• Excellent loading characteristics

The loading characteristics are constant torque characteristics from zero speed to rated speed, and are constant power characteristics from rated speed to maximum speed, which fully comply with the load characteristics of power machinery. The electric dynamometer can also conveniently load in both directions and can be used as a power driving prime mover.

• High dynamic responsiveness

It features fast dynamic response speed and high precision. Torque and speed control response time :<10ms.

• Energy-efficient and environmentally friendly

The electric dynamometer can convert the mechanical energy generated by the prime mover into electrical energy and feed it back to the power grid.

• Low inertia

It has low inertia and a high load-bearing capacity.

SSCD130-1750/4500 Diesel Engine Test Bench System Technical Parameters

Advantages of SSCD130-1750/4500 Diesel Engine Test Bench System

Real simulation of actual working conditions: The diesel engine test bench can accurately assess the performance of the engine in the actual working environment by realistically simulating various working conditions of the engine in vehicle operation, such as acceleration, deceleration, load changes, etc.

Accurate measurement: Through high-precision measuring instruments and control systems, the test bench can precisely measure various performance indicators of the engine, such as power, torque, fuel consumption rate, emissions, etc., providing accurate data support for the design and optimization of the engine.

Functional diversity: The test bench can adjust test parameters and conditions as needed to flexibly conduct various types of engine performance tests, such as steady-state performance tests, dynamic performance tests, emission performance tests, etc. In addition, practical operations such as starting, accelerating and decelerating can also be carried out, truly demonstrating the composition structure and working process of a common diesel engine.

Safe and reliable: The test bench is usually equipped with automated control and safety protection systems to ensure the safety of the operator and the stable operation of the equipment during the test. The equipment has a sturdy and durable structure, is flexible to move, and is equipped with a self-locking caster device. It is easy to operate and works quietly.

Teaching and Training: The diesel engine test bench is suitable for secondary and higher vocational and technical colleges and various automotive training institutions, and can meet the teaching needs of various colleges and universities for the combination of theory and practice of diesel engine systems. The equipment can perfectly demonstrate the working characteristics, working principles and working features of the diesel engine system. At the same time, it also has the functions of mechanical disassembly and assembly of the engine, data detection of the electronic control system, assessment, etc.
