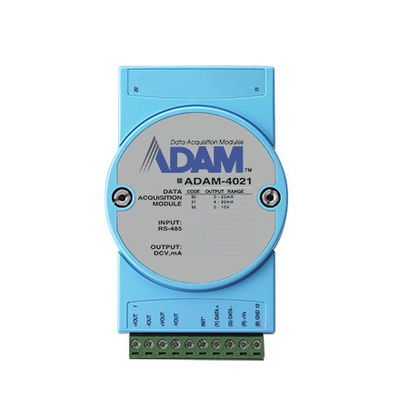

Single Channel Portable Data Acquisition Module

Single Channel Portable Data Acquisition Module
Single Channel Portable Data Acquisition Module Single Channel Portable Data Acquisition Module Single Channel Portable Data Acquisition Module

Large Image :  Single Channel Portable Data Acquisition Module

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: SL4021
Payment & Shipping Terms:
Minimum Order Quantity: 3
Price: USD 1200 dollar
Packaging Details: 1500mmF*1000mm*2000mm box
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 100 pcs per week

Single Channel Portable Data Acquisition Module

Channels: 1 Voltage Range: 0-10V
Current Output: 0~20mA 4~20mA Watchdog Timer: System(1.6second)
Power Requirement: 10-30VDC Temperature (Operating): -10~70 °C (14~158 °F)
Temperature (Storage): -25~85 °C (-13~185 °F)
High Light:

DC15V Portable Data Acquisition Module


20mA Portable Data Acquisition Module


20mA delta analog input module

1 Channel AO Analog Output Module


Product Introduction


Analog output module receives the request of the host signal, the data will be sent via the RS - 485 network according to the required format out the format of the data with the percentage of full scale engineering unit of binary complement (FSR), depending on the module configuration as independent of the DAC (digital to analog converter), so can provide microprocessor with analog output signal back to read function if ADC measured data and to output data, is said to be output analog is transformation so that we can easily detect caused by wrong connection or the expected load the output of the faultAnalog output modules provide single channel voltage or current output. They provide 3000VDC isolation protection to the ground circuit, ensuring that your instrument is free from vibration and surge hazards.



Main Features


  • Output type: mA, V
  • Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 10 V
  • Isolation voltage: 3000 V DC

Analog Output


Channels 1
Voltage Range 0~10V
Current Output 0~20mA 4~20mA




Watchdog Timer System (1.6 second)
Connector 2 x plug-in terminal block (#14~22 AWG)
Temperature (Operating) -10~70 °C (14~158 °F)
Humidity 5~95 %RH
Temperature (Storage) -25~85 °C (-13~185 °F)
Interface RS-485
Isolation Protection 3000 VDC
Communication Protocol ASCII command
Communication Speed Serial: From 1,200 to 115.2 k
Comm. Distance Serial: 1.2 km
Data Flow Control Yes
