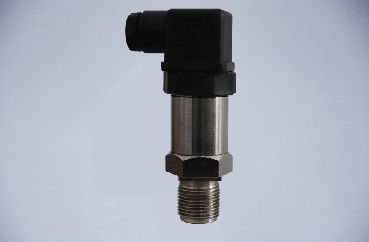

Wide Range IP65 20mA High Precision Pressure Sensor

Wide Range IP65 20mA High Precision Pressure Sensor
Wide Range IP65 20mA High Precision Pressure Sensor

Large Image :  Wide Range IP65 20mA High Precision Pressure Sensor

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: SLYL-FD-xx
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: USD 750 dollar
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 50 pcs per month

Wide Range IP65 20mA High Precision Pressure Sensor

Model: SLYL-FD-0.5/1/A/12-M20x1.5 Accuracy Class: 0.5%FS
Range: - 0.1 ~ 0Mpa Output Signal: 4-20mA
Power Supply Voltage: +12VDC Process Connection: M20x1.5
Temperature Resistance: -20-300℃ Explosion-Proof: Ex Ia IIC T6 Ga
High Light:

20mA High Precision Pressure Sensor


IP65 High Precision Pressure Sensor


IP65 pressure sensor arduino

SLYL-FD 300 ℃ High Temperature Explosion Proof Pressure Sensor


Product description


SLYL-FD explosion-proof high-temperature pressure sensor / transmitter adopts diffusion silicon sensitive piezoresistive element and cast aluminum explosion-proof shell. It can measure high-temperature gas or liquid within 300 ℃. It has adjustable zero point and full-scale as well as strong anti-seismic, shock resistance and long-term stability, The series of products are widely used in fuel, oil field, mine, chemical, electric power, boiler, metallurgy and other fields.





  • High precision diffused silicon pressure element with high precision and good stability is adopted.
  • High sensitivity, strong overload capacity
  • Wide range, convenient installation, meet different site requirements



Application area


Engine testing, construction machinery, molding machinery, online pressure detection, aerospace, hydraulic and pneumatic equipment, constant pressure water supply, medical equipment and other fields.



Technical parameter


  • Range: - 0.1 ~ 0Mpa, - 0.1 ~ 0.1... 1MPa,0~2kPa......30MPa
  • Accuracy: 0.5% FS
  • Measuring medium: liquid, gas or steam compatible with 316L stainless steel
  • Output signal: 4-20mA, 0-5V, 0-10V
  • Power supply voltage: + 12VDC, + 24VDC
  • Process connection: m20x1.5, G1 / 2, G1 / 4, 1 / 2NPT 1 / 4NPT, M14x1.5 (others can be customized)
  • Load capacity: current type ≤ 500 Ω
  • Compensation temperature: 0-85 ° C
  • Operating temperature: - 20-300 ° C
  • Safety: 150% overload capacity
  • Ultimate overload capacity: 200%
  • Temperature drift: 0.02% FS / ℃
  • Long term stability: 0.2% FS / year
  • Protection grade: IP65





Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
