SSCG350-4000/8000 8000rpm 0.2%FS AC Dynamometer Used for High Speed Motor of Car

SSCG350-4000/8000 8000rpm 0.2%FS AC Dynamometer Used for High Speed Motor of Car


Applications

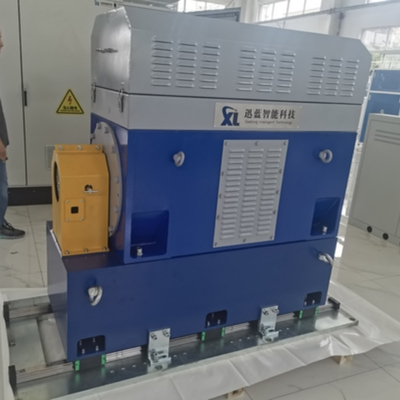

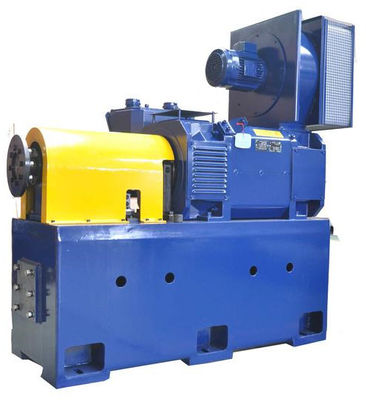

SSCG350 Series dynamometer is a special test equipment with high speed. The main task is to apply the load to the motors,high speed engine. etc. The dynamometer also has the function of driving the test piece.

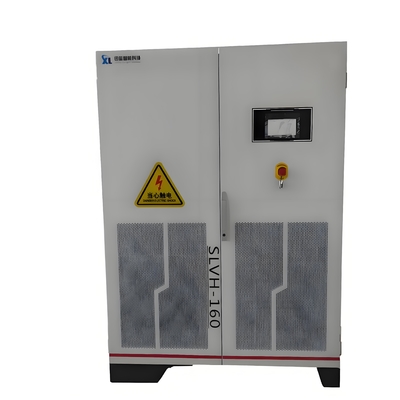

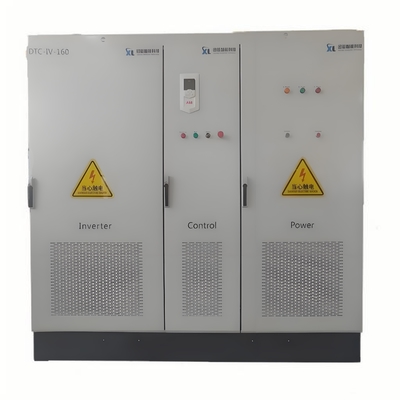

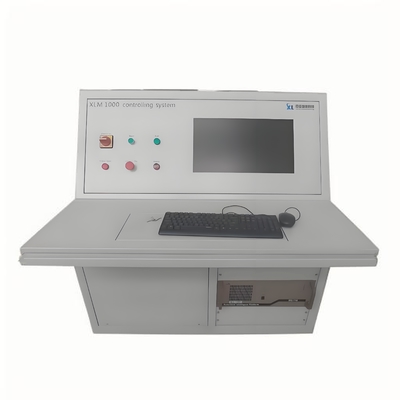

Its main purpose is to test the performance of Vehicle motor, turbine and High speed gearbox. These samples have the characteristics of High speed  output. SMHM realizes the accurate control of speed and torque through the efficient inverter system, and all test operations can be completed by computer control commands. At the same time, the high-speed data communication module makes the system have high real-time performance. SMHM Series dynamometer has the characteristics of small volume, small moment of inertia, low speed torque output and high dynamic response.


Benefits at a Glance

• Fast return on investment thanks to highly effi cient energy recovery
• Low installation coststhrough compact cabinet dimensions and optimized mains requirements
• High reliability due to robust motors
• Best-in-class torque measurement accuracy and temperature stability

Technical Features (350KW)

• Torque flange range (nm): 0-1000
• Host model: SSCG350 - 4000/8000
• Motor brand: Seelong
• Rated power (kw): 350
• Rated speed (RPM): 8000
• Constant torque speed range (RPM): 0-4000
• Constant power speed range (RPM): 4000-8000
• Maximum speed (RPM): 8000
• Rated torque (nm): 682
• Torque measuring device: SEELONG
• Accuracy class: ± 0.2% FS
• Encoder: HBM, Germany
• Encoder type: HTL / 1024

Specifications (Can be customized)

FAQ

Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcomed to have a visit.
