Product Details:
|
| Measuring Range: | 200Nm | Accuracy Class: | 0.2% |
|---|---|---|---|
| Working Speed: | 0-10000rpm | Overload Capacity: | 120% |
| Response Frequency: | 500 μ S | Lag: | <0.1% |
| Relative Humidity: | <90%RH | Temperature Range: | -10-70℃ |
| High Light: | 200Nm Flange Torque Sensor,0.2%FS Flange Torque Sensor |
||

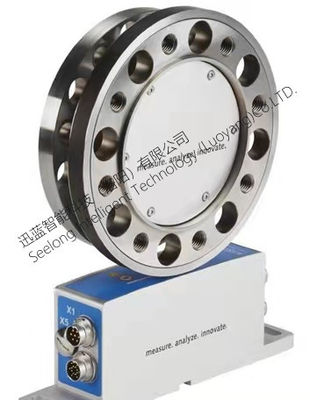

SLFN 200nm 0.2%FS Economical Torque Flange
SLFN 200Nm 0-10000rpm 0.2%FS economical torque flange for engine
Torque sensors
Flanged torque sensors have the characteristics of conventional torque sensors, but also have a system self-detection function, when used in torque measurement, this feature has a huge advantage.
The small axial dimension of the flange torque sensor is a great advantage, allowing it to be used in a wide variety of measuring environments and in a wide variety of measured components.
Product features
Thin, bearing free, high precision, firm
High precision, optional frequency or voltage signal output
The axial dimension is very small
Compact flange-flange connection design
Digital non-contact signal transmission
Bearing less, no maintenance required
System self - check function
Technical parameter
|
Measuring range |
0±50N.m ±100N.m ±200N.m ±500N.m ±1000N.m ±2000N.m ±5000N.m ±1 万 N.m |
||
|
Output signal |
5-15KHZ 0-10V 4-20mA |
Overload capacity |
120% |
|
Accuracy |
0.5% 0.2% |
Power supply |
24VDC |
|
Optimum operating Speed |
0-15000 rpm
|
Response frequency
|
500μs |
|
Insulation resistance |
＞200MΩ |
Zero drift
|
＜0.5% |
|
Repetitive |
＜0.1% |
Linear |
＜0.1% |
|
Lag |
＜0.1% |
Environment temperature |
-40-60℃ |
|
Relative humidity |
＜90%RH |
Temperature range |
-10-70℃ |
|
Amplitude of transmitter |
10V |
Storage temperature range |
-25-80℃ |
|
Transducer power consumption |
≈4W |
Sensor current consumption |
100MA |
|
Sensor shell
|
Strong anodized aluminum |
The response time of the strain gauge dynamic strain wave |
3.2X10-6s |
Layout
