10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test

10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test
10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test 10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test

Large Image :  10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test

Product Details:
Place of Origin: Luoyang China
Brand Name: SeeLong
Certification: CMC
Model Number: SLZN-10000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2457 dollar
Packaging Details: 500mmF*300mm*300mm wooden box
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 20 pcs per month

10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test

Description
Measuring Range: 10000N.m Accuracy Class: 0.5%FS
Working Speed: 0-5000rpm Overload Capacity: 150%
Interface: RS485/RS232 Power Supply: ±12V DC
Use Temperature: - 20 ℃ - 50 ℃ Signal Type: 0-10VDC(Optional)
High Light:

10000N.M Dynamic Torque Sensor

,

SLZN Axis Dynamic Torque Sensor

SLZN - 10000 Axis Dynamic Torque Sensor 10000N.m 0.5%FS High Speed Torque and Rotational Speed Measurer





Product introduction



SLZN series torque and speed sensor is a new generation sensor carefully designed by our company, with independent intellectual property rights. The product adopts the field bus design technology and advanced and practical equipment networking function, which can make the product suitable for a wider range of industrial sites, and make a number of torque detection quickly and conveniently realized in various industrial control and measurement systems. It is an integrated product which is based on the resistance strain as the sensing element and integrated circuit.This product adopts the non-contact transmission mode, is the use of wireless power supply and wireless output in the form of the working principle of dynamic torque measurement to solve some of the shortcomings of other measurement methods.Torque sensors can be applied in the manufacture of viscometers, electric (pneumatic, hydraulic) torque wrench, it has the advantages of high accuracy, fast frequency response, good reliability, long life and so on.





Application


          1.Testing the output torque and power of motor, engine, internal combustion engine and other rotating power equipment
          2.Test the torque and power of fan, water pump, gear box and torsion plate
          3.Railway locomotives, automobiles, tractors, aircraft, ships, mining machinery torque and power testing
          4.Can be used in the sewage treatment system torque and power detection;
          5.Can be used in the manufacture of viscometers
          6.Can be used in process industry and process industry
          7.Can be used in laboratories, testing departments and production monitoring and quality control





Technical parameters



Item Parameters
Model SLZN
Torque range 0±10KN.m(optional)
Torque output 5-15KHZ,0±10V,0±5V,0-10V,4-20mA
Speed output 60 pulse/r,4-20mA
Speed range 0-5000 r/min
Measurement accuracy 0.5%
Response frequency 500μs
Supply voltage 24VDC
Overload capacity 150%
Zero drift <0.5%
Environmental temperature -40℃-80℃
Relative humidity <90%RH
Work amplitude 10V
Surface treatment Anodic treatment
Sensor material alloy steel/stainless steel/aluminum
Sensor power consumption 4W





Main Features


●Both static torque and dynamic torque can be measured.
●Can measure forward and reverse torque, speed and power.
●No necessary to adjust zero point when measuring forward and reverse torque.
●Torque measurement accuracy is independent of rotation speed and direction.
●Signal using digital technology, strong anti-jamming.
●Input power polarity, output torque, speed signal protection.
●There is no wear parts such as collector ring, so it can run at high speed for a long time.
●High precision and good stability.
●Signal output can be arbitrary choice of waveform - square wave or pulse wave.
●Small size, the sensor can be used independently from the secondary instrument, as long as the socket pin number is provided
24VDC (200mA) power supply, can output equal square wave impedance proportional to the torque or pulse impulse wave frequency signal.Light weight and easy to install.
●High reliability and long service life.
●It can be installed in any position and in any direction.



10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test 0

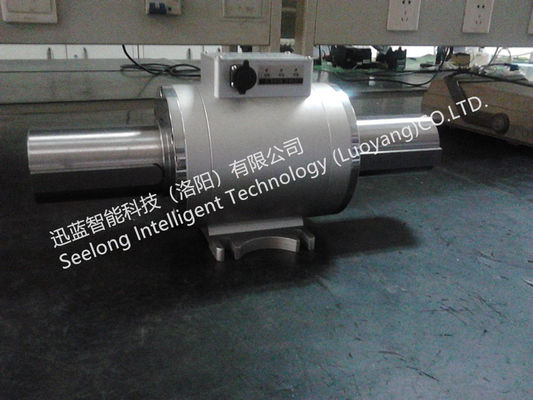

Outside view





10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test 1

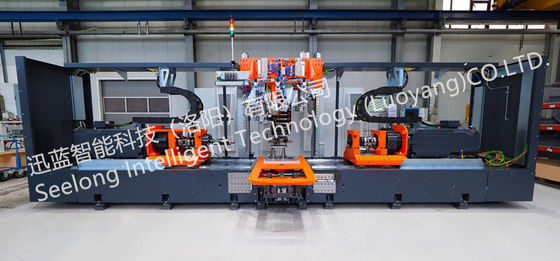

Installation Instruction



Placement: Connection between torque sensor and power equipment and load equipment



10000N.m 0.2%FS SLZN Axis Torque Sensor For Motor Engine Gearbox Test 2
