5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing

5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing
5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing

Large Image :  5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing

Product Details:
Place of Origin: China Luoyang
Brand Name: SeeLong
Certification: CMC
Model Number: SLZN-5000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: 1500mmF*1000mm*2000mm wooden box
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 20 pcs per month

5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing

Description
Measuring Range: 5000Nm Accuracy Class: 0.2%FS
Working Speed: 0-5000rpm Overload Capacity: 150%
Interface: RS485/RS232 Power Supply: ±12V DC
Use Temperature: - 20 ℃ - 50 ℃ Signal Type: 0-10VDC(Optional)
High Light:

Shaft Type Static Torque Sensor

,

5000Nm Static Torque Sensor

,

10000rpm Static Torque Sensor

5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing



Product introduction



SLZN-5000 torque and speed sensor uses high-quality bearings for high-speed continuous operation and a precision encoder for measuring the Angle of rotation. In addition to the detection of torque speed, it is characterized by the ability to measure the rotation Angle of the sensor shaft. The sensor is manufactured to ensure a certain accuracy, and the appropriate reading components can be combined to achieve a higher accuracy. In addition, this series of sensors compact structure, high reliability, strong stability. Therefore, it has been widely used in space technology, NUMERICAL control mechanical system and so on.



Speed measurement is divided into:



1. The photoelectric and code disk principle is used in high speed measurement.

2. When measuring angle, displacement and low speed, the incremental encoder principle is used to design, which has high accuracy, stable and reliable performance and long service life.





Specifications (Can be customized)





Model Torque(Nm) Max.Torque(Nm) Rated Speed(rpm) Speed Measurement Accuracy Torque Measurement Accuracy
SLZN5000 5000 7500 5000 1/60rpm 0.2%FS
SLZN10000 10000 15000 5000 1/60rpm 0.2%FS
Can be customized

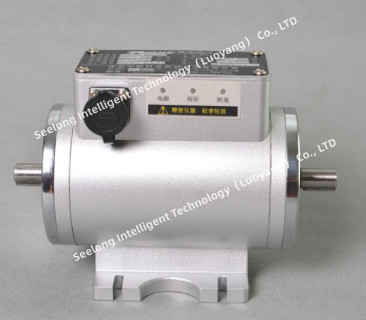

Outside view

5000Nm 10000rpm 0.2F.S SLZN-5000 Shaft Type Static Torque Sensor For Testing 0



Technical parameters:



  • Power supply: ± 12VDC, current > 0.3A
  • Application environment: temperature: - 20 ℃ - 50 ℃  Humidity: ≤ 90% RH  Atmospheric pressure: 90-106kpa
  •  Overload capacity: 150% F.S
  • Inaccuracy: 0.1% F.S
  • Repeatability: 0.1% F.S
  • Linearity: 0.1% F.S
  • Lag: 0.1% F.S
  • Analog signal output: zero torque: 10kHz
  • Forward full scale: 15KHz
  • Reverse full scale: 5KHz
  • Speed measuring gear: 60, 120, 600 or 1024 pulses per circle.
  • Digital bus interface: RS232 or RS485





Function Description



  • The performance and installation dimension of the product are fully compatible with the corresponding sensors of SLNJ-Z series, and the user does not need to change too much design to replace the product.
  • Data sampling time can be as fast as 1 ms, and can be set between 1-1000 MS as needed.
  • Using advanced measurement algorithm, the measurement error of data signal can be reduced to ± 1Hz.
  • Through the digital bus interface signal, the measured value of torque and speed is directly transmitted to the computer and other network control equipment.
  • The bus data communication has CRC data verification function, and the reliability of data transmission is high.
  • The measured parameters can be remotely modified by computer and other control equipment, and the parameters can be completely saved after power failure.
  • It has a variety of intelligent functions, such as overload alarm, fault detection, status indication, etc.
  • Long distance data transmission can be realized through digital bus interface.
  • The function can be upgraded continuously without other hardware cost.
