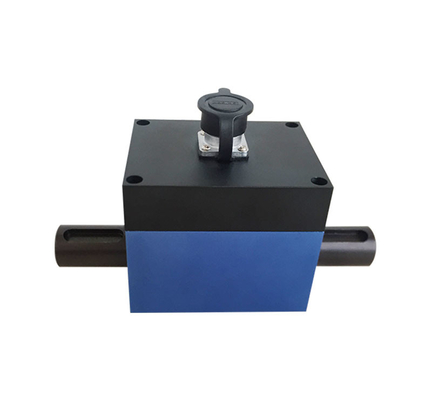

SLZN20 10000rpm 0.2f. S Seelong Customized Shaft Type Static Torque Sensor for Testing

Product description

Slzn-20 dynamic torque sensor is a non-contact high-speed rotation sensor, also known as torque speed sensor, because of its high measurement quality and low linear error, sensor has been in the advantage of torque measurement products. The SLZN-20 torque sensor adopts a non-contact design and is suitable for long time rotational torque measurement and high speed rotational torque measurement environments due to the absence of wearing parts. The SLZN-20 torque sensor is a good choice for testing systems on production lines or test stands or on test machines.

Product features

1. The power supply and signal transmission are non-contact.

2. No bearing, wide range of speed.

3. The connection with power shaft and load shaft is rigid connection.

4. It is convenient to install and debug. The radial runout of the user's shaft is less than 0.05mm, and the axial movement is less than 0.5mm. The adjusting bolt at the bottom of the sensor can easily adjust the installation clearance.

5. This model has two kinds of output with 485 bus and without 485 bus: standard type without 485 port; bus type with 485 port, USB data line of computer and measurement software of upper computer.

6. This model of products are dynamic balance before delivery, suitable for high speed.

Product characteristics

• Built in digital measurement signal conditioning unit, through contactless transmission, the data is directly output in standard analog or digital signal mode
• Strong anti-interference ability
• The rotor rotates in the stator ring, no mechanical bearing is allowed, so there is no wear.
• 0.5 or 0.1 precision level, optional current, voltage or frequency signal output
• High precision magnetoelectric angle / speed measuring unit, dust and moisture proof
• Parameter identification, setting, measurement and zero balance of sensor are realized through RS-485 interface
• Very small axial size compact flange flange connection design
• Digital non-contact signal transmission, no bearing, no maintenance, system self-test function
