90kw 1000rpm Seelong Customized Hybrid Dynamometer Test Bench for Engine

Large Image : 90kw 1000rpm Seelong Customized Hybrid Dynamometer Test Bench for Engine

Product Details:

Place of Origin:	China
Brand Name:	Seelong
Certification:	CMC
Model Number:	SSCD90-1000/3500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negociated
Packaging Details:	Seaworthy Plywood
Delivery Time:	90 working days
Payment Terms:	T/T
Supply Ability:	3 sets per month

Contact Now

90kw 1000rpm Seelong Customized Hybrid Dynamometer Test Bench for Engine

Description

High Light:

90kw Hybrid Dynamometer Test Bench

Hybrid Dynamometer Test Bench For Engine

1000rpm Hybrid Dynamometer Test Bench

Product description

The transmission test bench is built with a multi-drive system architecture to meet the requirements of drive and load synchronization control and measurement. The system simulates the characteristics of power input and output to complete the drive and load test of the transmission; At the same time, the transmission efficiency of the transmission and transmission system is recorded and converted in real time. Assist users to complete the quality, efficiency and reliability evaluation of transmissions.

Equipment configuration

SSCD series AC dynamometer is the load for dynamic mechanical power test. The standard SSCH/SSCD series AC dynamometer consists of an AC dynamometer, a set of torque and speed measuring sensors, a base and a flange connected to the power machinery. The system should be matched with the DTC series frequency conversion inverter system and together with XLP1000 series control system.

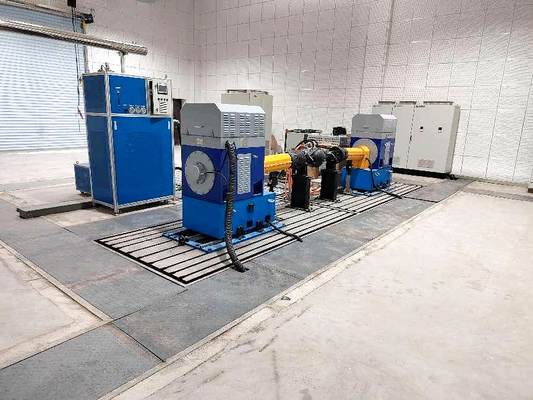

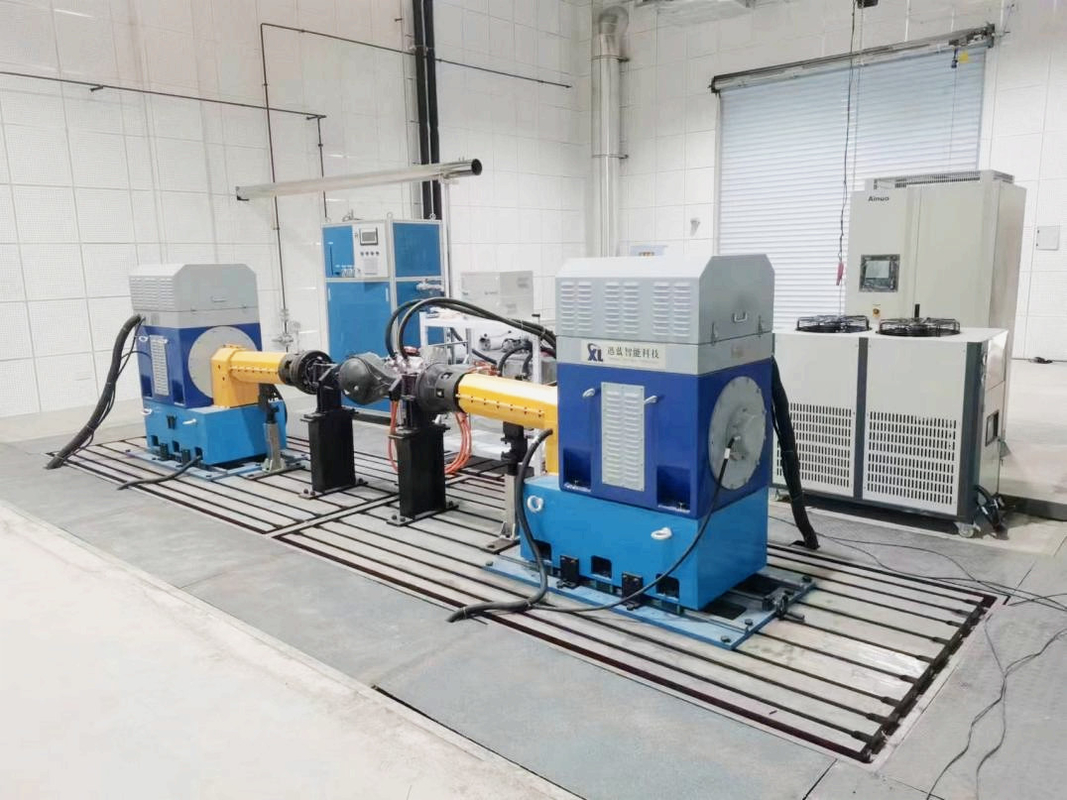

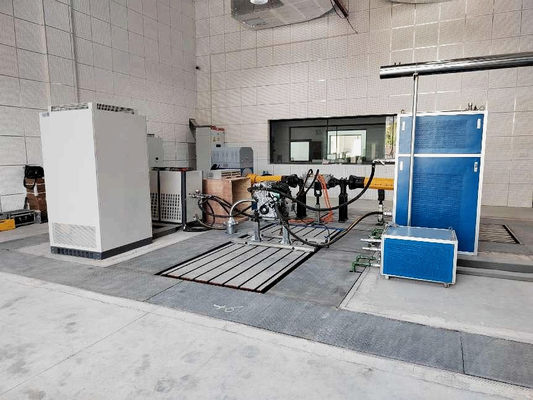

90kw 1000rpm Seelong Customized Hybrid Dynamometer Test Bench for Engine 1

Technical parameters

Model	Power (KW)	Torque (Nm)	Rated Speed ( rpm)	Max Speed (rpm)	Torque Measurement Accuracy
SSCD15-1000/4500	15	143	1000	4000	0.2%FS
SSCD30-1000/4500	30	286	1000	4000	0.2%FS
SSCD45-1000/4000	45	430	1000	4000	0.2%FS
SSCD60-1000/4000	60	573	1000	4000	0.2%FS
SSCD90-1000/3500	90	859	1000	3500	0.2%FS
SSCD110-1000/3500	110	1050	1000	3500	0.2%FS
SSCD160-1000/3500	160	1528	1000	3500	0.2%FS
SSCD200-1000/3300	200	1910	1000	3300	0.2%FS
SSCD250-1000/3300	250	2387	1000	3300	0.2%FS
SSCD300-1000/3300	300	2865	1000	3300	0.2%FS
SSCD30-1500/5000	30	191	1500	5000	0.2%FS
SSCD45-1500/5000	45	286	1500	5000	0.2%FS
SSCD60-1500/5000	60	382	1500	5000	0.2%FS
SSCD90-1500/5000	90	573	1500	5000	0.2%FS
SSCD132-1500/4500	132	840	1500	4500	0.2%FS
SSCD160-1500/4500	160	1019	1500	4500	0.2%FS
SSCD200-1500/4000	200	1273	1500	4000	0.2%FS
SSCD250-1500/4000	250	1592	1500	4000	0.2%FS
SSCD300-1500/3800	300	1910	1500	3800	0.2%FS
SSCD400-1500/3800	400	2546	1500	3800	0.2%FS
SSCD500-1500/3800	500	3183	1500	3800	0.2%FS
