New Energy Motor Test Bench SSCH30 30kw 64Nm Speed Measurement

New Energy Motor Test Bench SSCH30 30kw 64Nm speed measurement

Introduction

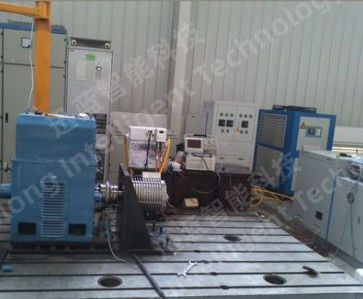

New energy electric vehicle motor test bench is mainly used for conventional performance test, endurance and load test of vehicle new energy motor and its controller, as well as other user development and research test (such as: motor development, testing, comparison and other tests), in order to meet the needs of its electric vehicle project development. The test bench can complete the performance test of the motor used by electric vehicles, provide hardware test guarantee for users' independent research and development, assist users to improve the design scheme, verify product performance, etc.

Technical parameters:
Dynamometer speed measurement and control
Speed measurement and control range: customized speed;
Speed control accuracy: ≤±2 r/min /4000 r/min above,≤±1 r/min /4000 r/min below;
Speed measurement accuracy: ±1r/min;
Dynamometer minimum stable speed ≤10r/min, in stable speed can provide rated torque;
Refresh frequency of the measured speed: ≥ 1 kHz(displayed on the software interface during rapid experiment);
Speed measurement sensor type: encoder (2 phase or 3 phase) or speed channel of sensor (1024 teeth).
Dynamometer torque measurement and control
Torque control accuracy: ≤± 0.2% FS
Torque measurement accuracy: ≤± 0.05%FS;
Refresh frequency of measured torque: ≥ 1 kHz(displayed on software interface during rapid experiment)

Typical Applications:

1. Research on motor performance test and control

2. Motor efficiency evaluation
3. Feed performance evaluation of motor system
4. Motor durability assessment, etc

​

Reference standard

GB 755-2008 rating value and performance of rotating electrical machines
GB / T 1311-2008 test methods for DC motor
GB / T 1032-2005 test methods for three-phase asynchronous motors
GB / T 1029-2005 test methods for three-phase synchronous machines
GB / T 22669-2008 test methods for three-phase permanent magnet synchronous motors
GB / t18488.1-2015 electric motors and controllers for electric vehicles Part 1: technical requirements
GB / t18488.2-2015 motors and controllers for electric vehicles Part 2: Test methods
QC / T 413-1999 basic technical conditions for automotive electrical equipment
GB / t20160-2006 insulation resistance test for rotating electrical machines

Flow Chat

Advantages:
This system automation degree is high, the operation is simple, can complete the test through the software one key, automatically generate test curve, report;
The electric dynamometer can operate in four limits, either as a generator (load), or as a power machine (drive), positive and negative.
Energy saving: the output power of the motor is filtered by the frequency converter and energy feedback unit, and then returned to the grid and supplied to the tested motor.
Good stability of load control, constant speed or torque control, high control precision.
The system has high test precision, good repeatability and star farik.
Test most complete, the system can test the driver input voltage, current, power, drive output voltage, current, power and motor output torque, speed, power and the efficiency of the whole machine, drive efficiency, motor efficiency.
