SSHH45-18000/35000 45kw 23.9N.M Aero Engine Test Bench Turbojet Engine

SSHH45-18000/35000 45kw 23.9N.M Aero Engine Test Bench Turbojet Engine
SSHH45-18000/35000 45kw 23.9N.M Aero Engine Test Bench Turbojet Engine

Large Image :  SSHH45-18000/35000 45kw 23.9N.M Aero Engine Test Bench Turbojet Engine

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SSHH45-18000/35000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Confidential
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

SSHH45-18000/35000 45kw 23.9N.M Aero Engine Test Bench Turbojet Engine

Description
Speed Range: 18000-35000 Torque Range: 23.9
Torque Control Accuracy: 0.2%FS Pressure Measurement Accuracy: 0.2%FS
Temperature Control Accuracy: 1℃ Air Flow Accuracy: 0.1%FS
High Light:

Turbojet Aero Engine Test Bench

,

23.9N.M Aero Engine Test Bench

,

45kw Aero Engine Test Bench

SSHH45-18000/35000 45kw 23.9N.m m 35000rp Aero engine test bench Turbojet Engine



Summary of the equipment

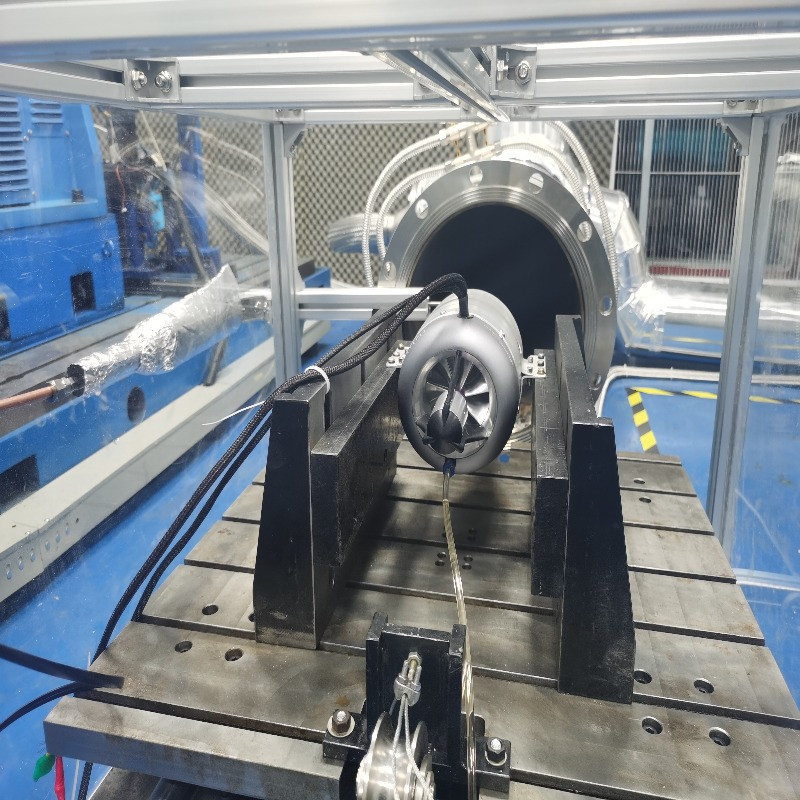

This equipment is a miniature turbojet engine test bench, which is designed to be a general test bench for aviation turbojet engine and meet the test requirements of high transient and transition states of aviation power system. The test bench mainly completes the speed characteristics (throttle characteristics) and other related performance tests of turbojet engine.



  • The system can be designed as a modular system.
  • Forms a standard test bench after rapid combination, and at the same time, can be quickly split, function recombined, etc.
  • The system functions are reasonably partitioned; System functional areas: measurement and control system area, data collection area, oil supply and fuel consumption measurement area, engine performance test area, equipped with engine smoke exhaust pipeline, to meet the normal test requirements of the engine.



Specifications

  • Thrust measurement range: 0-200kGF, measurement accuracy: 0.2%FS (2‰)
  • Signal acquisition frequency: 0-100khz (100000Hz), 16 channels, signal acquisition type: 4-20mA, accuracy: 0.1%FS (1‰)
  • Speed measurement range: 0 ~ 200000rpm, measurement accuracy: 0.1%FS
  • Exhaust temperature measurement range: 0 ~ 1300℃, accuracy: ±2℃
  • Fuel flow measurement range: 0 ~ 5000g/min, accuracy: 0.5%FS (5‰)
  • Oil pressure measurement range: 0 ~ 2.5mpa, accuracy: 0.25%FS (2.5‰)
  • Atmospheric pressure measurement: 0-120kpa, accuracy: 0.25%FS (2.5‰)
  • Ambient temperature measurement: -40--+200℃, accuracy: ±0.2℃



Basic Configuration Table



NO. Name
1 Turbojet engine
2  Turbojet mounting platform
3  Measurement and control system
4  High frequency data acquisition system
5  Data acquisition sensor and equipment
6 Oil supply system
7  Engine exhaust system
8 Bench cabinets





SSHH45-18000/35000 45kw 23.9N.M Aero Engine Test Bench Turbojet Engine 0
