SSCD160-1000/3000 160KW 1528Nm 3500rpm Automatic Transmission Test Bench

SSCD160-1000/3000 160KW 1528Nm 3500rpm Automatic Transmission Test Bench

Introduction

The improvement of transmission efficiency and reliability is the biggest challenge of powertrain development. Compared to existing transmissions, tuning and optimization of transmission efficiency and drivability enhancements are necessary. Therefore, the durability and performance of automatic transmissions, manual transmissions and rear axle gearboxes should be tested.

Design

The power adopts 160KW variable frequency motor, and the load also adopts 160KW variable frequency motor (customized)
Using the power feedback loading method can save 50~70% of the electric energy.
The load motor amplifies the loaded torque by 5 times through the planetary reducer (speed-up gear), ≈ 5100N.m
A 5000N.m torque and speed sensor is installed at the output end of the gearbox, and the torque, speed, and power output by the gearbox are collected by the TR-3S torque, speed, and power collector.
The temperature acquisition instrument can collect 4-way temperature, the temperature sensor is a magnet adsorption type, and the threaded type can also be customized according to customer requirements.
The air tightness tester measures the tightness of the gearbox case.
The large platform is installed to process multiple T-slots, which is convenient for the test of different types of gearboxes.
The mechanical structure is:

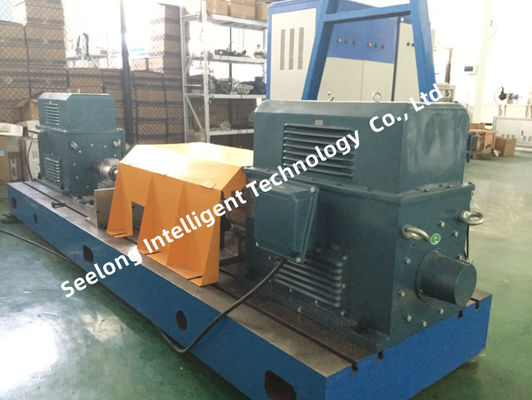

Active motor - transition seat - universal joint - tested gearbox - universal joint - transition seat - torque speed sensor - planetary reducer - load motor
The structure of the strong electric cabinet is:
Active inverter - load inverter
Detection cabinet configuration:
Industrial computer - liquid crystal display - torque speed power acquisition instrument - temperature acquisition instrument - air tightness detector - testing software

2D model

FAQ

Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.
