|Rated Power:||45kw||Rated Torque:||286Nm|
|Constant Power Range:||1500-5000rpm||Max Working Speed:||5000rpm|
|Measurement Accuracy:||0.05%||Constant Torque Range:||0-1000rpm|
SSCD45 Diesel Engine Test System,
4000rpm Diesel Engine Test System

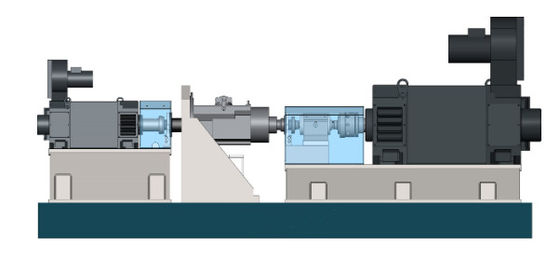

Transmission and diesel engine test system stand SSCD45 45KW 430Nm 4000rpm
The test bench can be used for new energy passenger vehicle transmission or hybrid box and assembly machinery development, controller debugging, performance or reliable durability test; In the transmission system of the automobile industry, the performance and quality of the transmission must be ensured in the product development and factory inspection of the transmission. Therefore, it is particularly important to carry out strict testing on the performance of the transmission.
Main technical indicators
50 kw power
Short 500 nm / 4750 RPM
The maximum speed is 8000rpm
Moment of inertia 0.15 kg. M ^2
Cooling mode Water cooling
Loading motor (single-end index, both ends are exactly the same, can be reconfigured according to project requirements)
Rated power 422kW
Rated torque short 3504Nm
Base speed 1150rpm
Power reduction Speed 2300RPM
The maximum speed is 3300RPM
Moment of inertia 6.30 kg. M ^2
The SeeLong E-Motor test beds are used for analyzing and determining electrical, mechanical, thermal and acoustic properties. Functionality, reliability and durability tests and cold start performance measurements can be implemented under realistic conditions. The integrated SeeLong TCM automation system allows for fully automatic runs, so time and cost-efficient test ones for aII relevant test procedures.
All measurement data is saved with a uniform time stamp and can be processed further with the data post processing tool, The optional integration of the “Virtual Proving Ground” technology based on SeeLong SLM also offers a virtual development and test environment to implement integration, optimization and validation tasks even on the test bed.
The test specimen is (by means of simple parameterization) integrated in a virtual vehicle environment and tested systematically with reproducible, realistic driving maneuvers. Control units within the vehicle can be emulated in SeeLong SLM or connected as real devices to SeeLong SLM.
To perform test runs under realistic environmental conditions, SeeLong SE-Motor test beds are equipped with a coolant conditioning system (single- or two-circuit system) for electric motors to be tested, the relevant inverter and, optionally, a climatic chamber which enables environment simulation within the typical temperature and air humidity ranges specified in the European and Chinese testing recommendations.
Different systems of the SeeLong SE-STORAGE product line are available for supplying the unit under test with energy: starting from a bidirectional DC power supply with excellent dynamic behavior, the SeeLong SE-STORAGE Battery Emulator (BE) is capable of realistically emulating the behavior of a vehicle battery, such as discharge or recharge by energy recovery.
Benefits at a Glance
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a professional production of automotive power system test equipment high technology services enterprises. SeeLong is located in the Peony City(famous for peonies) -- Luoyang, which is also the ancient capital of 13 dynasties.
Why Choose Us
After years of development and accumulation, the company has become a well-known powertrain test equipment production enterprises. Specializing in engine test, transmission test, energy storage test, controls and electric motor test and other test equipment research, development and production service. The company has established long-term cooperation with tsinghua university, Shandong university and many other domestic scientific institutions. We have successfully passed the ISO9001 Quality System certification, obtained a dozen of invention patents and two software copyrights. We have provided professional services and equipment for more than 100 users at home and abroad and which is ongoing now and will continue in the future.
Prospect of Cooperation
Friendly cooperation provides you both high quality products and long-term professional after-sales service.
