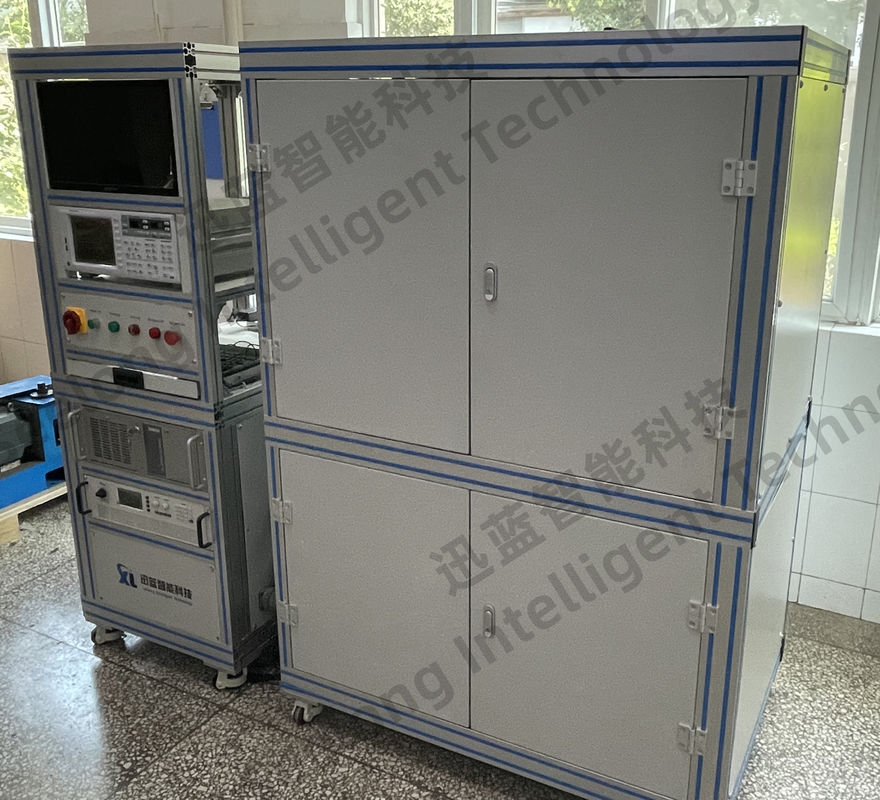

Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm

Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm
Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm

Large Image :  Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm

Product Details:
Place of Origin: China Luoyang
Brand Name: SEELONG
Certification: CMC
Model Number: SSCG350-3000/7500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Confidential
Packaging Details: 1200mmX2000mmX1800mm wooden box per set
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 5 sets per month

Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm

Speed Range: 3000-7500 Torque Range: 0-3000
Torque Control Accuracy: 0.2%FS Temperature Control Accuracy: 1℃
Air Flow Accuracy: 0.1%FS Rated Torque: 1114Nm
Rated Power: 350KW
High Light:

Gasoline Engine Motor Test Bench


1273Nm Motor Test Bench


400KW Dynamic Test Bench

SSCG350 350KW 1114Nm Gasoline engine and motor test bench



Product description

Engine performance test bed is designed for engine fuel consumption, power, heat load and other performance and control strategy verification test, test bed is mainly composed of mechanical part, control part and software part. Dynamometer adopts special low inertia electric dynamometer, the system has high dynamic characteristics, the platform is based on the vehicle dynamics model, can reproduce the engine in the vehicle starting, up (down) slope, increase (decrease) speed, high speed running state. With a high degree of automation; Wide working range and stable performance; Good man-machine interface; Easy to use and maintenance. It is mainly used for automobile engine performance test and control strategy validation test.



1, Test parameters: speed, torque, power, exhaust temperature, oil temperature, oil pressure, outlet temperature, fuel consumption rate
2. Print the test time and the above test parameters in tabular form
3, Parameter display mode: liquid crystal display
4, Automatic control mode: constant position, constant speed, constant torque
5, Control mode switching: no disturbance random dynamic switching
6, Engine speed characteristic test, load characteristic test, external characteristic test
7, Digital set speed, torque value, digital PID automatic control (example: through the instrument digital set torque 2700N.M, dynamometer in 5 seconds automatically loaded to 2700N.m)

Engine overhaul test bench (turnkey project)

Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm 0


Examples for Possible Applications


  •  Steady-state engine testing
  •  Engine mapping
  •  Power measurement
  •  Durability testing
  •  Component testing
  •  Application tests for injection systems and ECU´s
  •  ECU calibration tests
  •  Rapid motion aging tests



Benefits at  a Glance


  • More than 10 years of experience in the development and design of automatic engine test beds and test facilities
  • Proven system functionality used on a day-to-day basis within SeeLong---operated engine development centers all over the world
  • Flexibility due to modular design
  • Highest data quality due to excellent system accuracy
  • Continuous development and enhancement of the test bed for actual and future engineering work


Specifications (Can be customized)



Model Power(KW) Torque(Nm) Rated Speed(rpm) Max Speed(rpm) Torque Measurement Accuracy
SLN15 15 72 2000 9000 0.25%FS,0.05%FS
SLN30 30 143 2000 9000 0.25%FS,0.05%FS
SLN45 45 172 2500 9000 0.25%FS,0.05%FS
SLN60 60 229 2500 9000 0.25%FS,0.05%FS
SLN75 75 247 2900 9000 0.25%FS,0.05%FS
SLN90 90 296 2900 9000 0.25%FS,0.05%FS
SLN110 110 362 3000 8000 0.25%FS,0.05%FS
SLN132 132 435 3000 8000 0.25%FS,0.05%FS
SLN160 160 509 3000 8000 0.25%FS,0.05%FS
SLN200 200 637 3000 8000 0.25%FS,0.05%FS
SLN250 250 796 3000 8000 0.25%FS,0.05%FS
SLN315 315 1003 3000 6000 0.25%FS,0.05%FS
SLN400 400 1273 3000 6000 0.25%FS,0.05%FS

Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm 1Gasoline Engine And Motor Test Bench SSCG400 400KW 1273Nm 2




Q:What’s the minimum order quantity for our cooperation?

A: We support small trail order of 1 pcs for stock products.

Q: How can I learn more about the products?

A: Please leave your email and we will send you your electronic sample book.

Q: What’s your payment term?

A: Normally 30% T/T deposit, pay in full before shipment.

Q:What’s the lead time for my orders?

A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

Q: How do we get the overall solution of the test bench?

A: Leave us your email, our technical staff will communicate with you about the detailed plan.

Q:Can I come to visit your factory?

A: Sure, you are always welcome to have a visit.



About Us


SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a professional production of automotive power system test equipment high technology services enterprises. SeeLong is located in the Peony City(famous for peonies) -- Luoyang, which is also the ancient capital of 13 dynasties.


Why Choose Us


After years of development and accumulation, the company has become a well-known powertrain test equipment production enterprises. Specializing in engine test, transmission test, energy storage test, controls and electric motor test and other test equipment research, development and production service. The company has established long-term cooperation with tsinghua university, Shandong university and many other domestic scientific institutions. We have successfully passed the ISO9001 Quality System certification, obtained a dozen of invention patents and two software copyrights. We have provided professional services and equipment for more than 100 users at home and abroad and which is ongoing now and will continue in the future.


Prospect of Cooperation


Friendly cooperation provides you both high quality products and long-term professional after-sales service.
