The bearing test bench consists of the following equipments: Machine Bed System, Servo Motor Drive Unit, Test Loading System, Bearing Lubricating Oil Circulation System, Test Tools and Electrical and Control Systems.
2) Leakage protection: current type leakage protection, IΔn ≤30mA, operation time ≤0.1s, capacity 10A.
3) Governor: Equipped with AC speed motor governor, to provide adjustable power to the motor.
4) Data collector: A data collector is configured to collect experimental data.
5) Experimental mechanism: including rolling bearing nominal diameter, span, rolling bearing type, movable rolling bearing seat, rolling bearing radial loading device, etc.
6) Sensors: Equipped with multiple sensors, including rolling bearing radial load sensor, total radial load sensor, total axial load sensor, left and right rolling bearing axial load sensor, etc., for measuring bearing performance under different loads.
SYJ-d20-60 10000 rpm Bearing Test Bench Technical Parameters
| Technical Indicators |
Values |
| Number of the bearings tested simultaneously |
2 |
| Inner diameter of the test bearing |
φ20 mm-φ60 mm |
| Outer diameter of the test bearing |
φ100 mm-φ150 mm |
| Maximum axial test load |
0-50 kN, accuracy ±3% (each set of bearings can be loaded according to the mileage) |
| Maximum radial test load |
0 -100 kN, accuracy ±3% (each set of bearings, static loading, load is adjustable) |
| Maximum speed |
100-10000 r/min (speed is adjustable), closed-loop control, control accuracy ±2% |
| Loading mode |
Automatic or manual adjustment mode, pre-programmed load spectrum mode, speed mode |
| Assistant bearings |
Forced lubrication with thin oil
|
SYJ-d20-60 10000 rpm Bearing Test Bench Main Components

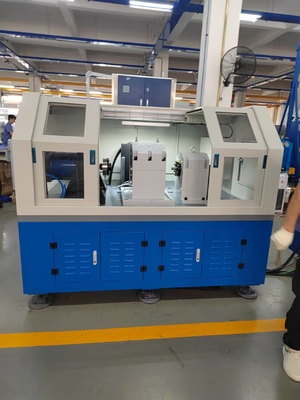

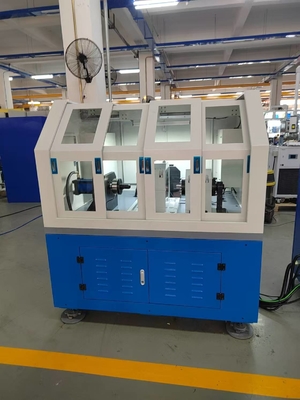

SYJ-d20-60 bearing life test machine mainly consists of a bed, a test body, a drive system, a loading system, a lubrication system, an air cooling system, an electrical control system, and software, as shown in Figure 1.
Figure 1 (Overall configuration of the railway bearing test bench)
1) Matrix
The Matrix, regarded as the base of the railway bearing test bench, is made of ductile iron, which can ensure the stability of the test bench in high-speed rotation and large load operation.
2) Test bench body
The test bench body is the core part of the railway bearing test bench, and its structure is the key to the railway bearing test bench technology. The test bench body consists of a loading device, a test shaft system, a test bearing, a loading mechanism, etc.
Figure 2
Test Bearing Tooling
3) Drive system
The driving motor adopts a servo motor, which adopts speed closed loop control. The motor transmits speed and torque to the test spindle. The motor power is 37kW, and the motor characteristic curve is as follows.
Meet the test characteristics: Motor control speed range 100～±2000 rpm.
Servo motor characteristic curve

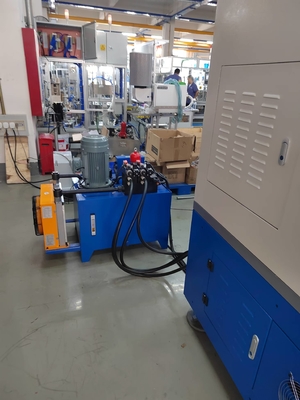

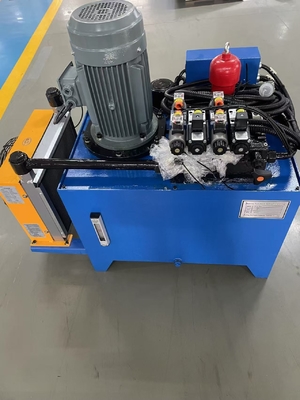

4) Loading system
The loading system adopts a hydraulic servo valve closed loop mode. The hydraulic loading system will be placed outside the test bench body, which is convenient for maintenance and heat dissipation. The hydraulic loading system is an important part of the electro-hydraulic closed loop servo loading system.
5) Lubrication system
The lubrication system is the equipment bearing lubrication system. To meet the lubrication requirements for the equipment bearings, the lubrication system should be equipped with supply and return oil pumps.

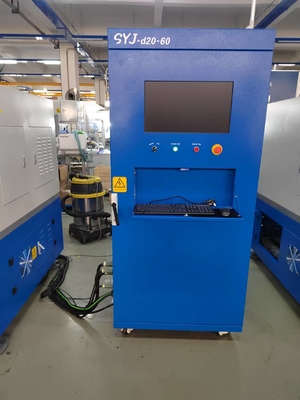

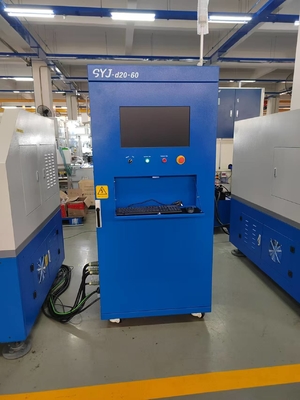

6) Control system and electrical parts
The control system consists of Omron programmable controller, programmable control terminal, frequency conversion drive unit, various sensors (temperature, speed, pressure, vibration) acquisition units, motors, etc.
7) Air cooling system
The axial flow fan uses the ultra-low noise axial flow fan produced by Texas Asia Pacific Group Co., Ltd., YTCZ-6.3F, with an air volume of 15800 m3/h, a wind speed of 10m/s, and a controlled air supply speed.
SYJ-d20-60 10000 rpm Bearing Test Bench Application Areas
Covering bearing manufacturing and industries with high requirements for bearing reliability: bearing production (R&D, quality inspection), automobiles (wheel hub/gearbox bearings), aerospace (engine bearings), rail transportation (wheelset bearings), construction machinery (heavy-load bearings), wind power (spindle bearings), precision machine tools (spindle bearings), etc.
